    Detailed Product Description
    Series: SVA Series Body Material: Stainless Steel
    Motion Pattern: Single Acting/Double Acting Product Name: Angle Seat Piston Valve
    Type: Two Position Two Way
    High Light:

    Pneumatic Valve

    ,

    Water Solenoid Valve



    DN10~DN80 Stainless Steel Piston Angle Seat Valve With Stainless Steel Actuator

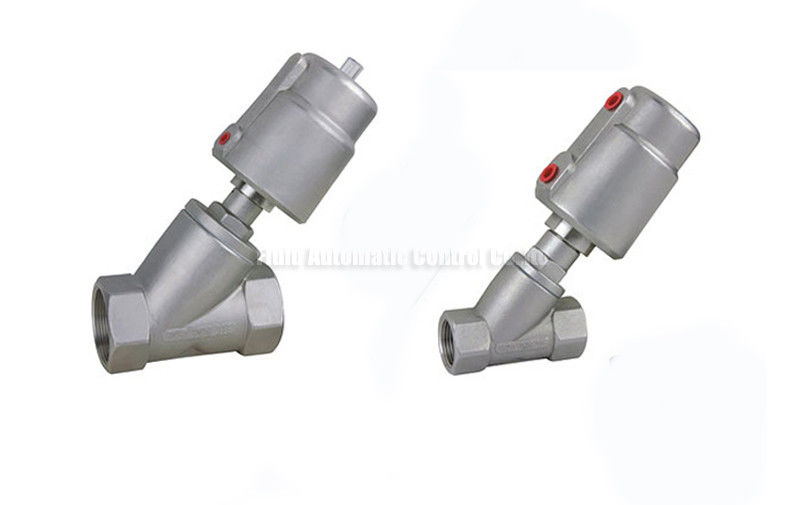

    SVA Series angle seat piston valve with stainless steel actuator two position two way single acting or double acting DN25mm





    Quick Detail:



    * SVA Series Angle seat piston valve interchangeable
    * Two position two way,External pilot-operated
    * DN10mm,DN15mm,DN20mm,DN32mm,DN40mm,DN50mm,DN65mm,DN80mm
    * Body Material stainless steel 304 or Stainless steel 316
    * Actuator material stainless steel 304
    * Easy for mounting,actuator can be 360°turnable
    * Downstream installing and Upstream installing both available
    * Fast respond,low noise,low consumption
    * Stable design,External pilot-operated for long serive life and no need for maintenance



    Applications:



    SAV Series angle seat piston valve external pilot-operated,with Y shape angle type design big flow and long service life.
    SAV series angle seat valve used widely used to control work medium flow rate,it can be apply to high temperature and strong corrosion environment.
    SAV series valve widely used in the Environment protection,textile,medical equipment,food industrial etc



    Specifications:




    ORDERING CODE

    SVA

    15

    1

    S

    NC

    Type

    DN  and Port Size

    Body Material Code

    Motion Pattern And Mounting

    Initial State

    SVA:SVA Series Angle seat piston valve with Stainless steel actuator

    10:G3/8"

    1:Brass

    S: Single Acting

    NC:Normal Closed

    15:G1/2"

    20:G3/4"

    25:G1"

    2:Stainless Steel 304

    D: Double Acting

    32:G1-1/4"

    40:G1-1/2"

    NO:Normal Open


    SPECIFICATION



    Body material:S.S316/S.S304/Brass
    Actuator material:S.S304
    Seat seal:PTFE/FPM
    Stem seal:PTFE/FPM
    Piston seal:FPM/NBR
    Technical parameter
    Connection size:DN10—DN80
    Thread:3/8"—3"
    Applicable medium:water, neutral gas or liquid, alcohol, oil, organic solvent, steam, lye and weak acid solution.
    Temperature of medium:PTFE:-10℃—+200℃
    FPM:-10℃—+100℃
    Viscidity:max600mm2/s
    Downstream installing/Upstream installing
    Controlling medium:air/neutral gas
    Controlling pressure:0.3—0.8MPa
    Working pressure:0—1.6MPa
    DN10~DN80 Stainless Steel Piston Angle Seat Valve With Stainless Steel Actuator 0



    DN

    RC

    L

    L1

    SW

    H

    D

    Actuator

    10

    3/8"

    55

    17

    21

    120

    51

    40

    15

    1/2"

    70

    21

    26.5

    138

    51

    40

    20

    3/4"

    76

    23

    32

    154

    62

    50

    25

    1"

    90

    25

    40

    168

    62

    50

    32

    1-1/4"

    116

    32

    50

    200

    76

    63

    40

    1-1/2"

    116

    32

    55.5

    215

    92

    80

    50

    2"

    138

    40

    68.5

    230

    92

    80

    65

    2-1/2"

    168

    51

    85

    268

    117

    100/125

    80

    3"

    192

    54

    100

    325

    140

    100/125

    PARTS LIST



    2.01 bolt

    3.1 body

    4.1 spring

    2.02 orifice plate seal

    3.2 seal ring

    4.2 piston

    2.03 seal disc

    3.3 screw connector

    4.3 O ring

    2.04 disc

    3.4 cylinder

    4.4 bonnet

    2.5 stem

    3.5 observation window

    4.5 O ring

    2.6 V sealing



    4.6 bearing rin

    2.7 spring
