| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | 2S160-15-AC220V |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD10-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 10000 Pieces Per month |

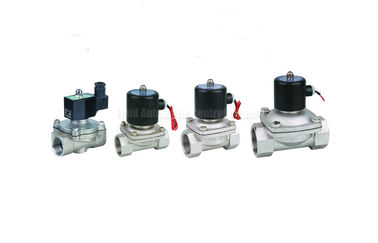

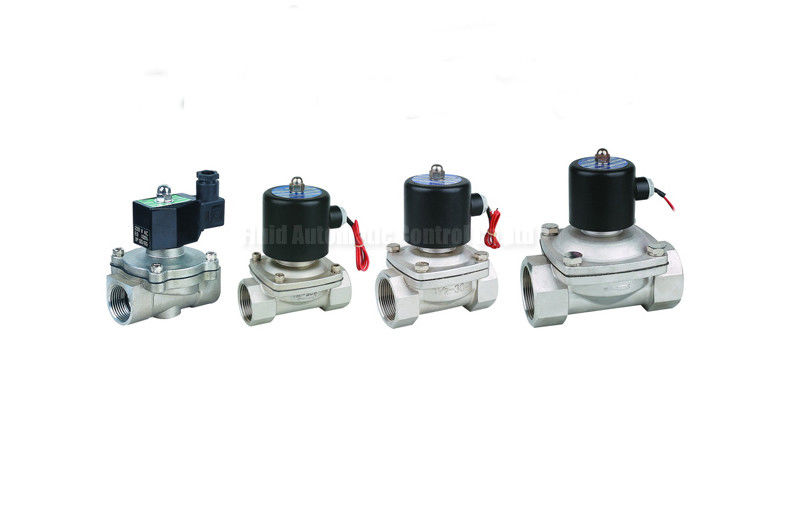

Stainless Steel Solenoid valve two position two way,port size G1/8"~G2"
Orifice size 3mm,4mm 16mm,20mm,25mm,35mm,40mm,50mm 2S series solenoid valve direct acting body material Stainless steel
Quick Detail:
* 2S series Stainless steel solenoid valve Aperture flow size 3mm,4mm 16mm,20mm,25mm,35mm, 40mm, 50mm
* Two position two way directly acting
* Body stainless steel
* Port Size G1/8”,G1/4” G3/8,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”
* Seal with NBR,EPDM,VITON For Option
* Water-Proof coil or explosion-proof available
* Fast respond,low noise,low consumption
* Stable design,long serive life
Applications:
2S series two position two way solenoid acting as on and off switch function automatically for its working system by the involving of power electricity magnetic.
2S series widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.
Specifications:
|
ORDERING CODE |
||||||
|
2S |
160 |
15 |
NC |
S |
E |
AC220V |
|
Type |
Aperture Flow Rate |
Port size |
Initial State |
Coil type and Mounting |
Seal Material |
Voltage |
|
2S:2S Series Stainless Steel Two Position Two Way Solenoid valve |
030:3mm |
G1/8" |
NC:Normal Close |
F:Flange Type |
Blank:NBR |
|
|
040:4mm |
G1/4" |
|
||||
|
160:16mm |
10:G3/8" |
Blank:Round Coil |
DC12V |
|||
|
15:G1/2" |
A:Water-Proof |
E:EPDM(For Steam) |
||||
|
200:20mm |
20:G3/4" |
DC24V |
||||
|
250:25mm |
25:G1" |
NO:Normal Open |
H:Manual Operator |
AC110V |
||
|
350:35mm |
35:G1-1/4" |
S:Square Coil |
V:VITON (For High Temperature and Vacuum) |
AC220V |
||
|
400:40mm |
40:G1-1/2" |
Z:Explosion-Proof |
AC380V |
|||
|
500:50mm |
50:G2" |
AC24V |
||||
|
Model |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
|
|
Working Medium |
Air,Water,Oil,Gas |
||||||
|
Motion Pattern |
Direct Drive Diaphragm Type |
||||||
|
Type |
Normal Close or Normaly Open |
||||||
|
Aperture of Flow Rate(mm) |
16 |
20 |
25 |
35 |
40 |
50 |
|
|
Joint Pipe Bore |
1/2″ |
3/4″ |
1″ |
1 1/4″ |
1 1/2″ |
2″ |
|
|
Operation Fluid Viscosity |
20 CST(Below) |
||||||
|
Working-pressure MPa |
Air:0~0.7MPa; Water:0~0.5MPa; Oil:0~0.5MPa |
||||||
|
Max. Pressure Resistance MPa |
1 |
||||||
|
Operating Temperature ℃ |
-5 ~ 80℃ |
||||||
|
Voltage Range |
±10% |
||||||
|
Material of Body |
Stainless Steel |
||||||
|
Material of Oil Seal |
NBR,EPDM or VITON |
||||||
|
Model |
Port Size |
Orifice(mm) |
Pressure Range(MPa) |
Power VA |
L |
H |
A |
|
2S-15 |
ZG1/2″ |
16 |
0~1.0 |
14 |
70 |
100 |
93 |
|
2S-20 |
ZG3/4″ |
25 |
0~1.0 |
14 |
73 |
102 |
100 |
|
2S-25 |
ZG1″ |
25 |
0~1.0 |
14 |
100 |
106 |
104 |
|
2S-35 |
ZG114″ |
35 |
0~0.7 |
50 |
125 |
158 |
141 |
|
2S-40 |
ZG11/2″ |
40 |
0~0.7 |
50 |
125 |
158 |
141 |
|
2S-50 |
ZG2″ |
50 |
0~0.7 |
50 |
167 |
168 |
157 |
