| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | PG20U-4P-100X |
| Minimum Order Quantity: | 50piece |
|---|---|
| Price: | USD1.0-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 50000 Pieces Per month |
| Dial Size: | 40mm~150mm | Pressure Range: | -76cmHG~1500PSI |
|---|---|---|---|
| Thread Size: | 1/8”~3/8” With Tip Or Without Tip | Type: | Liquid Filled Type,vacuum Type,efrigeration Type |
| Product Name: | Vacuum Pressure Gauge Dial | Material: | Stainless Steel Or Steel |
| High Light: | Pneumatic Air Accessories,Pneumatic Automation Auxiliary |
||

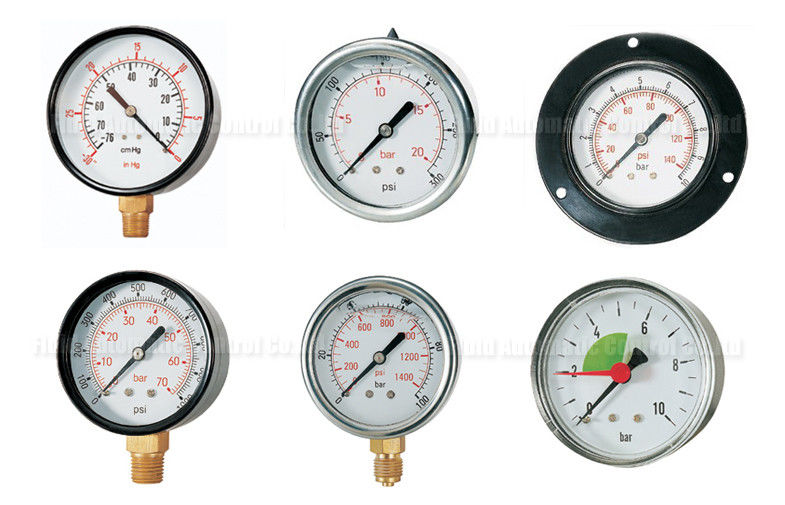

-76cmHG - 1500Psi Pneumatic Air Pressure Gauge,Pressure Manometer 40mm-150mm Dial Size
PG series Pressure Gauge dial size 40mm~150mm,thread size 1/8”~3/8”BSP,BSPT, NPT.Pressure range -76cmHG~1500PSI e.g PG20U-4P-100X with Liquid Vacuum and Refrigeration type.Case material stainless steel or steel
Quick Detail:
* PG series pressure gauge
* Case material stainless steel or steel
* movement material brass
* dial size 40mm~150mm
* pressure range -76cmHG~1500PSI
* flexible connection model for option
* thread size 1/8”~3/8” with tip or without tip for option
* liquid filled type,vacuum type,refrigeration type etc
* high accuracy,fast response
* steady and reliable
Applications:
PG series pressure gauge application covering all the industrial area and scientific research field,it is used widely in the heating pipe network,oil and gas transporation,water and gas supplying,vehicle maintenance,especially use in the industrial control system pressure measurement.
Specifications:
ORDERING CODE
|
Vacuum Pressure Gauge |
|
◇Dial size: 40mm,50mm,63mm,76mm,88mm,100mm,113mm,150mm |
|
◇Case and bezel: Black steel |
|
◇Window :Glass or plastic |
|
◇Connection:Brass,back or bottom |
|
◇Thread:1/8" ,1/4",1/2",3/8" (BSP,BSPT,NPT) |
|
◇Range: -76cmHG-0/-30inHG-0 |
|
◇Movement: Brass |
|
Liquid Filled Pressure Gauge |
|
◇Dial size: 40mm,50mm,63mm,76mm,88mm,100mm,113mm,150mm |
|
◇Case and ring: Stainless steel case, roll ring |
|
◇Window :Polycarbonate |
|
◇Connection:Brass,back or bottom |
|
◇Thread:1/8" ,1/4",1/2",3/8" (BSP,BSPT,NPT) |
|
◇Range:-30inHG-0-30-100------1500PSI |
|
◇Movement: Brass |
|
Panel Pressure Gauge |
|
◇Dial size: 40mm,50mm,63mm,76mm,88mm,100mm,113mm,150mm |
|
◇Case : Black steel |
|
◇Window :Glass or plastic |
|
◇Connection:Brass and back with front flange |
|
◇Thread:1/8" ,1/4",1/2",3/8" (BSP,BSPT,NPT) |
|
◇Range:-30inHG-0-30-100------1500PSI |
|
◇Movement: Brass |
|
Normal Pressure Gauge with back or bottom connection |
|
◇Dial size: 40mm,50mm,63mm,76mm,88mm,100mm,113mm,150mm |
|
◇Case and bezel: Black steel |
|
◇Window :Glass or plastic |
|
◇Connection:Brass,Back or bottom |
|
◇Thread:1/8" ,1/4",1/2",3/8" (BSP,BSPT,NPT) |
|
◇Range:-30inHG-0-30-100------1500PSI |
|
◇Movement: Brass |
Pressure Gauge,pressure manometer
