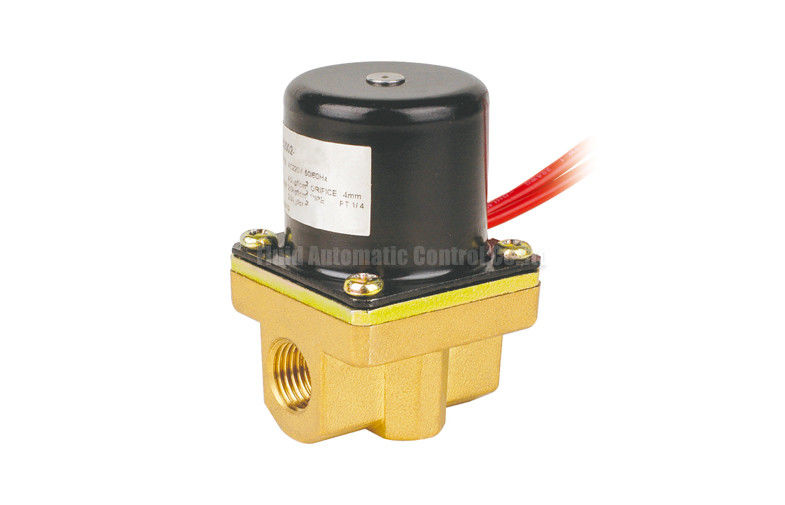

2mm Orifice 2 Way Pneumatic Brass Solenoid Valve For Welding Machine System

2mm Orifice 2 Way Pneumatic Brass Solenoid Valve For Welding Machine System

    • 2mm Orifice  2 Way Pneumatic Brass Solenoid Valve For Welding Machine System
  • 2mm Orifice  2 Way Pneumatic Brass Solenoid Valve For Welding Machine System

    Product Details:

    Place of Origin: Ningbo China(Mainland)
    Brand Name: FLUIDAC or OEM
    Certification: ISO9001
    Model Number: WSV2301-AC220V

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 piece
    Price: USD5--
    Packaging Details: Boxes, Cartons,Wooden cases,Pallets
    Delivery Time: Within 20 days after receiving payment or deposit
    Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
    Supply Ability: 10000 Pieces Per month
    Contact Now
    Detailed Product Description
    Working Pressure: 0~1.0MPa Port Size: G1/8”,G1/4”
    Aperture Of Flow Rate: 2mm,3mm,4mm Body Material: Brass
    Motion Pattern: Direct Acting Product Name: Solenoid Valve
    Type: Two Position Two Way Voltage: DC24V
    Working Medium: Air|Water|Oil|Gas
    High Light:

    2 Way Solenoid Valve

    ,

    Pneumatic Valve

    2mm Orifice 2 Way Pneumatic Brass Solenoid Valve For Welding Machine System

    WSV Series miniature solenoid valve direct acting type orifice size 2mm,3mm,4mm two position two way port size G1/8,G1/4 e.g WSV2301-AC220V





    Quick Detail:



    * WSV series miniature solenoid valve orifice size 2mm,3mm,4mm

    * Two position two way direct acting

    * Port Size G1/8”,G1/4”

    * Seal NBR material

    * Miniature compact design,small volume,flexible application

    * Fast respond,low noise,low consumption

    * Stable design,long serive life

    2mm Orifice  2 Way Pneumatic Brass Solenoid Valve For Welding Machine System 0

    Applications:



    WSV two position two way solenoid valve acting as on and off switch function automatically for its working system by the involving of power electricity magnetic.

    WSV Series widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.

    WSV series valve use especially in welding machine equipment



    Specifications:



    ORDERING CODE

    2

    3

    01

    AC220V

    Position and Numbers

    Orifice Size

    Port size

    Voltage

    2:Two position Two Way

    2:2mm

    01:G1/8"

    DC12V

    3:3mm

    02:G1/4"

    DC24V

    AC110V

    4:4mm

    M10:M10X1.0

    AC220V

    AC24V



    SPECIFICATION

    Model No

    WSV Series

    Working Medium

    Air,Water,Oil,Gas

    Motion Pattern

    Direct Drive Type

    Initial State

    Normal Close

    Aperture of Flow Rate(mm)

    2mm,3mm,4mm

    Joint Pipe Bore

    M10X1.0,G1/8",G1/4"

    Operation Fluid Viscosity

    50 CST(Below)

    Working-pressure MPa

    0~1.0MPa

    Operating Temperature ℃

    –20 ~ 50℃

    Voltage Range

    ±10%

    Material of Body

    Brass

    Material of Oil Seal

    NBR



    2mm Orifice  2 Way Pneumatic Brass Solenoid Valve For Welding Machine System 1

    Pneumatic Valve,Miniature Solenoid valve,Welding machine solenoid valve
