| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | NV-15HS |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD10-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 10000 Pieces Per month |
| Feature: | Compact Design,low Noise | Nozzle Dia: | 0.5,1.0,1.5 |
|---|---|---|---|
| Application: | Robot Automation System | Product Name: | Vacuum Ejector |
| High Light: | Vacuum Generator Ejector Pump,Low Noise Vacuum Generator Ejector Pump,Vacuum Generator Pump With Nozzle |
||

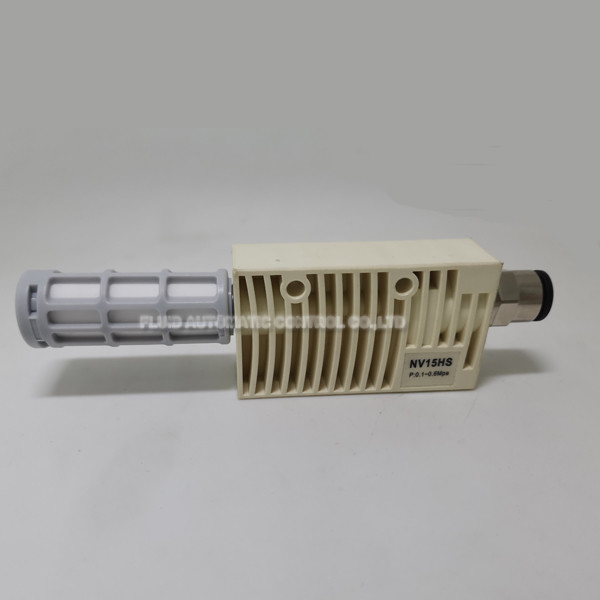

Vacuum Generator Vacuum Ejector Pump Compressed Air Vacuum With Nozzle And Muffler
NV series vacuum ejector with high temperature resistant alloy material body,brass nozzle diameter 0.5,1.0,1.5 e.g NV-15HS
Quick Detail:
* NV base type vacuum generator
* With high strength, acidproof and alkali-resisting alloy material
* Compact design,light in weight,flexible application
* Nozzle Dia 0.5,1.0,1.5
* Pressure switch can be attached with
* With silencer,low noise
* Stable design,long service life
Applications:
NV Series vacuum ejector used widely in automotive industrial,chemical industrial,glass manufacturing,automation system mechanical,electronics,packing system, printing, plastic, robot automation system etc
Specifications:
| NV | 15 | H | S | CK |
| NV Series | Nozzle Diameter: 05-φ0.5mm 10-φ1.0mm 15-φ1.5mm | H: High vaccum type(92kPa) L: Large flow type(57kPa) | Rated Air Supply Pressure: S: 5 bar R:3.5bar | Pressure Switch: Blank: None CK: With Adjustable Magnet Switch |
| Model | Nozzle Diameter (mm) | Air pressure (bar) | Max. vacuum -Kpa | Max.Vacuum flow NL/min | Air Consumption NL/min | Noise dB(A) | Tube Diameter(mm) | |
| Air inlet port P | Vacuum port V | |||||||
| NV05H | 0.5 | 5.0 | 87 | 8 | 12 | 68 | 8 | 8 |
| NV10H | 1.0 | 5.0 | 92 | 29 | 44 | 68 | 8 | 8 |
| NV15H | 1.5 | 5.0 | 92 | 63 | 100 | 72 | 8 | 8 |
| NV05L | 0.5 | 5.0 | 57 | 10 | 13 | 68 | 8 | 8 |
| NV10L | 1.0 | 5.0 | 57 | 36 | 44 | 68 | 8 | 8 |
| NV15L | 1.5 | 5.0 | 57 | 95 | 100 | 72 | 8 | 8 |
Sensor switch:
| Item | NV-CK(Adjustable sensor switch) | ||
| Working Medium | Air (Vacuum) | ||
| Pressure (-kPa) | 40~60 | ||
| Amibent Temperature | 0~60℃( not freezing) | ||
| Repeated accuracy (-kPa) | ±5 | ||
| Working Voltage (V) | DC24V | ||
| Load current (MA) | 40 max | ||
| Wire effective length (M) | 1 |
Vacuum component,vacuum ejector,vacuum generator
