70mm Bore Size Aluminum Air Driven Pump 3/8" 2Mpa - 6Mpa For Hydraulic Jack
AP series Air pump for air over hydraulic jack,air supply pressure 2~6Mpa,bore size 70mm,80m.Port size 1/4”,3/8”,1/2” G,PT,NPT thread,e.g AP1001.
Quick Detail:
* AP Series air pump for air over hydraulic jack
* Aluminum alloy body material
* Bore size 70mm,80mm
* Stroke according to requirement
* Mickey mouse barrel,round barrel with tie-rod for option
* Air supply pressure 2~6Mpa
* Port size 1/4”,3/8”,1/2” G,NPT for option
* Working termperature:0~60℃
Applications:
AP series air pump designed for application in the air over hydraulic jack
Specifications:
1,Body material:Aluminum alloy
2,Bore size:70mm,80mm
3,Port size: 1/4”,3/8”,1/2”
4,Working temperature:0~60℃
5,Air supply pressure range:2~6Mpa

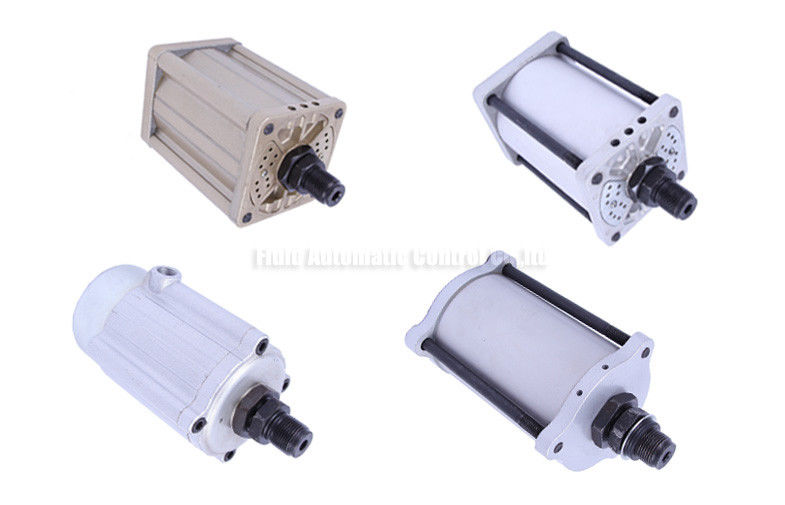

AP1001 Bore size 70mm,Mickey mouse barrel air pump
AP1002 Bore size 70mm,Round barrel with tie-rod air pump
AP1003 Bore size 70mm air change pump
AP1004 Bore size 80mm round barrel air pump
| S.r. |
Parts Code |
Parts Name |
S.r. |
Parts Code |
Parts Name |
| 1 |
AP1003-1 |
Plunger Sleeve |
15 |
AP1003-13 |
Muffler |
| 2 |
AP1003-2 |
Thread Sealing |
16 |
AP1003-14 |
Muffler Element |
| 3 |
AP1003-3 |
Gland |
17 |
GB70-85 |
Hexagon socket bolt M5*16 |
| 4 |
AP1003-4 |
Adjusting Nut |
18 |
GB859-87 |
Spring Gasket ￠5 |
| 5 |
AP1003-5 |
Lower Cover |
19 |
AP1003-15 |
Air Cylinder Seal |
| 6 |
AP1003-6 |
Pump Body |
20 |
GB3452.1-82 |
O-Ring 24*5.75 |
| 7 |
D2 6*12*5 |
Shaft Y Sealing |
21 |
AP1003-16 |
Air Bleed Piston |
| 8 |
AP1003-7 |
Circlip |
22 |
AP1003-17 |
Air Valve Cover |
| 9 |
AP1003-8 |
Guide Ring |
23 |
AP1003-18 |
Guide PTFE Ring |
| 10 |
AP1003-9 |
Outer liner nut |
24 |
GB3452.1-82 |
O-Ring 60*3.55 |
| 11 |
AP1003-10 |
Spring |
25 |
AP1003-19 |
Piston |
| 12 |
AP1003-11 |
Plunger |
26 |
GB70-85 |
Hexagon socket bolt M6*16 |
| 13 |
AP1003-12 |
Baffle Plate |
27 |
GB859-87 |
Spring Gasket ￠6 |
| 14 |
GB308-84 |
Steel Ball ￠3.5 |
|
|
|
