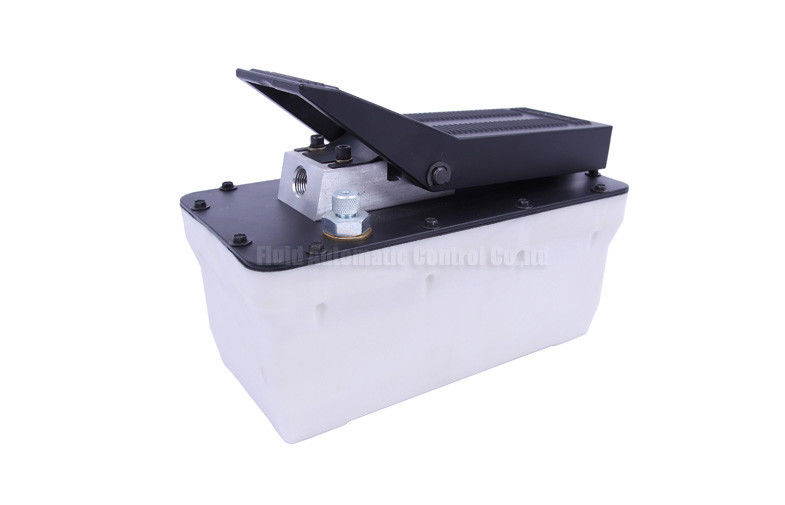

1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams

1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams

  • 1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams
1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: APH1102
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: USD--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 5000 Pieces Per month
Contact Now
Detailed Product Description
Oil Outlet Port: 3/8~18NPT Air Pressure Range: 60~170psi
Reservoir Usable Oil Cap: 1 .7L Motion Pattern: Single Acting
Operating Pressure: Up To 70Mpa Product Name: Air Hydraulic Pump
High Light:

Air Driven Hydraulic Pump

,

Air Cylinder


1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams
10000PSI operating pressure air driven Air hydraulic pump for rams,presses,hydraulic puller with engineering plastic reservoir,single acting type,oil usable 1.7L,oil outlet port 3/8-18NPT model no.APH1102

Quick Detail:

* APH1102 Air hydraulic pump
* Air driven type,easily to operate by hand of foot
* Single acting for single acting cylinders
* Operating pressure up to 10000PSI(70Mpa)
* Rugged one-piece construction reduce air consumption
* Reinforced engineering plastic reservoir,harsh weather-resistance,impact-resistance
* Aluminum casting air motor increase service life and reduce air consumption effective
* Low noise provide quiet working environment
* Low starting air pressure
* With automatic relief valve for overload protection
* With air nipple and hydraulic adapter
* Compact design,light in weight,portable for any job site

Applications:

This hydraulic air pump is designed to operate pneumatically. It is an ideal power source for various body, frame and alignment applications and can be used with different ram kits, shop presses and hydraulic pullers,with compact design,portable to any job site and can be take place of manul pumps.

Specifications:


  1. Equipped with a reinforce engineering plastic reservoir that has been time tested to withstand harsh weather conditions and is extremely impact resistant.
  2. Rugged one-piece construction reduce air consumption and operating costs
  3. Beats the leading competitors in oil flow delivery by as much as two to one, doing more work in less time.
  4. Portable to any job site equipped with compressed air. Takes the place of manual pumps. Less operator fatigue, more productivity.
  5. Plenty of oil to power cylinders up to 55 ton capacity.
  6. Compact, light-weight(6.5KG) design for easy handling and storage.
  7. Internal pressure relief valve for over-load protection of system components.
  8. Two-stage release mechanism for fast ram return while reducing hydraulic shock. Operates easily by hand or foot.
  9. All-metal air motor for reliability and easy maintenance. Long life expectency and reduce air consumption
  10. Operates at up to 10,000 psi (700 bar).
  11. Air nipple and hydraulic adapter included
  12. Hydraulic hose can be attached as accessories
  13. Low noise 85dBA provide a quiet working environment
  14. Mounting type horizontal

Model

Reservoir Usable Oil Cap

Pressure Rating

Output flow Rate (L/min)

Air Pressure Range

Air Consumption.

Sound Rate

Oil Outlet Port

Weight

(L)

(psi)

No Load

Load

(psi)

(Scfm)

(dBA)

(in)

(kg)

AHP1102

1 .7

10000

0.85

0.17

60~170

10CFM

85

3/8~18NPT or Requested

6.5

1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams 0

1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams 1

1.7L Oil Capacity Operating Pressure 70Mpa Air Hydraulic Pump For Hydraulic Rams 2
