| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | GC-02 |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD6-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 20000 Pieces Per month |
| Product Name: | Air Filter / Air Regulator / Air Lubricator | Material: | Aluminum Die-casting Body |
|---|---|---|---|
| Mounting Type: | Pipe Mounting | Regulator Type: | Diaphragm Type |
| Port Size: | G1/8”,G1/4”,G3/8”,G1/2” | Working Pressure: | 0.05~0.9MPa |
| Working Temperature: | 5~60℃ | Filtration Fineness: | 0µ,5µ |
| High Light: | Air Source Treatment Unit,Air Line Service Equipment |
||

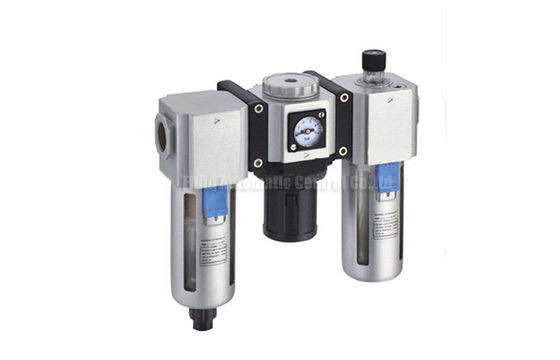

Filter and Regulator and Lubricator Three Combination Group Air Service Units With Gauge Embeded
Airtac G Series air service unitsincluding filter,regulator,lubricator and the combination group,Regulator presure Gauge embeded,port size G1/8”~G1/2” e.g GC-02D With automatic drainer
Quick Detail:
* G Series air service units Airtac interchangeable
* Aluminum die-casting body material
* Structure Diaphragm type
* With Pressure Gauge embeded,keep from collision
* Modular design,different combination for flexible application
* Port size G1/8”, G1/4”,G3/8”,G1/2”
* Pressure range adjustable 0.05~0.9MPa
* Filter fineness 40 Micron standard,5 Micron for option
* With semi-automatic drainer standard,automatic drainer of drainage model function for selection
* Stable design, long service life cycle
Applications:
G series air service units installing between the air compressor and Pneumatic system equipment,close to pneumatic system equipment.
G series air preparation units including F&R&L(Filter and Regulator and Lubricator) FR&L(Filter regulator and Lubricator), FR(Filter Regulator), F(Filter), R(Regulator), L(Lubricator).
G Series Air service units can maintain steady of the pneumatic system pressure by air regulator,avoid the sudden change of air source pressure to do harm to the pneumatic system components. Filter can be clean the air source,separate the water and other impurity from the air source,thus improve the qaulity of air medium effectly.Lubricator supply lubricant to the pneumatic system to keep system working smooth,significantly extend the service life cycle of pneumatic system components.
Specifications:
|
GC |
01 |
D |
|
Type |
Port Size |
Drainage Model(For Filter) |
|
GC:G Series filter and regulator and lubricator three combination |
01:G1/8" |
D:Automatic Drainer |
|
GFC:G Seires Filter Regulator And Lubricator two combination |
02:G1/4" |
|
|
GFR:G Series Filter Regulator |
03:G3/8" |
S:Semi-automatic Drainer |
|
GF:G Series Air Filter |
||
|
GR: G Series Regulator |
04:G1/2" |
|
|
GL:G Series Lubricator |
SPECIFICATION
1,Working Medium:Air source
2,Body material:Aluminum die-casting
3,Filter bowl and Lubricator bowl material:PC
4,Filter element material:Brass
5,Bowl Guard:Iron
6,Seal Material:NBR
7,Adjustabing knob:POM
8,Working pressure:0.05~0.9MPa standard
9,Working Temperature:5~60℃
10,Filtration fineness:40µ,5µ can be available
11,Mounting type: Pipe mounting
12,Regulator type:Diaphragm type
13,Lubricator type:Oil volume adjustable during working
14,Port size:G1/8”,G1/4”,G3/8”,G1/2”
15,Drainage model: Semi-automatic drainer,automatic drainer
16,Design type:Modular
Air preparation equipment units,air source treatment units,air-line service units
