| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | PE4x2.5-200M-T |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD10-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 80000 Meters Per month |
| Applications: | ,light Industry, Papermaking,metallurgy Etc | Colours: | Yellow, Red, White, Black, Blue |
|---|---|---|---|
| Material: | Polyethlene | Product Material: | Anti Corrosion Pipe |
| Feature: | Anti Corrosion ，Oil-resistance | Working Pressure: | 8.0Bar |
| Working Temperature: | -20~60℃ | Inch Size Out Dia: | 1/8”,1/4”,3/8”,1/2” |
| Outer Dia. Metric Size: | 4mm,6mm,8mm,10mm,12mm | ||
| High Light: | Air Tube,Pneumatic Plastic Pipe |
||

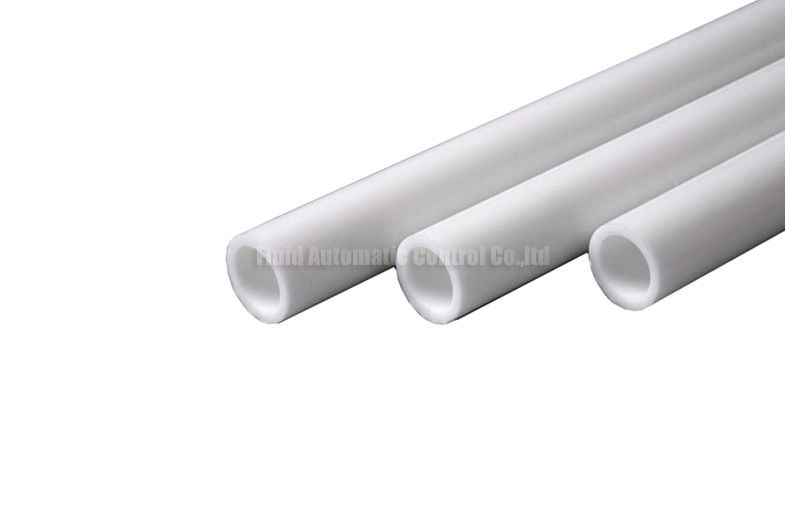

Oil-resistance And Insulation Polyethylene Pneumatic Air Hose , 8mm PE Tube
Polyethylene material tube O.D size 4mm,6mm,8mm,10mm,Inch size 1/8”,1/4”,3/8”,1/2” e.g PE4x2.5-200M-T
Quick Detail:
* PE Series polyethlene tube
* working temperature:-20~60℃
* working pressure 8.0Bar
* tuter Dia. Metric size 4mm,6mm,8mm,10mm,12mm
* tuter Dia. Inch Size 1/8”,1/4”,3/8”,1/2”
* conform to ROHS environment protection requirement
* chemical-resistance,anti-corrosion
* oil-resistance
* outstanding performance in insulation
* non-toxic,tastless
Applications:
PE tube used widely in Tap-water hose net system,drinking water pipeline,Liquid transport pipeline of chemical industry,chemical fibre,food,forestry,printing and dyeing,phamacy,light industry, papermaking,metallurgy etc
Specifications:
|
ORDERING CODE |
|||
|
PE |
4x2.5 |
100M |
BU |
|
Type |
O.DxI.D Metric Size And Inch Size |
Meters/Roll |
Colours |
|
PE:Polyethylene Tube |
4x2.5 |
200M |
T:TRANSPARENT |
|
6x4 |
200M |
R:RED |
|
|
8x6 |
100M |
BU:BLUE |
|
|
10x7.5 |
100M |
B:BLACK |
|
|
12x9 |
100M |
||
|
1/8" |
200M |
G:GREEN |
|
|
1/4" |
200M |
||
|
3/8" |
100M |
Y:YELLOW |
|
|
1/2" |
100M |
||
SPECIFICATION
1,Material: Polyethlene
2,Working Fluids:Air,water,oil
3,Working Pressure:0.8MPa
4,Working Temperature:-20~60℃
|
MODEL |
O.D(mm) |
I.D(mm) |
Meters/Roll |
Min.Radius |
|
PE-0425 |
4 |
2.5 |
200 |
10 |
|
PE-0640 |
6 |
4 |
200 |
15 |
|
PE-0806 |
8 |
6 |
100 |
20 |
|
PE-1075 |
10 |
7.5 |
100 |
27 |
|
PE-1290 |
12 |
9 |
100 |
37 |
|
PE-1/8 |
3.175 |
1.57 |
200 |
13 |
|
PE-1/4 |
6.35 |
4.57 |
200 |
15 |
|
PE-3/8 |
9.53 |
6.5 |
100 |
27 |
|
PE-1/2 |
12.6 |
9.6 |
100 |
37 |
Polyethlene tube,PE tube,Air hose
