| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | PVCA-1/4-100M |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD10-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 80000 Meters Per month |
| Product Material: | Fiber Reinforced Hose | Feature: | Oil Resistant,acid And Alkali Resistant,Non-toxic,tastless |
|---|---|---|---|
| Inch Size Out Dia: | 3/16”~2” | Tube Material: | PVC |
| Outside Cover Material: | PVC | 6.0 ～ 8.0: | 6.0Mpa ～ 8.0Mpa |
| High Light: | Air Tube,Pneumatic Plastic Pipe |
||

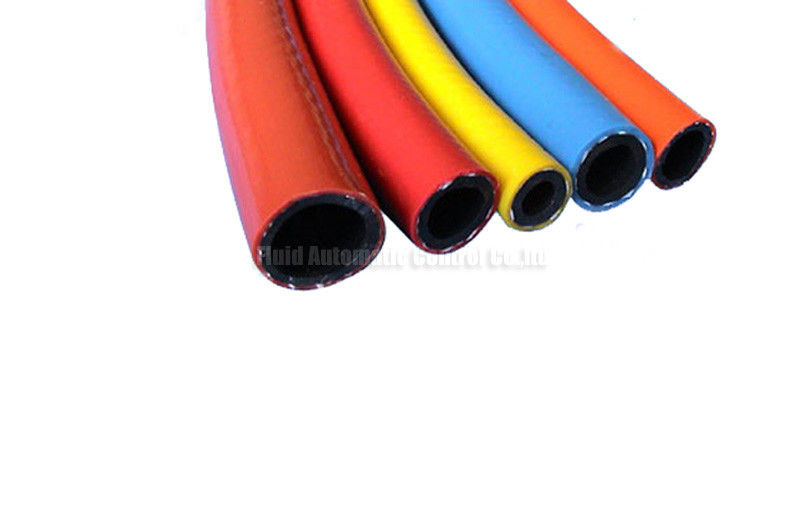

2" I.D PVC Synthetic Fiber Reinforced Hose 1Mpa - 2Mpa For High Pressure Gas
PVC Fiber reinforced hose for high pressure gas,oil,water working pressure 1~2Mpa,I.D size 3/16”~2” e.g PVCA-1/4-100M
Quick Detail:
* PVCA fiber reinforced tube for high pressure air,water,oil
* inner Diamter inch size 3/16”~2”
* tube material PVC
* outside cover material PVC
* reinforcement material High tensile synthetic fibre spiraled
* flexible and soft,easy for pipe work
* conform to ROHS environment protection requirement
* pressure-resistance,weather-resistance
* oil resistant, acid and alkali resistant,corrosion-resistance
* light in weight,cost efffectly
* wide applicable range of tempeature
* non-toxic,tastless
PVC air hose,PVC Pipe,PVC reinforced tube
Applications:
PVCA Hose Mainly used for conveying of high pressure water, air, oil and inert gas in industry, agriculture, construction, engineering and machinery
Specifications:
|
ORDERING CODE |
||
|
PVCA |
1/2 |
100M |
|
Type |
Inner Diameter Inch Size |
Meters/Roll |
|
PVCA:PVC Fiber Reinforced hose For high pressure air/water/oil |
3/16” |
100 |
|
1/4” |
100 |
|
|
5/16” |
100 |
|
|
100 |
||
|
3/8” |
100 |
|
|
1/2” |
100 |
|
|
5/8” |
100 |
|
|
3/4” |
100 |
|
|
1” |
50 |
|
|
1-1/4" |
50 |
|
|
1-1/2" |
50 |
|
|
2" |
50 |
|
SPECIFICATION
|
Inside Diameter |
Outside Diameter (mm) |
Working Pressure (Mpa) |
Burst Pressure (Mpa) |
Length Max.(m) |
Weight(kg/m) |
|
|
inch |
mm |
|||||
|
3/16” |
5 |
11 |
2 |
6.0 ～ 8.0 |
100 |
0.098 |
|
1/4” |
6 |
12 |
2 |
6.0 ～ 8.0 |
100 |
0.111 |
|
5/16” |
8 |
14 |
2 |
6.0 ～ 8.0 |
100 |
0.135 |
|
8.5 |
14.5 |
2 |
6.0 ～ 8.0 |
100 |
0.141 |
|
|
3/8” |
10 |
16 |
2 |
6.0 ～ 8.0 |
100 |
0.16 |
|
1/2” |
13 |
20 |
2 |
6 |
100 |
0.236 |
|
5/8” |
16 |
25 |
1.5 |
5 |
100 |
0.377 |
|
3/4” |
19 |
28.5 |
1.5 |
4.5 |
100 |
0.461 |
|
1” |
25 |
34.5 |
1.5 |
4.5 |
50 |
0.577 |
|
1-1/4" |
32 |
44 |
1 |
3 |
50 |
0.931 |
|
1-1/2" |
38 |
50 |
1 |
3 |
50 |
1.078 |
|
2" |
50 |
64 |
1 |
3 |
50 |
1.629 |
