| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | SHV-402S |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD4-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 20000 Pieces Per month |
| Equvalent: | SUNRISE | Series: | SHV Series |
|---|---|---|---|
| Body Material: | Aluminum Alloy | Function Type: | Two Position Five Way |
| Max.Pressure Resistance: | 1.2MPa | Motion Pattern: | Direct Acting |
| Port Size: | PT1/4 | Product: | Manual Directional Control Valve |
| Type: | Spring Return Type | Working Pressure: | 0~1.0MPa |
| High Light: | Pneumatic Valve,Directional Control Valve,PT1/4" hand lever valve |
||

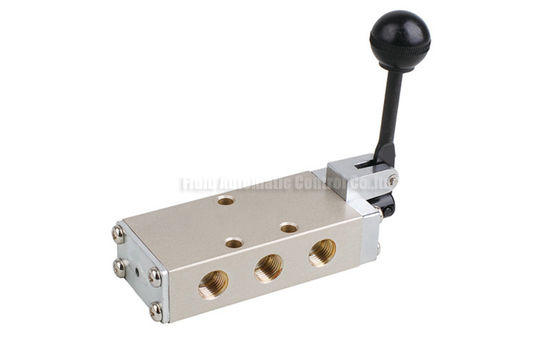

Hand Lever Pneumatic Directional Control Valve Five Way PT1/4"
45mm body width SHV Series two position five way three position five way hand lever valve with spring return and position locking port size PT1/4 PT3/8 e.g SHV-402S SUNRISE Equvalent with aluminum alloy body material
Quick Detail:
* SHV series hand lever valve SUNRISE equivalent
* Two position Five Way,Three Position Five way
* Spring return type or postion locking type for option
* Big angle safety area enlarged keep from leakage
* Smooth hand operating,small operating power
* Heavy duty design,long service life
Applications:
SHV series hand Lever valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system
Specifications:
|
ORDERING CODE |
||||
|
SHV |
4 |
02 |
S |
|
|
Type |
Body Width |
Port Size |
Type |
|
|
SHV:SUNRISE Type Two position Five Way Hand Lever valve |
4:45mm |
02:PT1/4" |
S:Spring Return |
|
|
03:PT3/8” |
Blank:Standard Lock type |
|||
|
SPECIFICATION |
||||
|
Model no |
SHV402 |
SHV402S |
SHV403 |
SHV403S |
|
Working Medium |
Compressed 40 Micron Filtered Air |
|||
|
Body Material |
Aluminum Alloy |
|||
|
Position And Way Numbers |
Two Position-Five Way |
|||
|
Port Size |
PT1/4" |
PT3/8" |
||
|
Motion Pattern |
Direct Acting |
|||
|
Working Pressure |
0.15~0.9MPa |
|||
|
Operating Temperature |
0~70℃ |
|||
Pneumatic Valve,Hand Valve,Manual Operated valve
