Place of Origin: | Ningbo China(Mainland) |
Brand Name: | FLUIDAC or OEM |
Certification: | ISO9001 |
Model Number: | GT-20 |
Minimum Order Quantity: | 5 piece |
---|---|
Price: | USD20-- |
Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
Delivery Time: | Within 20 days after receiving payment or deposit |
Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
Supply Ability: | 5000 Pieces Per month |
Body Material: | Stainless Steel, Extruded Aluminium Alloy | Centrifugal Force: | 7190N At 6Bar |
---|---|---|---|
Frequence: | 13000cycles/Minute At 6 Bar | Inlet And Exhuasting Port Size: | NPT, 3/8”G |
Low Noise: | 60~75Dba | Product Name: | Pneumatic Gear Vibrator, Pneumatic Gear Vibrator |
High Light: | Pneumatic Vibrator,Air Vibrator |

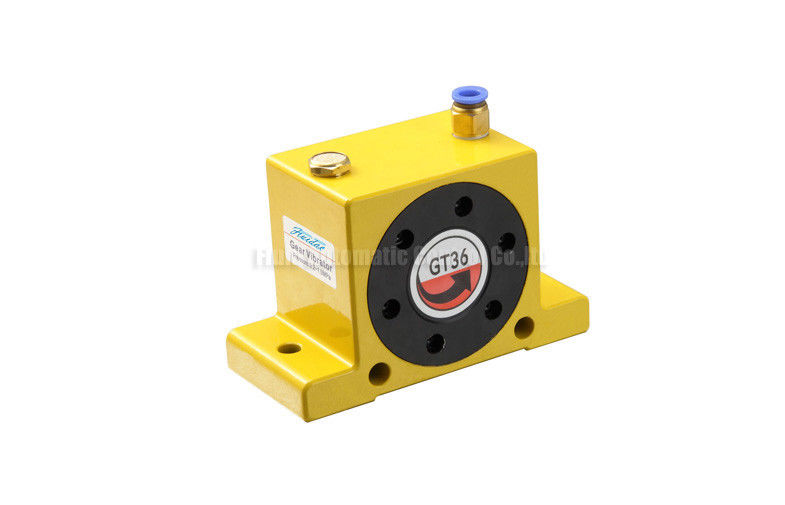

3/8"G NPT Pneumatic Gear Vibrator 13000cycles/Minute For Vibrating Feeder
GT-36 pneumatic Gear vibrator with body material aluminum alloy or stainless steel, inlet and exhuasting port size 3/8”G or NPT,working frequency 13000cycles/Minute at 6Bar,centrifugal force 7190N at 6Bar
Quick Detail:
* GT-36 Pneumatic turbine vibrator
* Body material Extruded Aluminium Alloy
* Body material stainless steel available
* Inlet and exhuasting port size 3/8”G,NPT
* Working frequence and centrifugal force can be adjustable by air pressure
* Working frequence up to 13000cycles/Minute at 6 Bar
* Strong Centrifugal force up to 7190N at 6Bar
* Low noise 60~75Dba
* High temperature-resistance up to 120℃
* Immediately start,stop,fast response
* Easy to operate,safety application
* Easy to change bearing parts
* Lubrication free
Applications:
GT-36 Pneumatic turbine vibrator used widely in feed material conveyor,vibration screening,vibrating hopper,packaging filling,foundry sand mold vibration etc
Specifications:
1, Extruded Aluminium Alloy Body
2, Hard Coated Aluminium Turbine Wheel
3-4, High Density Mass Positive Movement
5-7, Cavities Giving Negative Movement
8,Air Inlet Port
9,Air Exhausting port
10,Base Mounting Holes
11,Special Pre-Lubricated Matching Sealed Bearings
Hard Coated Aluminium Endplates
12,With Left direction Thread
13,With Right direction Thread
Model |
Frequency V.P.M |
Centrifugal force |
Air consumption L/ Minute |
||||||
2 Bar |
4 Bar |
6 Bar |
2 Bar |
4 Bar |
6 Bar |
2 Bar |
4 Bar |
6 Bar |
|
29 PSI |
58 PSI |
87 PSI |
N |
N |
N |
Ltr. |
Ltr. |
Ltr. |
|
GT-8 |
36000 |
42000 |
46000 |
990 |
2060 |
2910 |
48 |
75 |
152 |
GT-10 |
27500 |
35000 |
37500 |
840 |
1390 |
2400 |
|||
GT13 |
26000 |
30000 |
33000 |
1400 |
2440 |
3730 |
125 |
210 |
280 |
GT-16 |
17000 |
21500 |
24000 |
1220 |
2090 |
3160 |
|||
GT20 |
17000 |
20000 |
23000 |
2170 |
4040 |
5520 |
188 |
315 |
465 |
GT-25 |
12000 |
15500 |
17000 |
2120 |
3510 |
5070 |
|||
GT32 |
13000 |
14000 |
16000 |
3380 |
5430 |
7540 |
335 |
520 |
755 |
GT-36 |
7800 |
10000 |
13000 |
3290 |
5360 |
7190 |
|||
GT40 |
7500 |
8800 |
9500 |
4300 |
7300 |
9800 |
428 |
680 |
960 |
GT-48 |
5800 |
7500 |
9700 |
4900 |
7700 |
10500 |
|||
GT-60 |
4758 |
6530 |
8515 |
5700 |
9800 |
11150 |
|
|
|
Model |
A |
Width |
C |
D |
E |
F |
G/H |
Weight |
mm |
mm |
mm |
mm |
mm |
mm |
Thread(G) |
kg |
|
GT-8 |
50 |
33 |
86 |
68 |
12 |
7 |
1/8" |
0.25 |
GT-10 |
0.255 |
|||||||
GT-13 |
65 |
42 |
113 |
90 |
16 |
9 |
1/4" |
0.565 |
GT-16 |
0.58 |
|||||||
GT-20 |
80 |
56 |
128 |
104 |
16 |
9 |
1/4" |
1.09 |
GT-25 |
1.12 |
|||||||
GT-32 |
100 |
73 |
160 |
130 |
20 |
11 |
3/8" |
2.2 |
GT-36 |
2.3 |
|||||||
GT-40 |
120 |
83 |
194 |
152 |
24 |
17 |
3/8" |
3.69 |
GT-48 |
3.89 |
|||||||
GT-60 |
140 |
95 |
240 |
195 |
30 |
21 |
3/8" |
5.59 |
Pneumatic vibrator,turbine vibrator,Gear vibrator
