| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | DSV-63-5L-DC12V |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD11 |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 20000 Pieces Per month |
| Type: | Two Position Four Way | Coil Voltage: | 12VDC/24VDC |
|---|---|---|---|
| Material: | Aluminum | Motion Pattern: | Diaphragm Pilot |
| Product Name: | Solenoid Valve | Flow Capacity: | 5L |
| High Light: | Diaphragm Pilot Oxygen Solenoid Valve,Miniature Pilot Solenoid Valve,Oxygen Concentrator Pilot Solenoid |
||

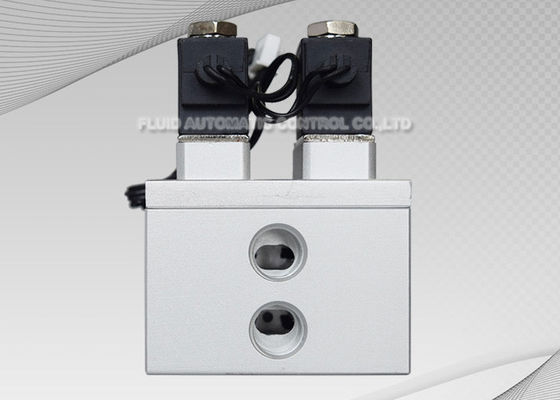

Small Volume Light Weight Oxygen Concentrator Miniature Solenoid Valve
Two Position Four Way Small Volume Light Weight Oxygen Generator Diaphragm Pilot Valve For Oxygen Machine
0.05Mpa~0.35Mpa Low working pressure two position four way Diaphragm pilot Solenoid valve for application to Oxygen Generator body material aluminum alloy
Quick Detail:
Applications:
DSV series Diaphragm solenoid valve used in the low pressure system especially use for Oxygen Generator system of medical Industrial
Ordering Code:
| DSV | 63 | 5L | DC12V | |
| DSV:DSV Series 4/2 Diaphragm Solenoid valve | Size Code |
Applicable Oxygen Generator Flow Capacity
|
12VDC/24VDC |
Customized Code Blank: Not Specific |
Specification:
| Model no | DSV-63-5L-DC12V |
| Working Medium | Compressed Filtered Clean Air |
| Body Material | Aluminum Alloy |
| Position And Way Numbers | Two Position Four Way |
| Coil Voltage | Standard:12VDC/24VDC |
| Motion Pattern | Diaphragm Pilot |
| Working Pressure | 0.05~0.35MPa |
| Operating Temperature | -20~70℃ |
| Voltage Tolerance | ±10% |
| Insulation&Protection Class | F Class IP65 |
Overall Dimension:
Pneumatic valve,Diaphragm solenoid valve,Oxygen Generator Solenoid valve
