| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Model Number: | RKC-25A |
| Minimum Order Quantity: | 5PCS |
|---|---|
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal |
| Supply Ability: | 10000PCS per Month |
| Material: | Carbon Steel | Dia Of Piston (mm): | φ12~25mm |
|---|---|---|---|
| Range Of Pressure (kg/cm2): | 20-250kg/cm2 | Acting Type: | Single Acting |
| Fluid: | Filtered Oil | Type: | Circular Type |
| High Light: | Thread Hydraulic Cylinder Rod,12mm Hydraulic Cylinder Rod,Carbon steel Hydraulic Cylinder Rod |
||

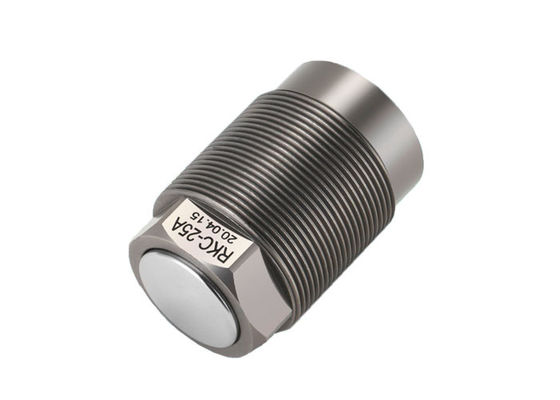

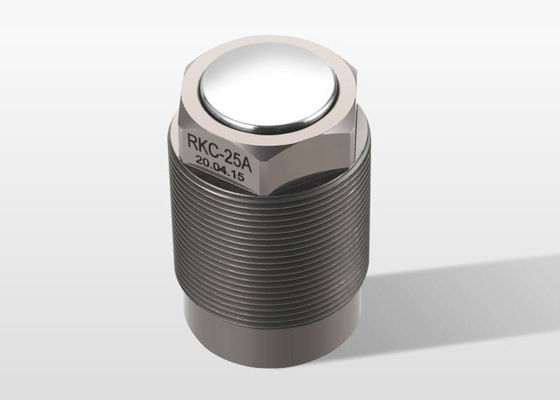

RKC Thread type Single Acting Hydraulic Cylinder Rod Size φ12~25mm Pmax.35MPa Circular Type
e.g: RKC-25A
Details:
Ordering Code:
| RKC | 25 | A/B |
| Series | Dia.of piston φ12mm φ16mm φ20mm φ25mm |
Type: A:Circular type B: Int.thread type |
Specification:
| Type | RKC-12A | RKC-16A | RKC-20A | RKC-25A |
| Dia of piston (mm) | φ12 | φ16 | φ20 | φ25 |
| Total Stroke (mm) | 10 | 12 | 15 | 16 |
| Fluid | Filtered oil | |||
| Range of pressure (kg/cm2) | 20-250kg/cm2 | |||
| Acting type | Single acting | |||
| Theoretical clamping | 200(kg) | 400(kg) | 620(kg) | 980(kg) |
Dimension:
(Unit:mm)
| Model | RKC-12A | RKC-16A | RKC-20A | RKC-25A |
| A | 38 | 46.5 | 57.5 | 58.5 |
| B | 36 | 44.5 | 54 | 55 |
| C | 7 | 8 | 8 | 11 |
| D | M22*1.5 | M26*1.5 | M30*1.5 | M38*1.5 |
| F | 12 | 16 | 20 | 25 |
| G | 16 | 20 | 24 | 28 |
| H | 6 | 7 | 7 | 10 |
| N | — | — | — | — |
| K | 3 | 3 | 3 | 3 |
| ST | 10 | 12 | 15 | 16 |
