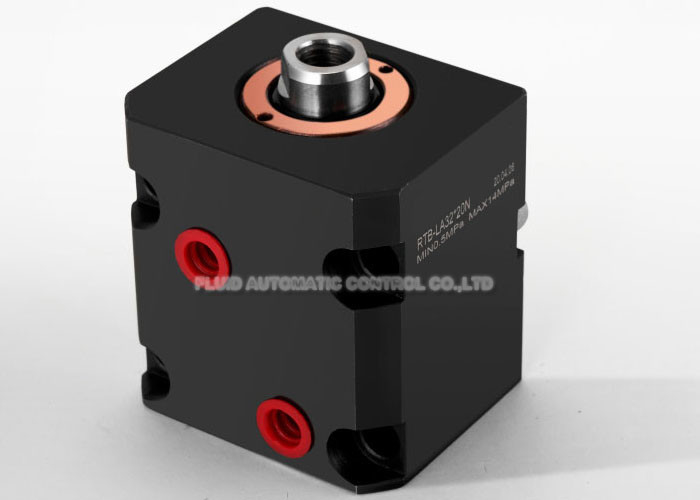

Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2

Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2

  • Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2
Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Model Number: RTB-LA 32*20 N
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 5000PCS per Month
Contact Now
Detailed Product Description
Material: Carbon Steel Mounting Type: LA-Single End Rod / LW- Doubele End Rod
Range Of Pressure: 0.5~14MPa/cm2 Range Of Temperature: -10~+60℃
Working Medium: Filtered Oil Acting Type: Double Acting
High Light:

Hydraulic Thin Type Cylinder

,

140kg/Cm2 Hydraulic Cylinder

,

LA Side Mounting Hydraulic Cylinder

Hydraulic Thin-Type Cylinder LA Side Mounting  RTB-LA 32*20 N

Hydraulic Thin-Type Cylinder LA Side Mounting, Bore Size Φ32~Φ63mm, Pmax 140kg/ cm2 e.g.RTB-LA 32*20 N



Details:

  • Made of carbon steel,Smoothness and long service
  • Lightweight design,convenient installation,low cost
  • Standard type, provide multiple modes of using
  • High quality sealing ring,abrasive resistance and air leakage
  • Low friction resistance



How to order:

RTB LA 32 × 20 N
RTB Series Mounting Type:
LA: Single end rod type
LW: Double end rod type
Bore Size:
φ32,φ40,φ50,φ63
Standard Stroke:
10,20,30,40,50
Rod End Type:
N:Female thread N
W: Male thread W



Specification:

Mounting type LA Single end rod
LW Double end rod
Range of pressure(Mpa/cm2 ) 0.5~14MPa/cm2
The range of speed 8~100mm/sec
The range of temperature -10~+60℃
Working medium Filtered oil
Acting type Double acting
Material  Carbon steel



Dimensions:

Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2 0

Bore Size PT KW KT KL KA KB
φ32 1/4 12 8 63 28 4.5
φ40 1/4 12 8 70 28 4.5
φ50 1/4 14 9 80 29 5
φ63 3/8 16 10 100 31 5.5

Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2 1

Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2 2

Bore Size A AL AN AW B C CL D SW
φ32 64 89 89 139 54 10 7 20 17
φ40 65 95 90 150 55 10 7 25 22
φ50 71 106 97 167 60 11 8 30 27
φ63 80 120 108 188 67 13 10 35 32



Bore Size EA EB LH FA FB FF H K M
φ32 70 56 25 56 24 32 9 9 14
φ40 80 64 29 62 23 32 11 11 18
φ50 94 74 34 74 27 35 13 13 20
φ63 114 89 42 90 32 42 15 15 22



Bore Size N W WL P1 P2 P3 R
φ32 M12*1.75*15D M16*1.5 25 28 14 13 10
φ40 M16*2.0*20D M22*1.5 30 28 15 14 10
φ50 M20*2.5*25D M26*1.5 35 29.5 18 16 10
φ63 M27*3.0*35D M30*1.5 40 31 20 20 10

Hydraulic Thin Type Pneumatic Air Cylinder LA Side Mounting Bore Size 63mm 140kg / Cm2 3
