Place of Origin: | Ningbo China(Mainland) |
Brand Name: | FLUIDAC or OEM |
Certification: | ISO9001,CE |
Model Number: | MPS-1/8 |
Minimum Order Quantity: | 50 piece |
---|---|
Price: | USD10-- |
Packaging Details: | Boxes, Cartons,Pallets |
Delivery Time: | Within 20 days after receiving payment or deposit |
Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
Supply Ability: | 5000Pieces Per month |
Product Name: | Air Pressure Switche | Material: | Aluminum Alloy|Engineering Plastic |
---|---|---|---|
Switch Type: | Micro-switch SPDT | Regulating Model: | Downward Press Lock Type |
Pressure Range: | 0.5~10Bar | Pressure Endurance: | 15Bar |
Thread Connecting Size: | PT1/8” Male | Air Pressure Switch Type: | Air Pressure Switch Type |
Protecting Class: | IP65 | Contact Type: | Normally Open Or Normally Closed |
Highlight: | Air Pressure Switch,Pressure Controller,10Bar mechanical air pressure switch |

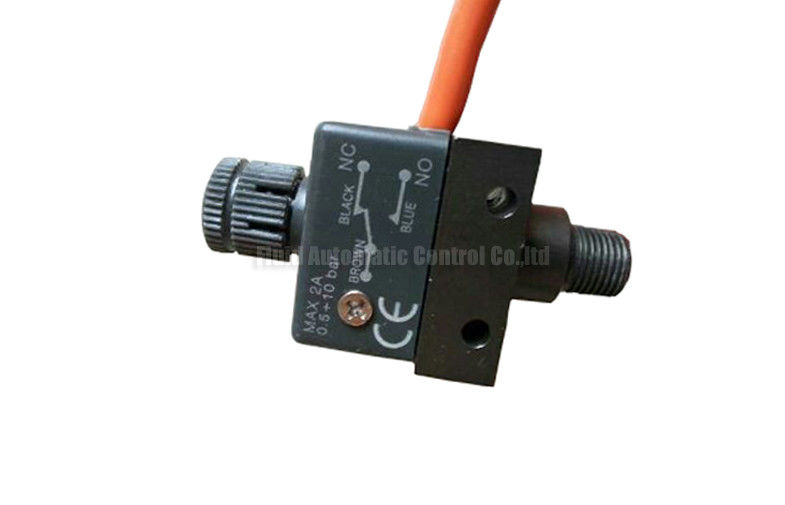

IP65 Mechanical Air Pressure Switches Aluminum 10Bar SPDT Micro-switch
MPS Series Metalwork type mechanical air pressure switch pressure range 0.5~10Bar,maximum pressure 15Bar,thread connecting male PT1/4”,protection class IP65,SPDT micro-switch without lead cable,Model no MPS-1/8
Quick Detail:
*Metalwork type MPS series mechanical air pressure switch
*Housing material engineering plastic
*Base material Aluminum alloy
*Adjusting knob material engineering plastic
*Regulating model downward press lock type
*Pressure range 0.5Bar~10Bar
*Maximum working pressure 15Bar
*Working temperature 0~50℃
*Thread connecting size PT1/8”
*Electricity connecting model out lead cable
*Can be installed any position
*Base holes can realize wall mounting
*Compact structure design,light in weight
*Protecting class IP65
*Switch type SPDT micro-switch
*Reliable electronic switch enable sensitive ON/OFF
*Low power consumption
*Stable design,long service life cycle
Applications:
MPS Metalwork type mechanical air pressure switch applicable for pressure regulating or open/shut off,it can be use with a air filter or installing any position in the pneumatic system to realize the function of ON/OFF or pressure regulating application.
Specifications:
1,Air pressure switch type:Mechanical pressure switch
2,Working medium:Compressed air non-lubricated or sustained lubricated
3,Housing material:Engineering Plastic
4,Base material:Aluminum alloy hard anodized
5,Adjusting knob material:Engineering Plastic
6,Regulating model:downward press lock type
7,Seal material:NBR
8,Pressure range 0.5~10Bar
9,Pressure Endurance:15Bar
10,Working Temperature:0~50℃
11,Thread connecting size:PT1/8” Male
12,Electricity connect model:Out lead 2 meters cable
13,Maximum current:2A
14,Maximum voltage:250V
15,Contact type:Normally open or normally closed
16,Protecting class:IP65
17,Switch type:Micro-switch SPDT
18,Mounting:direct install or base holes 2XM3 wall mounting
Dimension
Air pressure switch,pressure controller
