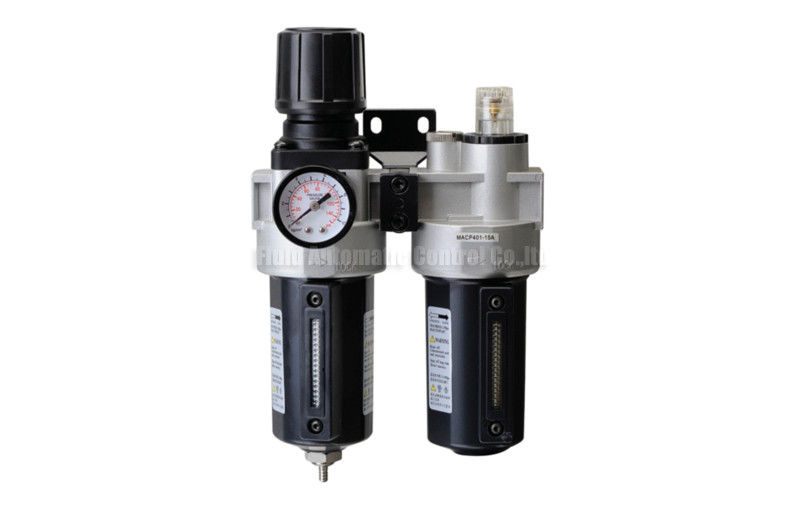

Air Service Units For Air Compressor

Air Service Units For Air Compressor

  • Air Service Units For Air Compressor
Air Service Units For Air Compressor
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: MACP401-15
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: USD6--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Material: Aluminum Die-casting Body Mounting Type: Pipe Mounting Or Bracket Support Mounting
Product Name: Pneumatic Air Lubricator Regulator Type: Diaphragm Type
Filtration Fineness: 40µ,5µ Working Pressure: 1~8.5Bar
Working Temperature: -5~60℃ Port Size: PT1/4”,PT3/8,PT1/2
High Light:

Air Preparation Equipment Unit


Air Source Treatment Unit



Pneumatic Air Lubricator Aluminum Air Service Units For Air Compressor

M Series Mindman type  air service units including air filter,air regulator,air lubricator and combination group,body material Aluminum die-casting,working pressure 1~8.5bar,filter fineness 40 micron port size PT1/4,PT3/8,PT1/2 e.g MACP401-15



Quick Detail:


*M Series mindman type air service units

*Aluminum die-casting body material

*Modular design,different combination for flexible application

*Port size PT1/4”,PT3/8,PT1/2

*Pressure range adjustable1~8.5Bar

*High pressure type 0~15Bar for option

*Filter fineness 40 Micron standard

*5 Micron filtration precision selectable

*With Manual drainer,semi-automatic drainer,automatic drainer of drainage model function for selection

*Stable design,pressure-resistance,long service life cycle




M series air service units installing between the air compressor and Pneumatic system equipment,close to pneumatic system equipment.

M series air preparation units including F&R&L(Filter and Regulator and Lubricator) FR&L(Filter regulator and Lubricator), FR(Filter Regulator), F(Filter), R(Regulator), L(Lubricator).

M Series Air service units can maintain steady of the pneumatic system pressure by air regulator,avoid the sudden change of air source pressure to do harm to the pneumatic system components. Filter can be clean the air source,separate the water and other impurity from the air source,thus improve the qaulity of air medium effectly.Lubricator supply lubricant to the pneumatic system to keep system working smooth,significantly extend the service life cycle of pneumatic system components.









Port Size

Drainage Model(For Filter)

MACP401:Mindman type Air Units Two combination Group


D:Automatic Drainer

MACT401:Mindman Air Units Type Three combination Group

MAFR401:Mindman type Air Units Filter Regulator


S:Semi-automatic Drainer

MAF401:Mindman typeFilter

MAR401:Mindman type Air Regulator


Blank:Manual Drainer

MAL401:Mindman type Air Lubricator




1,Working Medium:Air source

2,Body material:Aluminum die-casting

3,Filter bowl and Lubricator bowl material:PC

4,Filter element material:Brass

5,Bowl Guard:Aluminum alloy

6,Seal Material:NBR

7,Adjustabing knob:POM

8,Working pressure:1~8.5Bar standard,high pressure 0~15Bar available for requirement

9,Working Temperature:-5~60℃

10,Filtration fineness:40µ,5µ can be available

11,Mounting type: Pipe mounting or bracket support mounting

12,Regulator type:Diaphragm type

13,Lubricator type:Oil volume adjustable during working

14,Port size:PT1/4”,PT3/8”,PT1/2”

15,Drainage model:Manual drainer,Semi-automatic drainer,automatic drainer

16,Oil cup capacity:200cc

17,Design type:Modular


Air Service Units For Air Compressor 0

Air Service Units For Air Compressor 1

Air Service Units For Air Compressor 2

Air Service Units For Air Compressor 3

MACP Series Air Units Filter regulator and Lubricator

Air Service Units For Air Compressor 4

MACT Series Air Units Filter And Regulator and Lubricator

Air Service Units For Air Compressor 5

MAFR Series Air Unit Filter Regulator

Air Service Units For Air Compressor 6

MAR Series Air Unit Air Regulator

Air Service Units For Air Compressor 7

MAF Series Air Units Air Filter

Air Service Units For Air Compressor 8

MAL Series Air Units Air Lubricator

Air Service Units For Air Compressor 9

Air preparation equipment units,air source treatment units,air-line service units
