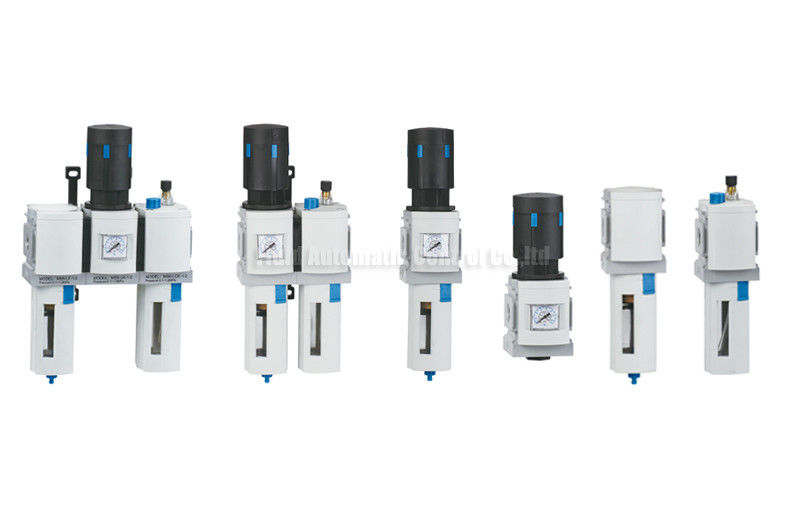

Air Service Units Air Filter / Air Regulator

Aluminum Festo Air Service Units Air Filter / Air Regulator / Air Lubricator

40mm,60mm body width MS Series FESTO type  air service units including air filter,air regulator,air lubricator and combination group,body material Aluminum die-casting,working pressure 1~10bar,filter fineness 40 micron port size G1/8~G1/2” e.g MS-4-FRC-1/4-D with auto drainer

Quick Detail:

*MS Series Festo type air service units

*Aluminum die-casting body material

*Body width 40mm,60mm selectable

*Pressure Gauge embeded,keep from collision,save space

*Modular design,Different combination for flexible application

*Port size G1/8”,G1/4”,G3/8”,G1/2”

*Pressure range adjustable 1~10Bar

*Reinforced filter bowl and oil bowl,good pressure resistance up to 1.6MPa

*Filter fineness 40 Micron,20Micron,5Micron for option

*With Manual drainer,automatic drainer of drainage model function for selection

*Stable design, long service life cycle

Applications:

MS series air service units installing between the air compressor and Pneumatic system equipment,close to pneumatic system equipment.

MS series air preparation units including F&R&L(Filter and Regulator and Lubricator) FR&L(Filter regulator and Lubricator), FR(Filter Regulator), F(Filter), R(Regulator), L(Lubricator).

MS Series Air service units can maintain steady of the pneumatic system pressure by air regulator,avoid the sudden change of air source pressure to do harm to the pneumatic system components. Filter can be clean the air source,separate the water and other impurity from the air source,thus improve the qaulity of air medium effectly.Lubricator supply lubricant to the pneumatic system to keep system working smooth,significantly extend the service life cycle of pneumatic system components.

Specifications:

SPECIFICATION

1,Working Medium:Air source

2,Body material:Aluminum die-casting

3,Filter bowl and Lubricator bowl material:PC

4,Filter element material:Brass

5,Bowl Guard:Reinforce plastic

6,Seal Material:NBR

7,Adjustabing knob:POM

8,Working pressure:1~10Bar

9,Working Temperature:-10~60℃

10,Filtration fineness:40µ,5µ,20µ can be available

11,Mounting type: Pipe mounting or bracket support mounting

12,Regulator type:Diaphragm type

13,Lubricator type:Oil volume adjustable during working

14,Port size:G1/8”,G1/4”,G3/8”,G1/2”

15,Drainage model:Manual drainer,automatic drainer

16,Filter bowl oil bowl pressure resistance:1.6Mpa

17,Flow direction:Left to right standard,Right to left direction by requirement

18,Body Width:40mm,60mm

19,Design type:Modular Design

Air preparation equipment units,air source treatment units,air-line service units
