5 Way Manual Directional Control Valve

5 Way Manual Directional Control Valve

  • 5 Way Manual Directional Control Valve
5 Way Manual Directional Control Valve
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: VHL-253-06S
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: USD8--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Body Material: Aluminum Alloy Function Type: Two Position Five Way
Max.Pressure Resistance: 1.2MPa Motion Pattern: Direct Acting
Port Size: G1/4”|G1/8” Product: Manual Directional Control Valve
Type: Spring Return Type Working Pressure: 0~1.0MPa
High Light:

Pneumatic Valve

,

Directional Control Valve

,

1.2MPa Manual Directional Control Valve

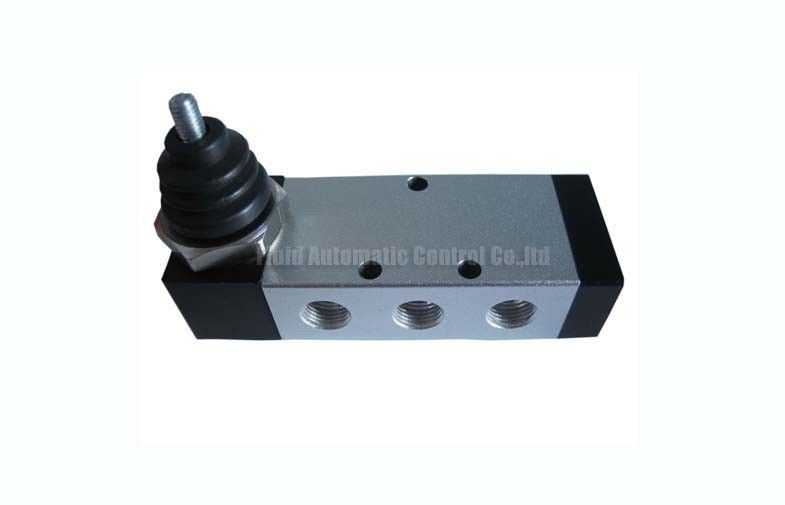

5 Way Manual Directional Control Valve VESTA Type Hand Lever Valve
VESTA type VHL series hand lever valve two positioni Five way,Three Position Five way port size G1/8”,G1/4” e.g VHL-253-06S with spacer sleeve design



Quick Detail:


*VHL series hand lever valve VESTA equvalent
*Two position Five Way and Three Postion Five way
*Spring return type for option
*Big angle safety area enlarged keep from leakage
*Smooth hand operating,small operating power
*Space sleeve design keep from friction to seal,long service life


Applications:


VHL series hand Lever valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system


Specifications:



ORDERING CODE

HLV

2

53

06

S

Type

Body Width

Function Type

Port Size

Type

HLV:VESTA type Hand Lever Valve

2:30mm

52:Two Position Five Way

06:G1/8"

S:Spring Return

08:G1/4"




SPECIFICATION

Model no

HLV Series

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Position And Way Numbers

Two Position-Five Way Three Postion Five Way

Port Size

G1/8" G1/4"

Motion Pattern

Direct Acting

Working Pressure

0~1.0MPa

Max.Pressure Resistance

1.2MPa

Operating Temperature

0~60℃


5 Way Manual Directional Control Valve 0
Pneumatic Valve,Hand Valve,Manual Operated valve
