| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | AS-02 |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD2-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 20000 Pieces Per month |
| Port Size: | G1/4”,G3/8,G1/2” | Product Name: | Pneumatic Flow Control Valve |
|---|---|---|---|
| Material: | Aluminum Alloy | Working Medium: | Compressed 40 Micron Filtered Air |
| Working Pressure: | 0.05~1.0MPa | Controlled And Free Flow: | 1670L/min |
| Effective Sectional Area: | 25.5mm² | Operating Temperature: | 5~60℃ |
| Highlight: | Flow Control Valve,Pnematic Check Valve,flow control throttle Check valve |
||

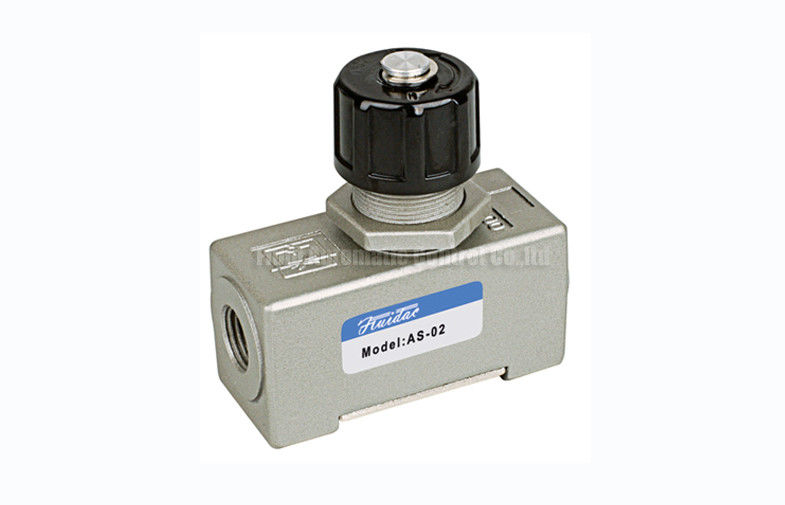

Aluminum Alloy Compact Pneumatic Flow Control Valve , G1/4-G1/2 Throttle Check Valve
AS Series Large flow rate control throttle check valve port size G1/4~G1/2 e.g AS-02 SMC Equvalent
Quick Detail:
*AS Series flow control throttle Check valve
*Body Material Aluminum Alloy
*Port Size G1/4”,G3/8,G1/2”
*Compact design,small volume,light weight
*Easy operation,sensitive of Respond
*High regulating accuracy
*Large controll flow rate up to 1670L/Min
*Flow direction one way type
*Directly pipe joint mounting,easy and convenient
*Stable design,long serive life
Applications:
AS Series flow control Non-return valve widely use in the pneumatic system to adjust the working flow rate to meet with the functional requirement of pneumatic system.
AS series flow throttle valve use for control cylinder speed,system time delay,Lubricator low oil Volume,air cushion capacity of cylinder etc.
Specifications:
|
ORDERING CODE |
|
|
AS |
02 |
|
Type |
Port Size |
|
AS:AS Series Large flow type Throttle check valve |
02:G1/4" |
|
03:G3/8" |
|
|
04:G1/2 |
|
|
SPECIFICATION |
|||
|
Model no |
AS-02 |
AS-03 |
AS-04 |
|
Working Medium |
Compressed 40 Micron Filtered Air |
||
|
Body Material |
Aluminum Alloy |
||
|
Port Size |
G1/4" |
G3/8" |
G1/2" |
|
Working Pressure |
0.05~1.0MPa |
||
|
Controlled And Free flow |
1670L/min |
||
|
Effective Sectional Area |
25.5mm² |
||
|
Operating Temperature |
5~60℃ |
||
Tag:Pneumatic Valve,Flow control valve ,Thottle Check valve
