| Product Name: | Pneumatic Tube Fittings | Material: | Stainless Steel 316L |
|---|---|---|---|
| Type: | Branch Tee|elbow|run Tee|tee|traight|universal Elbow | Pressure Resistance: | Up To 2.0MPa |
| Operating Temperature: | Up To 120℃ | Tube Size: | 4mm~12mm |
| Inch Size: | 5/32”~1/2” | Thread: | 1/8”~1/2” PT,G,NPT,Metric Thread |
| High Light: | Air Tube Connector,Pneumatic Pipe Fitting,316L material quick push in fitting |
||

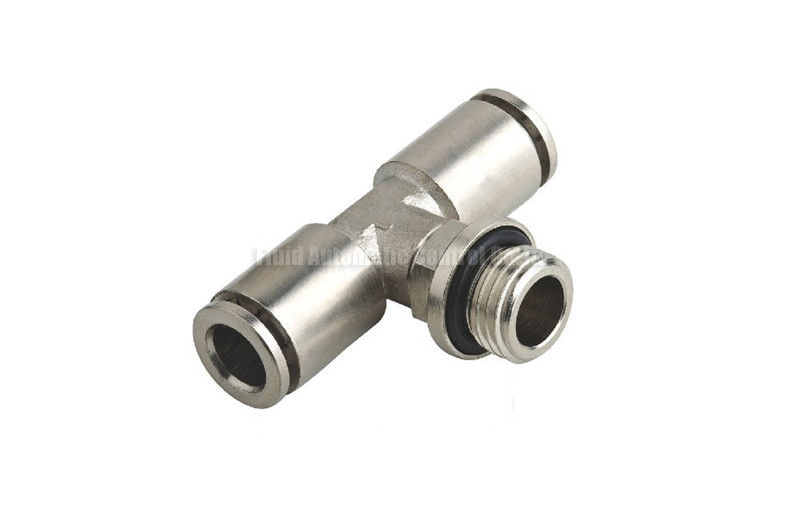

Stainless Steel Branch Tee Pneumatic Tube Fittings 1/8" Thread Size
Stainless steel 316L material quick push-in fitting straight,elbow,tee,branch tee, bulkhead type,tube size 4mm~12mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric thread,e.g SSPC8-G02
Quick Detail:
* Stainless steel 316L material quick push-in fitting
* Body material Stainless steel 316L
* Lock claw material stainless steel,tight and stable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* leak proof coated on thread to ensure good sealing peformance
* Sealing material FKM
* Temperature-resistance up to 120℃
* Pressure-resistance up to 2.0MPa
* Threads available in G,PT,NPT,METRIC
* Thread size 1/8”,1/4”,3/8”,1/2”
* Tube size available metric 4,6,8,10,12 inch 5/32,3/16,1/4,5/16,3/8,1/2
* Straight,tee,branch tee ,elbow, bulkhead type
Applications:
Stainless steel 316L material fittings used widely in metallurgy,oil industrial,chemical,textile,aviation,mechanical automation,transporation,electronics,medicine equipment,teching equipment as airline connector
Specifications:
|
Tube Outer Dia |
||||||
|
(Metric Size) |
||||||
|
Code |
4 |
6 |
8 |
10 |
12 |
14 |
|
DIA |
Ø4 |
Ø6 |
Ø8 |
Ø10 |
Ø12 |
Ø14 |
|
(Inch Size) |
||||||
|
Code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Ø5/32 |
Ø3/16 |
Ø1/4 |
Ø5/16 |
Ø3/8 |
Ø1/2 |
|
Thread Type and size |
||||||
|
Taper Thread(R PT ) |
||||||
|
Code |
01 |
02 |
03 |
04 |
06 |
|
|
DIA |
R1/8 |
R1/4 |
R3/8 |
R1/2 |
R3/4 |
|
|
G Thread |
||||||
|
Code |
G01 |
G02 |
G03 |
G04 |
G06 |
|
|
DIA |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
|
|
NPT Thread |
||||||
|
Code |
N01 |
N02 |
N03 |
N04 |
N06 |
|
|
DIA |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
|
|
(Metric Size) |
||||||
|
Code |
M5 |
M6 |
M8 |
M10 |
|
|
|
DIA |
M5X0.8 |
M6X1 |
M8X1 |
M10X1.25 |
|
|
|
MODEL |
ΦD |
R |
L1 |
L2 |
ΦD1 |
|
|
|
SSPC4-01 |
4 |
R1/8 |
7.5 |
16.8 |
10 |
3 |
10 |
|
SSPC6-01 |
6 |
R1/8 |
7.5 |
19.3 |
12 |
4 |
12 |
|
SSPC6-02 |
6 |
R1/4 |
9.5 |
19.8 |
12 |
4 |
14 |
|
SSPC8-01 |
8 |
R1/8 |
7.5 |
23.7 |
14 |
6 |
14 |
|
SSPC8-02 |
8 |
R1/4 |
9.5 |
22.2 |
14 |
6 |
14 |
|
SSPC10-02 |
10 |
R1/4 |
9.5 |
26.4 |
17 |
8 |
17 |
|
SSPC10-03 |
10 |
R3/8 |
10.5 |
22.9 |
17 |
8 |
17 |
|
SSPC12-03 |
12 |
R3/8 |
10.5 |
26.4 |
20 |
10 |
20 |
|
SSPC12-04 |
12 |
R1/2 |
13.5 |
26.4 |
20 |
10 |
21 |
|
MODEL |
ΦD |
R |
L1 |
L2 |
L3 |
ΦD1 |
|
|
SSPL4-01 |
4 |
R1/8 |
7.5 |
20 |
18.3 |
10 |
12 |
|
SSPL6-01 |
6 |
R1/8 |
7.5 |
23 |
20.3 |
12 |
12 |
|
SSPL6-02 |
6 |
R1/4 |
9.5 |
23 |
20.3 |
12 |
14 |
|
SSPL8-01 |
8 |
R1/8 |
7.5 |
23.5 |
22.3 |
14 |
12 |
|
SSPL8-02 |
8 |
R1/4 |
9.5 |
23.5 |
22.3 |
14 |
14 |
|
SSPL10-02 |
10 |
R1/4 |
9.5 |
33 |
26.4 |
17 |
17 |
|
SSPL10-03 |
10 |
R3/8 |
10.5 |
30 |
26.4 |
17 |
17 |
|
SSPL12-03 |
12 |
R3/8 |
10.5 |
31.5 |
29.4 |
20 |
17 |
|
SSPL12-04 |
12 |
R1/2 |
13.5 |
33.5 |
29.4 |
20 |
21 |
|
MODEL |
ΦD |
R |
L1 |
L2 |
L3 |
ΦD1 |
|
|
SSPB4-01 |
4 |
R1/8 |
7.5 |
20 |
36.6 |
10 |
12 |
|
SSPB6-01 |
6 |
R1/8 |
7.5 |
23 |
40.6 |
12 |
12 |
|
SSPB6-02 |
6 |
R1/4 |
9.5 |
23 |
40.6 |
12 |
14 |
|
SSPB8-01 |
8 |
R1/8 |
7.5 |
23.5 |
44.6 |
14 |
12 |
|
SSPB8-02 |
8 |
R1/4 |
9.5 |
23.5 |
44.6 |
14 |
14 |
|
SSPB10-02 |
10 |
R1/4 |
9.5 |
33 |
52.8 |
17 |
17 |
|
SSPB10-03 |
10 |
R3/8 |
10.5 |
30 |
52.8 |
17 |
17 |
|
SSPB12-03 |
12 |
R3/8 |
10.5 |
31.5 |
58.8 |
20 |
17 |
|
SSPB12-04 |
12 |
R1/2 |
13.5 |
33.5 |
58.8 |
20 |
21 |
|
MODEL |
ΦD |
ΦD1 |
L |
L1 |
|
SSPE4 |
4 |
10 |
18.3 |
36.6 |
|
SSPE6 |
6 |
12 |
20.3 |
40.6 |
|
SSPE8 |
8 |
14 |
22.3 |
44.6 |
|
SSPE10 |
10 |
17 |
26.4 |
52.8 |
|
SSPE12 |
12 |
20 |
29.4 |
58.8 |
|
MODEL |
ΦD |
R |
L1 |
L2 |
L3 |
ΦD1 |
|
|
SSPV4-01 |
4 |
R1/8 |
7.5 |
20 |
18.3 |
10 |
12 |
|
SSPV6-01 |
6 |
R1/8 |
7.5 |
23 |
20.3 |
12 |
12 |
|
SSPV6-02 |
6 |
R1/4 |
9.5 |
23 |
20.3 |
12 |
14 |
|
SSPV8-01 |
8 |
R1/8 |
7.5 |
23.5 |
22.3 |
14 |
12 |
|
SSPV8-02 |
8 |
R1/4 |
9.5 |
23.5 |
22.3 |
14 |
14 |
|
SSPV10-02 |
10 |
R1/4 |
9.5 |
33 |
26.4 |
17 |
17 |
|
SSPV10-03 |
10 |
R3/8 |
10.5 |
30 |
26.4 |
17 |
17 |
|
SSPV12-03 |
12 |
R3/8 |
10.5 |
31.5 |
29.4 |
20 |
17 |
|
SSPV12-04 |
12 |
R1/2 |
13.5 |
33.5 |
29.4 |
20 |
21 |
|
MODEL |
ΦD |
ΦD1 |
L |
L1 max |
M |
|
|
SSPM 04 |
4 |
10 |
27 |
8 |
M12X1 |
14 |
|
SSPM 06 |
6 |
12 |
29.5 |
8 |
M14X1 |
17 |
|
SSPM 08 |
8 |
14 |
32.5 |
8.5 |
M16X1 |
19 |
|
SSPM 10 |
10 |
17 |
36.8 |
9.5 |
M20X1 |
24 |
|
SSPM 12 |
12 |
20 |
39.8 |
11.5 |
M22X1 |
26 |
|
MODEL |
ΦD |
ΦD1 |
L |
|
SSPU 04 |
4 |
11 |
27 |
|
SSPU 06 |
6 |
13 |
29.5 |
|
SSPU 08 |
8 |
15 |
32.5 |
|
SSPU 10 |
10 |
18 |
36.8 |
|
SSPU 12 |
12 |
21 |
39.8 |
|
MODEL |
SLB-1/8" |
SLB-1/4" |
SLB-3/8" |
SLB-1/2" |
SLB-3/4" |
SLB-1" |
SLB-1-1/4" |
SLB-1-1/2" |
SLB-2" |
SLB-2-1/2" |
SLB-3" |
SLB-4" |
|
A |
18 |
22 |
23 |
27 |
31.5 |
37.5 |
42.5 |
48.5 |
57 |
65 |
79.3 |
100.5 |
|
B |
23.5 |
29.5 |
33 |
36.5 |
42.5 |
52 |
59.5 |
64 |
74 |
87.5 |
106.5 |
126.3 |
