| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | 2W025-08 AC220V |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD5-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 10000 Pieces Per month |
| Port Size: | G1/8”,G1/4” G3/8 | Aperture Of Flow Rate: | 2.5mm|4mm|1.2mm|2mm |
|---|---|---|---|
| Body Material: | Brass | Motion Pattern: | Direct Drive Type |
| Product Name: | 2 Way Pneumatic Solenoid Valve | Type: | Two Position Two Way |
| Voltage: | DC12V|AC220V|DC24V | Working Medium: | Air|Water|Oil|Gas |
| High Light: | Pneumatic Valve,Water Solenoid Valve,Brass G3/8 Pneumatic Solenoid Valve |
||

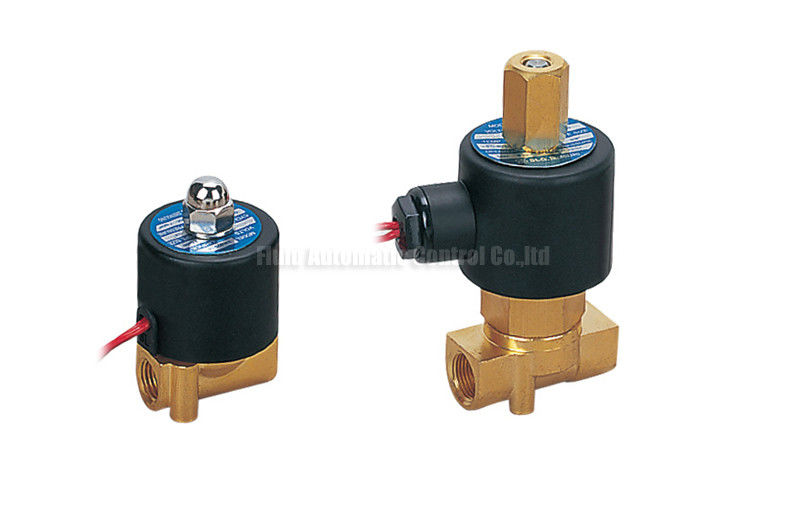

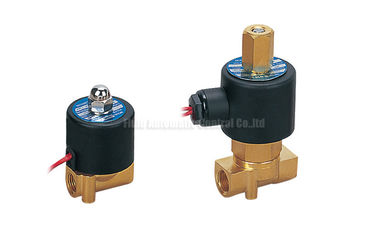

Mini Brass G3/8 2 Way Pneumatic Solenoid Valve 2mm Orifice Size
Orifice size 1.2mm,2mm 2.5mm,4mm 2W small body series solenoid valve direct acting body material Stainless steel or bras
Quick Detail:
*2W Series brass valve flow aperture size 1.2mm,2mm,2.5mm,4mm
*Two position two way directly acting
*Body stainless steel or brass for option
*Port Size G1/8”,G1/4” G3/8
*Seal with NBR,EPDM,VITON For Option
*Water-Proof coil or explosion-proof available
*Fast respond,low noise,low consumption
*Stable design,long serive life
Applications:
2W series two position two way solenoid acting as on and off switch function automatically for its working system by the involving of power electricity magnetic.
2W series widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.
Specifications:
|
ORDERING CODE |
||||||
|
2W |
025 |
08 |
B |
S |
E |
AC220V |
|
Type |
Aperture Flow Rate |
Port size |
Body Material |
Coil type |
Seal Material |
Voltage |
|
2W:2W Series Two Position Two Way Solenoid valve |
012:1.2mm |
06:G1/8" |
Blank:Brass |
Blank:Round Coil |
Blank:NBR |
DC12V |
|
020:2.0mm |
DC24V |
|||||
|
025:2.5mm |
08:G1/4" |
E:EPDM(For Steam) |
AC110V |
|||
|
2WH:2WH Series High Pressure Two Position Two Way Solenoid valve |
B:Stainless Steel |
S:Square Coil |
AC220V |
|||
|
040:4.0mm |
10:G3/8" |
V:VITON (For High Temperature and Vacuum) |
AC380V |
|||
|
AC24V |
||||||
|
SPECIFICATION |
||||||
|
Model No |
2W025-06 |
2W025-08 |
2W040-10 |
2WH012-06 |
2WH012-08 |
2WH020-10 |
|
Working Medium |
Air,Water,Oil,Gas |
|||||
|
Motion Pattern |
Direct Drive Type |
|||||
|
Initial State |
Normal Close or Normal Open |
|||||
|
Aperture of Flow Rate(mm) |
2.5 |
4 |
1.2 |
2 |
||
|
CV Value |
0.23 |
0.6 |
0.05 |
0.15 |
||
|
Joint Pipe Bore |
1/8″ |
1/4″ |
3/8″ |
1/8″ |
1/4″ |
3/8″ |
|
Operation Fluid Viscosity |
20 CST(Below) |
|||||
|
Working-pressure MPa |
Air,Water,Oil,gas: 0~0.7 |
Air,Water,Oil: 0~2.0 |
||||
|
Max. Pressure Resistance MPa |
1 |
3.5 |
||||
|
Operating Temperature ℃ |
-5 ~ 80℃ |
|||||
|
Voltage Range |
±10% |
|||||
|
Material of Body |
Brass |
|||||
|
Material of Oil Seal |
NBR,EPDM or VITON |
|||||
|
Model No |
A |
B |
C |
D |
K |
|
2W025-06 |
66 |
30 |
75 |
40.5 |
ZG1/8″ |
|
2W025-08 |
66 |
30 |
75 |
40.5 |
ZG1/4″ |
|
2W025-10 |
72.5 |
32 |
83.5 |
55 |
ZG3/8″ |
|
2WH012-06 |
66 |
30.3 |
75 |
40.5 |
ZG1/8″ |
|
2WH012-08 |
66 |
30.3 |
75 |
40.5 |
ZG1/4″ |
|
2WH020-10 |
74 |
32.2 |
85.5 |
52.5 |
ZG3/8″ |
Pneumatic Valve,Solenoid valve,brass valve two way
