| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | KQ2H08-02S |
| Minimum Order Quantity: | 50 piece |
|---|---|
| Price: | USD0.2-- |
| Packaging Details: | Boxes, Cartons,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 100000PCS Per month |
| Applicable Tubing Type: | Nylon And Polyurethane | Material: | Brass |
|---|---|---|---|
| Negative Pressure: | -750mmHg(10Torr) | Operating Temperature: | 0~60℃ |
| Pressure Resistance: | 15.3Kgf/cm²(1.5Mpa) | Product Name: | Pneumatic Tube Fittings |
| Type: | SMC Type | Working Pressure Range: | 0~10.2Kgf/cm²(1.0Mpa) |
| High Light: | Pneumatic Tube Fitting,Air Tube Connector |
||

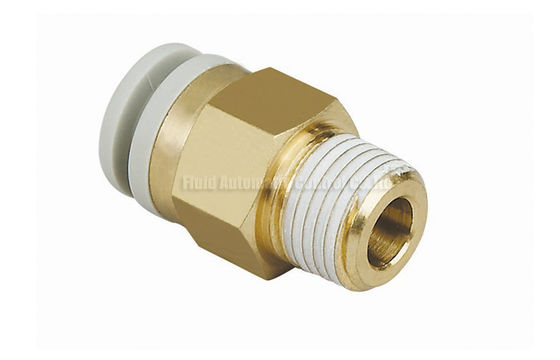

Pneumatic Tube Fittings , Air Hose Rapid Connector
KQ,KJ,AS,AKH,VHK series quick connect pneumatic fitting straight,elbow,tee,cross,triple,bulkhead,plug,reduction,Banjo,regulating type,check valve,hand valve tube O.D 4~16mm,thread size M3~1/2” G,PT,METRIC,NPT e.g KQ2H08-02S SMC interchangeable
Quick Detail:
* KQ,KJ,AS,AKH,VHK series quick connect fitting smc interchangeable
* Body material brass
* Housing material PBT,white colour and black colour selectable
* Lock claw material stainless steel,tight and stable
* Round and oval sleeve for option,colour in black and blue selectable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* leak proof coated on thread to ensure good sealing peformance
* Threads available in G,PT,NPT,METRIC
* Tube size available metric 4,6,8,10,12,16 inch 5/32,3/16,1/4,5/16,3/8,1/2
* Ttraight,tee,branch tee,run tee,elbow,universal elbow(Banjo),plug,splicer,reduction,flow regulator,swivel type,triple type,thread extended type,bulkhead type,check type.
Applications:
SMC type pneumatic quick connect fitting used widely in metallurgy,oil industrial,chemical,textile,aviation,mechanical automation,transporation,electronics,medicine equipment,teching equipment as airline connector
Specifications:
|
Specification |
|
|
Fluid Type |
Air.Vacuum |
|
Working Pressure Range |
0~10.2Kgf/cm²(1.0Mpa) |
|
Negative Pressure |
-750mmHg(10Torr) |
|
Pressure Resistance |
15.3Kgf/cm²(1.5Mpa) |
|
Operating Temperature |
0~60℃ |
|
Applicable Tubing type |
Nylon And Polyurethane |
|
Tube.O.D |
Model no |
φD |
L |
M |
Weight(g) |
Photo |
|
4 |
KQ2C04-00 |
10.4 |
17 |
16 |
3 |
|
|
6 |
KQ2C06-00 |
12.8 |
18.5 |
17 |
3 |
|
|
8 |
KQ2C08-00 |
15.2 |
20.5 |
18.5 |
4 |
|
|
10 |
KQ2C10-00 |
18.5 |
23 |
21 |
6 |
|
|
12 |
KQ2C12-00 |
20.9 |
24 |
22 |
8 |
|
|
16 |
KQ2C16-00 |
26.5 |
28 |
25 |
13 |
|
MODEL |
R |
Tube O.D |
H |
φD |
L |
A |
M |
CT(mm2) |
Weight(g) |
|
KQ2H04-M5 |
M5×0.8 |
4 |
8 |
8 |
17 |
13.9 |
12.7 |
4 |
2.4 |
|
KQ2H04-M6 |
M6×1.0 |
18 |
2.5 |
||||||
|
KQ2H04-01S |
1/8 |
10 |
-- |
22 |
18 |
16 |
5.6 |
9 |
|
|
KQ2H04-02S |
1/4 |
14 |
19.5 |
13.5 |
16 |
||||
|
KQ2H06-M5 |
M5×0.8 |
6 |
10 |
10 |
17.8 |
14.7 |
13.5 |
4 |
3.3 |
|
KQ2H06-M6 |
M6×1.0 |
19 |
14.9 |
3.4 |
|||||
|
KQ2H06-01S |
1/8 |
12 |
-- |
22.5 |
18.5 |
17 |
13.1 |
16 |
|
|
KQ2H06-02S |
1/4 |
14 |
23 |
17 |
14 |
||||
|
KQ2H06-03S |
3/8 |
17 |
22 |
15.5 |
27 |
||||
|
KQ2H08-01S |
1/8 |
8 |
14 |
-- |
28 |
24 |
18.5 |
26.1 |
21 |
|
KQ2H08-02S |
1/4 |
26.5 |
20.5 |
19 |
|||||
|
KQ2H08-03S |
3/8 |
17 |
22 |
15.5 |
26 |
||||
|
KQ2H10-01S |
1/8 |
10 |
17 |
-- |
30 |
26 |
21 |
26.1 |
19 |
|
KQ2H10-02S |
1/4 |
33.5 |
27.5 |
41.5 |
30 |
||||
|
KQ2H10-03S |
3/8 |
17 |
29 |
22.5 |
|||||
|
KQ2H10-04S |
1/2 |
22 |
27 |
19 |
53 |
||||
|
KQ2H12-02S |
1/4 |
12 |
18 |
-- |
34.5 |
28.5 |
22 |
58.3 |
42 |
|
KQ2H12-03S |
3/8 |
-- |
30 |
23.5 |
34 |
||||
|
KQ2H12-04S |
1/2 |
22 |
22 |
51 |
|||||
|
KQ2H16-03S |
3/8 |
16 |
24 |
25.7 |
39.5 |
33 |
25 |
81 |
61 |
|
KQ2H16-04S |
1/2 |
24 |
35.5 |
27.5 |
113 |
47 |
|
MODEL |
TUBE O.D |
R |
H |
φD1 |
φD2 |
L1 |
L2 |
A |
M |
CT(mm2) |
WEIGHT(g) |
|
KQ2L04-M5 |
4 |
M5×0.8 |
7 |
- |
15.6 |
15.6 |
13.7 |
15.3 |
12.7 |
3.5 |
2.7 |
|
KQ2L04-M6 |
M6×1.0 |
8 |
14.7 |
3.6 |
|||||||
|
KQ2L04-01S |
1/8 |
10 |
10 |
18 |
18 |
22 |
23 |
16 |
4.2 |
10 |
|
|
KQ2L04-02S |
1/4 |
14 |
26 |
25 |
19 |
||||||
|
KQ2L06-M5 |
6 |
M5×0.8 |
7 |
- |
16.1 |
16.1 |
14.7 |
17.4 |
13.5 |
3.5 |
3.2 |
|
KQ2L06-M6 |
M6×1.0 |
8 |
15.7 |
4.1 |
|||||||
|
KQ2L06-01S |
1/8 |
10 |
10 |
20 |
20 |
23 |
25.5 |
17 |
11.4 |
12 |
|
|
KQ2L06-02S |
1/4 |
14 |
27 |
27.5 |
22 |
||||||
|
KQ2L06-03S |
8 |
3/8 |
17 |
29 |
29 |
18.5 |
33 |
||||
|
KQ2L08-01S |
1/8 |
12 |
12 |
23 |
23 |
24.5 |
28 |
21.6 |
13 |
||
|
KQ2L08-02S |
1/4 |
14 |
28.6 |
30 |
21 |
||||||
|
KQ2L08-03S |
3/8 |
17 |
30.5 |
31.5 |
35 |
||||||
|
KQ2L10-01S |
10 |
1/8 |
17 |
17 |
26.5 |
26.5 |
27 |
32 |
21 |
21.6 |
25 |
|
KQ2L10-02S |
1/4 |
30 |
33 |
35.2 |
26 |
||||||
|
KQ2L10-03S |
3/8 |
32 |
34.5 |
36 |
|||||||
|
KQ2L10-04S |
1/2 |
22 |
36 |
37 |
63 |
||||||
|
KQ2L12-02S |
12 |
1/4 |
17 |
17 |
28.5 |
28.5 |
31 |
35.5 |
22 |
50.2 |
28 |
|
KQ2L12-03S |
3/8 |
33 |
37 |
38 |
|||||||
|
KQ2L12-04S |
1/2 |
22 |
37 |
39.5 |
65 |
||||||
|
KQ2L16-03S |
16 |
3/8 |
22 |
27 |
20.9 |
34 |
38 |
44.5 |
25 |
70 |
101 |
|
KQ2L16-04S |
1/2 |
22 |
41 |
46 |
105 |
|
MODEL |
TUBE O.D |
φD |
L |
M |
CT(mm2) |
WEIGHT(g) |
|
KQ2H04-00 |
4 |
10.4 |
32.5 |
16 |
5.6 |
3 |
|
KQ2H06-00 |
6 |
12.8 |
34.5 |
17 |
13.1 |
4 |
|
KQ2H08-00 |
8 |
15.2 |
38.5 |
18.5 |
26.1 |
6 |
|
KQ2H10-00 |
10 |
18.5 |
42.5 |
21 |
41.5 |
11 |
|
KQ2H12-00 |
12 |
20.9 |
44.5 |
22 |
58.3 |
14 |
|
MODEL |
TUBE O.D |
T |
H1 |
H2 |
B |
E |
φD |
Mounting hole |
M |
CT(mm2) |
Weight(g) |
|
KQ2E04-00 |
4 |
M12×1 |
14 |
14 |
18.5 |
31 |
10.4 |
13 |
16 |
5.6 |
26 |
|
KQ2E06-00 |
6 |
M14×1 |
17 |
17 |
20.5 |
34 |
12.8 |
15 |
17 |
13.1 |
33 |
|
KQ2E08-00 |
8 |
M16×1 |
17 |
19 |
23.5 |
38.5 |
15.2 |
17 |
18.5 |
26.1 |
52 |
|
KQ2E10-00 |
10 |
M20×1 |
22 |
24 |
26.5 |
43.5 |
18.5 |
21 |
21 |
41.5 |
70 |
|
KQ2E12-00 |
12 |
M22×1 |
24 |
27 |
28.5 |
45.5 |
20.9 |
23 |
22 |
58.3 |
90 |
|
MODEL |
TUBE O.D |
R |
H |
φD1 |
φD2 |
L1 |
L2 |
A |
M |
CT(mm2) |
Weight(g) |
|
KQ2T04-M5 |
4 |
M5×0.8 |
7 |
9.3 |
-- |
15.6 |
13.7 |
15.3 |
12.7 |
4.5 |
3.5 |
|
KQ2T04-M6 |
M6×1.0 |
8 |
14.7 |
4.4 |
|||||||
|
KQ2T04-01S |
1/8 |
10 |
10.4 |
10 |
18 |
22 |
23 |
16 |
6 |
13 |
|
|
KQ2T04-02S |
1/4 |
14 |
26 |
25 |
19 |
||||||
|
KQ2T06-M5 |
6 |
M5×0.8 |
7 |
11.6 |
-- |
16.1 |
14.7 |
17.4 |
13.5 |
4.5 |
4.4 |
|
KQ2T06-M6 |
M6×1.0 |
8 |
15.7 |
5.3 |
|||||||
|
KQ2T06-01S |
1/8 |
10 |
12.8 |
10 |
20 |
23 |
25.5 |
17 |
13.9 |
12 |
|
|
KQ2T06-02S |
1/4 |
14 |
27 |
27.5 |
20 |
||||||
|
KQ2T06-03S |
3/8 |
17 |
29 |
29 |
34 |
||||||
|
KQ2T08-01S |
8 |
1/8 |
12 |
15.2 |
12 |
23 |
24.5 |
28 |
18.5 |
26.3 |
14 |
|
KQ2T08-02S |
1/4 |
14 |
28.5 |
30 |
22 |
||||||
|
KQ2T08-03S |
3/8 |
17 |
30.5 |
31.5 |
36 |
||||||
|
KQ2T10-01S |
10 |
1/8 |
17 |
18.5 |
17 |
26.5 |
27 |
32 |
21 |
40.8 |
31 |
|
KQ2T10-02S |
1/4 |
30 |
33 |
29 |
|||||||
|
KQ2T10-03S |
3/8 |
32 |
345.5 |
39 |
|||||||
|
KQ2T10-04S |
1/2 |
22 |
36 |
37 |
66 |
||||||
|
KQ2T12-02S |
12 |
1/4 |
17 |
20.9 |
17 |
28.5 |
31 |
39.5 |
22 |
57.2 |
31 |
|
KQ2T12-03S |
3/8 |
33 |
41 |
||||||||
|
KQ2T12-04S |
1/2 |
22 |
37 |
68 |
|
MODEL |
TUBE O.D |
φD |
L |
Q |
M |
CT(mm2) |
Weight(g) |
|
KQ2T04-00 |
4 |
10.4 |
18 |
4.5 |
16 |
6.4 |
7 |
|
KQ2T06-00 |
6 |
12.8 |
20 |
5.3 |
17 |
13.4 |
10 |
|
KQ2T08-00 |
8 |
15.2 |
23 |
6 |
18.5 |
25.6 |
15 |
|
KQ2T10-00 |
10 |
18.5 |
26.5 |
6.8 |
21 |
40 |
25 |
|
KQ2T12-00 |
12 |
20.9 |
28.5 |
7.5 |
22 |
57.4 |
29 |
|
MODEL |
TUBE O.D |
φD |
L1 |
L2 |
P |
M |
CT(mm2) |
Weight(g) |
|
KQ2U04-00 |
4 |
10.4 |
34 |
18 |
10.4 |
16 |
4.2 |
7 |
|
KQ2U06-00 |
6 |
12.8 |
37 |
20 |
12.8 |
17 |
13.4 |
9 |
|
KQ2U08-00 |
8 |
15.2 |
42.5 |
24.5 |
15.2 |
18.5 |
25.6 |
11 |
|
KQ2U10-00 |
10 |
18.5 |
48 |
27.5 |
18.5 |
21 |
40 |
16 |
|
KQ2U12-00 |
12 |
20.9 |
51 |
30 |
20.9 |
22 |
57.4 |
23 |
|
MODEL |
TUBE O.D |
R |
H |
φD |
L |
P |
A |
M |
CT(mm2) |
Weight(g) |
|
KQ2U04-M5 |
4 |
M5×0.8 |
11 |
10.4 |
39.5 |
10.4 |
36 |
16 |
2.2 |
4 |
|
KQ2U04-M6 |
M6×1.0 |
40 |
10 |
|||||||
|
KQ2U04-01S |
1/8 |
42 |
38 |
4.2 |
11 |
|||||
|
KQ2U04-02S |
1/4 |
14 |
46 |
40 |
20 |
|||||
|
KQ2U06-M5 |
6 |
M5×0.8 |
13 |
12.8 |
42.5 |
12.8 |
39 |
17 |
2.2 |
12 |
|
KQ2U06-M6 |
M6×1.0 |
43 |
||||||||
|
KQ2U06-01S |
1/8 |
45.5 |
41.5 |
13.4 |
11 |
|||||
|
KQ2U06-02S |
1/4 |
14 |
49 |
43 |
21 |
|||||
|
KQ2U06-03S |
3/8 |
17 |
51 |
44.5 |
34 |
|||||
|
KQ2U08-01S |
8 |
1/8 |
17 |
15.2 |
52.5 |
15.2 |
48.5 |
18.5 |
25.6 |
15 |
|
KQ2U08-02S |
1/4 |
55.5 |
48.5 |
23 |
||||||
|
KQ2U08-03S |
3/8 |
56.5 |
50 |
35 |
||||||
|
KQ2U10-02S |
10 |
1/4 |
19 |
18.5 |
61 |
18.5 |
55 |
21 |
40 |
30 |
|
KQ2U10-03S |
3/8 |
62 |
55.5 |
40 |
||||||
|
KQ2U10-04S |
1/2 |
22 |
65 |
57 |
65 |
|||||
|
KQ2U12-02S |
12 |
1/4 |
22 |
20.9 |
64.5 |
20.9 |
58.5 |
22 |
57.4 |
32 |
|
KQ2U12-03S |
3/8 |
65.5 |
59 |
40 |
||||||
|
KQ2U12-04S |
1/2 |
68.5 |
60.5 |
65 |
|
MODEL |
T |
TUBE O.D |
H |
L |
A |
M |
CT(mm2) |
Weight(G) |
|
KJH 04-J3 |
M3×0.5 |
4 |
8 |
16.3 |
13.7 |
12.7 |
1.4 |
1.6 |
|
KJH 04-J5 |
M3×0.8 |
18.7 |
15.6 |
4 |
2.7 |
|||
|
KJH 04-01S |
R(PT)1/8 |
9.8 |
19.7 |
15.7 |
5.4 |
|||
|
KJH 06-J5 |
M3×0.8 |
6 |
10 |
19.5 |
16.4 |
13.5 |
4 |
3.3 |
|
KJH 06-01S |
R(PT)1/8 |
20 |
16 |
10 |
5.2 |
|
MODEL |
T |
TUBE O.D |
H |
H |
L |
A |
M |
CT(mm2) |
Weight(G) |
|
KJS 04-M3 |
M3×0.5 |
4 |
8 |
1.5 |
16.3 |
13.7 |
12.7 |
1.4 |
1.6 |
|
KJS 04-M5 |
M5×0.8 |
2.5 |
18.7 |
15.6 |
4 |
2.7 |
|||
|
KJS 04-01S |
R(PT)1/8 |
9.8 |
3 |
19.7 |
15.7 |
5.4 |
|||
|
KJS 06-M5 |
M5×0.8 |
6 |
10 |
2.5 |
19.5 |
16.4 |
13.5 |
4 |
3.3 |
|
KJS 06-01S |
R(PT)1/8 |
4 |
20 |
16 |
10 |
5.2 |
|
MODEL |
TUBE O.D |
φD1 |
φD2 |
L1 |
L2 |
L3 |
M1 |
Weight(G) |
|
|
MAX. |
MIN. |
||||||||
|
AS1001F-04 |
4 |
9.3 |
10 |
39.2 |
5.2 |
24.2 |
21.4 |
12.7 |
7 |
|
AS1001F-06 |
6 |
11.6 |
11.8 |
40.7 |
6.2 |
25.2 |
22.4 |
13.5 |
8 |
|
AS2001F-04 |
4 |
9.3 |
40.7 |
5.2 |
32.6 |
27.6 |
12.7 |
12 |
|
|
AS2001F-06 |
6 |
11.6 |
44.8 |
6.3 |
33.7 |
28.7 |
13.5 |
13 |
|
|
MODEL |
TUBE O.D |
T |
Hע1) |
φD1 |
φD2 |
L1 |
L2 |
L3 |
L4 |
ע2)A |
M1 |
Weight(G) |
||
|
MAX. |
MIN. |
MAX. |
MIN. |
|||||||||||
|
AS1201F-M3-04 |
4 |
M5×0.5 |
5.5 |
9.3 |
7.2 |
16.1 |
19.7 |
10 |
26.6 |
24.1 |
24 |
21.5 |
12.7 |
4 |
|
AS1201F-M5-04 |
4 |
M5×0.8 |
8 |
9.3 |
9.6 |
17.3 |
22.1 |
12.3 |
28.6 |
28.6 |
25 |
22.2 |
12.7 |
7 |
|
AS1201F-M5-06 |
6 |
11.6 |
18.1 |
11.7 |
13.5 |
|||||||||
|
AS2201F-01-04S |
4 |
R(PT)1/8 |
12(12.7) |
9.3 |
14.2 |
20.4 |
27.5 |
14.3 |
36.1 |
31.1 |
32.1 |
27.1 |
12.7 |
17 |
|
AS2201F-01-06S |
6 |
11.6 |
13.5 |
|||||||||||
|
AS2201F-01-08S |
8 |
15.2 |
25.3 |
32.4 |
18.5 |
19 |
||||||||
|
AS2201F-01-10S |
10 |
18.5 |
33.1 |
40.2 |
15 |
21 |
21 |
|||||||
|
AS2201F-02-04S |
4 |
R(PT)1/4 |
17(17.5) |
10.4 |
18.5 |
25.2 |
34.4 |
18.2 |
40.4 |
35.4 |
34.4 |
29.4 |
16 |
32 |
|
AS2201F-02-06S |
6 |
12.8 |
17 |
|||||||||||
|
AS2201F-02-08S |
8 |
15.2 |
27.2 |
36.4 |
18.5 |
34 |
||||||||
|
AS2201F-02-10S |
10 |
18.5 |
33.9 |
43.2 |
20 |
21 |
36 |
|||||||
|
AS3201F-02-06S |
6 |
19 |
12.8 |
23 |
27.8 |
39.3 |
21.8 |
48.8 |
48.8 |
42.8 |
37.8 |
17 |
60 |
|
|
AS3201F-02-08S |
8 |
15.2 |
29.5 |
41 |
18.5 |
63 |
||||||||
|
AS3201F-02-10S |
10 |
18.5 |
31.8 |
43.3 |
21 |
67 |
||||||||
|
AS3201F-02-12S |
12 |
20.9 |
32.8 |
44.3 |
22 |
69 |
||||||||
|
AS3201F-03-06S |
6 |
R(PT)3/8 |
19 |
12.8 |
23 |
27.8 |
39.3 |
20.9 |
46.5 |
44.5 |
40.2 |
35.2 |
17 |
55 |
|
AS3201F-03-08S |
8 |
15.2 |
29.5 |
41 |
18.5 |
57 |
||||||||
|
AS3201F-03-10S |
10 |
18.5 |
31.8 |
43.3 |
21 |
59 |
||||||||
|
AS3201F-03-12S |
12 |
20.9 |
32.8 |
44.3 |
22 |
61 |
||||||||
|
AS4201F-04-10S |
10 |
R(PT)1/2 |
24(23.8) |
18.5 |
28.6 |
33.6 |
47.9 |
25.4 |
57.6 |
50.1 |
49.6 |
42.1 |
21 |
100 |
|
AS4201F-04-12S |
12 |
20.9 |
34.6 |
48.9 |
22 |
101 |
||||||||
VKH Hand Valve
AKH Series Check Valve
Pneumatic fitting,air tube fitting,quick connect fitting
Contact Person: Mr. JOHNNY CHEN
Tel: 86-574-88871069
Fax: 86-574-88882296
