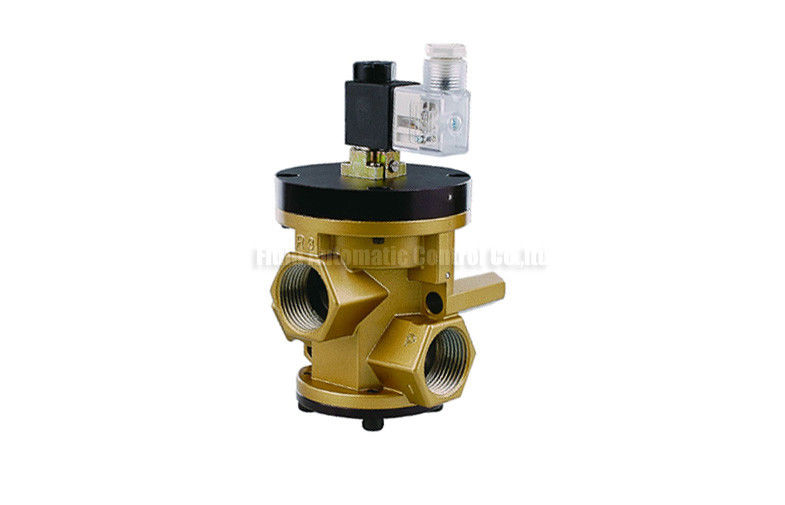

G1/2" Poppet Solenoid Valve Two Position Three Way For Pneumatic Brake System

G1/2" Poppet Solenoid Valve Two Position Three Way For Pneumatic Brake System

  • G1/2" Poppet Solenoid Valve Two Position Three Way For Pneumatic Brake System
G1/2" Poppet Solenoid Valve Two Position Three Way For Pneumatic Brake System
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: SPV-15
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: USD20--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 100000 Pieces Per month
Contact Now
Detailed Product Description
Port Size: G3/8~G1 Type: Two Position Three Way
Coil Voltage: 24V|12VDC|24VAC|24VDC|110VAC|220VAC Material: Aluminum
Motion Pattern: Stop Structure/stop Structure Product Name: Poppet Solenoid Valve
High Light:

Pneumatic Solenoid Valve

,

Solenoid Operated Valve

,

poppet Solenoid valve stop structure

G1/2" Poppet Solenoid Valve Two Position Three Way For Pneumatic Brake System

Poppet SPV series stop structure two position three way port size G3/8~G1 e.g SPV-15 with big flow rate





Quick Detail:



* SPV series poppet Solenoid valve

* Aluminum alloy material Valve Body

* Two position Three way

* Motion pattern stop structure

 * Stop structure keep from friction,long service life ensured

* Socket type electricity connection and Outlead wire type for selectable

* Air operated type available



Applications:



SPV Poppet type solenoid valve with stop structure can applicable in the harsh working environment,it can be use in the brake pneumatic system



Specifications:



ORDERING CODE

SPV

15

AC220V

W

Type

Joint Port size

Voltage

Electricity Connect Form

SPV:Stop Structure Poppet type Solenoid  valve two position three way

10:G3/8"

AC220V:220VAC

Blank:Standard Connector

15:G1/2"

DC24V:24VDC

LD:Brown Din Connector with Light Indicator

20:G3/4"

AC110V:110VAC

LD1:White Din Connector With Light Indicator

25:G1"

DC12V:12VDC

W:Out-leading Wire

AC24V:24VAC





SPECIFICATION

Model no

SPV-10

SPV-15

SPV-20

SPV-25

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Position And Way Numbers

Two Position Three Way

Port Size

G3/8"

G1/2"

G3/4"

G1"

Motion Pattern

Stop type

Working Pressure

0~1.0MPa

Pressure Endurance

1.5MPa

Operating Temperature

—5~80℃

Voltage Tolerance

±10%

Insulation&Protection Class

F Class IP65





G1/2" Poppet Solenoid Valve Two Position Three Way For Pneumatic Brake System 0

G1/2" Poppet Solenoid Valve Two Position Three Way For Pneumatic Brake System 1



Pneumatic valve, solenoid valve,Poppet Valve
