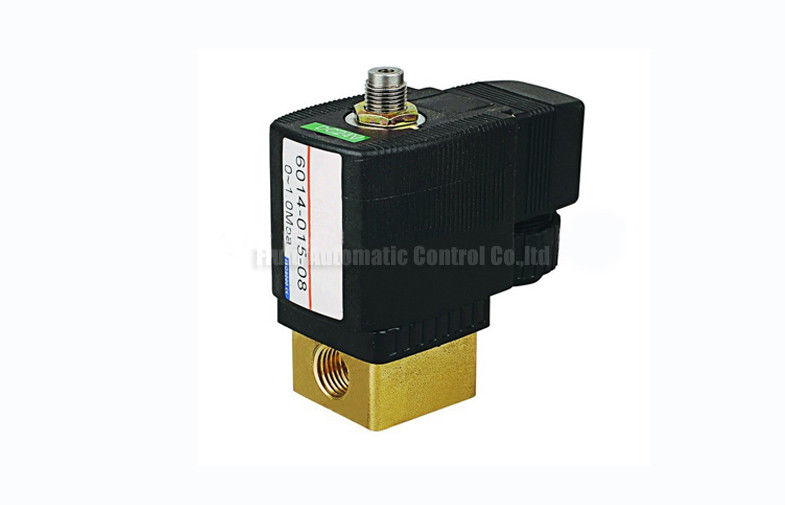

1.5mm G1/4" Three Way Miniature Solenoid Operated Directional Control Valve For Nitrogen

1.5mm G1/4" Three Way Miniature Solenoid Operated Directional Control Valve For Nitrogen

  • 1.5mm G1/4"  Three  Way Miniature  Solenoid Operated Directional Control Valve For Nitrogen
1.5mm G1/4"  Three  Way Miniature  Solenoid Operated Directional Control Valve For Nitrogen
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: B6014-01-B-AC220V
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: USD5--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 10000 Pieces Per month
Contact Now
Detailed Product Description
Orifice Size: 1mm,1.5mm,2mm,2.5mm Port Size: G1/8”,G1/4”
Coil Voltage: 24V|12VDC|24VAC|24VDC|110VAC|220VAC Material: Brass
Product Name: Solenoid Operated Valve Application: Nitrogen Maker Machine
High Light:

Pneumatic Solenoid Valve

,

Pneumatic Control Valve

,

G1/4" Mini Type Solenoid Valve

1.5mm G1/4" Three Way Miniature Solenoid Operated Directional Control Valve For Nitrogen

Orifice size 1mm,1.5mm,2mm,2.5mm mini type solenoid valve two position Three way port size G1/8”,G1/4” e.g B6014-01-B-AC220V



Quick Detail:



* B6014 mini type Solenoid valve orifice size 1mm,1.5mm,2mm,2.5mm
* Two position three way direct acting type
* Body material brass
* Port Size G1/8”,G1/4”
* Miniature body design,small volume,easy for operating
* Seal NBR,EPDM,VITON for option
* Fast respond,low noise,low consumption
* Stable design,long serive life


Applications:



B6014 seires solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion
B6014 two position three way mini valve espcially use in nitrogen maker machine and equipment.

1.5mm G1/4"  Three  Way Miniature  Solenoid Operated Directional Control Valve For Nitrogen 0

Specifications:




ORDERING CODE

B6014

01

06

V

AC220V

Type

Aperture flow rate

Port Size

Seal type

Voltage

B6014: type Two Position Three Way Solenoid valve

01:1mm

06:G1/8"

N:NBR

AC220V:220VAC

015:1.5mm

DC24V:24VDC

B:Sub-Base connect

E:EPDM

AC110V:110VAC

02:2mm

AC380V:380VAC

025:2.5mm

08:G1/4"

V:VITON

DC12V:12VDC

AC24V:24VAC



SPECIFICATION

Model

Orifice size(mm)

Port Size

Working Pressure(Mpa)

Operating Temperature(℃)

CV Value

Valve Body Material

6014-01-B

1mm

Sub-Base connect

0~1.6

NBR:5~80           VITON:–10~150 EPDM:–5~120

0.08

Brass

6014-015-B

1.5mm

0~1

0.13

6014-02-B

2mm

0~0.8

0.13

6014-025-B

2.5mm

0~0.6

0.18

6014-01-06

1mm

G1/8"

0~1.6

0.08

6014-015-06

1.5mm

0~1

0.13

6014-02-06

2mm

0~0.8

0.13

6014-025-06

2.5mm

0~0.6

0.18

6014-01-08

1mm

G1/4"

0~1.6

0.08

6014-015-08

1.5mm

0~1

0.13

6014-02-08

2mm

0~0.8

0.13

6014-025-08

2.5mm

0~0.6

0.18


1.5mm G1/4"  Three  Way Miniature  Solenoid Operated Directional Control Valve For Nitrogen 1
1.5mm G1/4"  Three  Way Miniature  Solenoid Operated Directional Control Valve For Nitrogen 2
Pneumatic Valve,Solenoid valve, Nitrogen Valve
