| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | KLA-08 |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD2-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 20000 Pieces Per month |
| Port Size: | G1/8 | Type: | One Way |
|---|---|---|---|
| Material: | Aluminum Alloy | Operating Temperature: | 0~60℃ |
| Product Name: | Pneumatic Flow Control Valve | Working Pressure: | 0.15~0.8MPa |
| High Light: | Flow Control Valve,Pneumatic Throttle Valve |
||

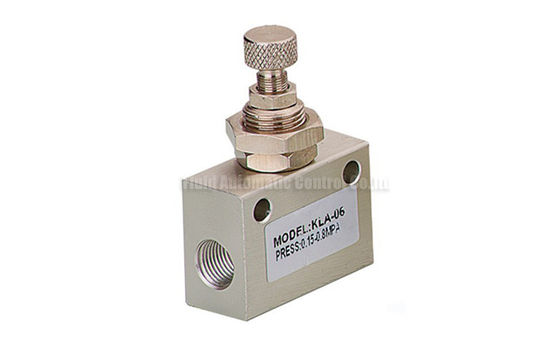

KLA Throttle Check Valve G1/4" For Air Flow Control System
KLA Series flow control throttle check valve with Aluminum alloy body material port size G1/8~G2 e.g KLA-08
Quick Detail:
* KLA Series flow control throttle check valve
* Body Material Aluminum Alloy
* Port Size G1/8”,G1/4”,G3/8,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”
* Compact design,small volume,light weight
* Easy operation,sensitive of Respond
* High regulating accuracy
* Flow direction one way type
* Directly pipe joint mounting,easy and convenient
* Stable design,long serive life
Applications:
KLA Series flow control valve widely use in the pneumatic system to adjust the working flow rate to meet with the functional requirement of pneumatic system.
KLA series flow throttle valve use for control cylinder speed,system time delay,Lubricator low oil Volume,air cushion capacity of cylinder etc.
Specifications:
|
ORDERING CODE |
|
|
KLA |
08 |
|
Type |
Port Size |
|
KLA:KLA Series Flow Regulating check valve |
06:G1/8 |
|
08:G1/4" |
|
|
10:G3/8" |
|
|
15:G1/2" |
|
|
20:G3/4" |
|
|
25:G1" |
|
|
32:G1-1/4" |
|
|
40"G1-1/2" |
|
|
50"G2" |
|
|
SPECIFICATION |
|
|
Model no |
KLA Series |
|
Working Medium |
Compressed 40 Micron Filtered Air |
|
Body Material |
Aluminum Alloy |
|
Port Size |
G1/8"~G2" |
|
Working Pressure |
0.15~0.8MPa |
|
Operating Temperature |
0~60℃ |
|
Model No |
L |
L1 |
H |
B |
2-M(Joint Thread) |
E |
D |
d |
|
KLA-06 |
40 |
32 |
61~70 |
20 |
G1/8 |
16 |
4 |
4.2 |
|
KLA-08 |
40 |
32 |
61~70 |
20 |
G1/4 |
|||
|
KLA-10 |
50 |
37 |
79~88 |
25 |
G3/8 |
19.5 |
6 |
5 |
|
KLA-15 |
60 |
45 |
88-102 |
28 |
G1/2 |
25 |
7.5 |
7.2 |
|
KLA-20 |
120 |
60 |
127~139 |
58 |
G3/4 |
29 |
9 |
7 |
|
KLA-25 |
120 |
60 |
127~139 |
58 |
G1 |
|||
|
KLA-32 |
160 |
82 |
207~225 |
78 |
G1-1/4 |
— |
— |
— |
|
KLA-40 |
160 |
82 |
206~224 |
78 |
G1-1/2 |
— |
— |
— |
|
KLA-50 |
168 |
90 |
204~222 |
95 |
G2 |
— |
— |
— |
Pneumatic Valve,Flow control valve ,Thottle check valve
