FENG Series Units Linear Guides 100mm For ISO Standard Cylinder Plain Bearing

FENG Series Units Linear Guides 100mm For ISO Standard Cylinder Plain Bearing

  • FENG Series Units Linear Guides 100mm For ISO Standard Cylinder Plain Bearing
FENG Series Units Linear Guides 100mm For ISO Standard Cylinder Plain Bearing
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: FENG-63-600-GF
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 1000PCS per Month
Contact Now
Detailed Product Description
Type: Guide Unit For ISO 15552 Piston Diameter: 32~100mm
Stroke: 10~600mm Guidance: Plain-bearing Guide/Recirulating Ball Bearing Guide
Type Of Mounting: Female Thread Mounting Position: Optional
Ambient Temperature: -20~+80℃ Material: Aluminium Alloy
High Light:

FENG Series Units Linear Guides

,

100mm Units Linear Guides

,

Cylinder Plain Bearing Guide

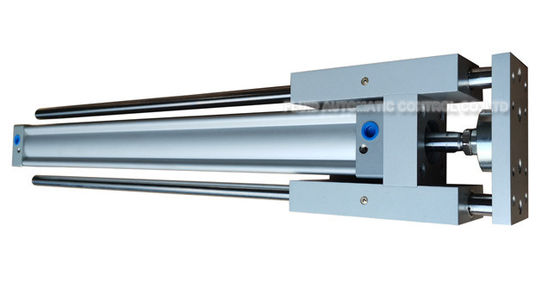

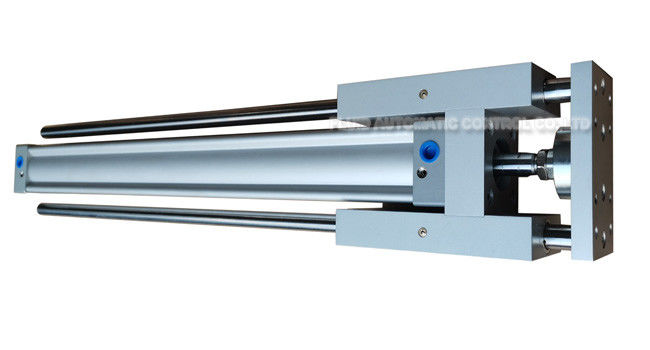

FENG Series Guide Units For ISO Standard Cylinder Plain-bearing Guide

Plain-bearing guide, size:63 stroke:10mm~600mm with optional mounting position e.g. FENG-63-600-GF+SI63-600



Features:

  • Plain-bearing guide or recirculating ball bearing guide for optional
  • Protecting ISO standard cylinders against rotation at high torque load
  • With high guide precision
  • Optional mounting positions available.



Ordering Code:

FENG 63 600 GF
Type:
FENG: guide unit for ISO 15552
Piston Diameter(mm): 32~100mm Stroke(mm): 10~600mm Guidance:
GF: Plain-bearing guide
KF: Recirulating ball bearing guide



Specification:

Type FENG-
Piston diameter 32 40 50 63 80 100
Stroke(mm) 10~600
Design Guide
Guidance Plain-bearing/Recirculating ball bearing guide
Type of mounting Female thread
Mounting position Any
Ambient temperature - 20 ~ +80℃

FENG Series Units Linear Guides 100mm For ISO Standard Cylinder Plain Bearing 0
