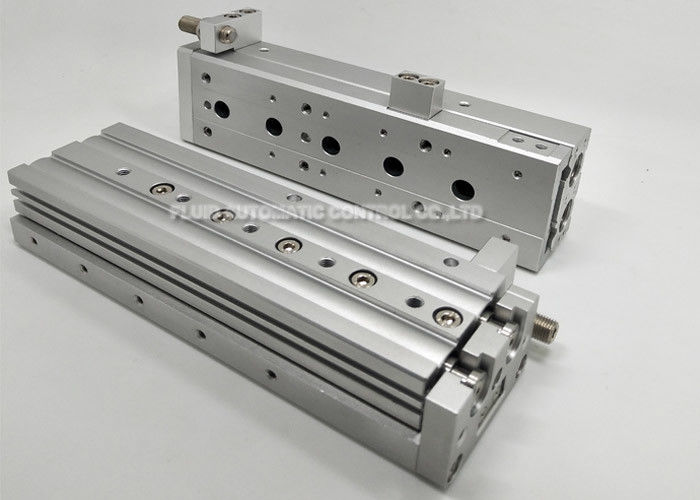

MXS Series 6mm Double Acting Pneumatic Air Cylinder Slide Table Stroke Adjustable

MXS Series 6mm Double Acting Pneumatic Air Cylinder Slide Table Stroke Adjustable

  • MXS Series 6mm Double Acting Pneumatic Air Cylinder Slide Table Stroke Adjustable
MXS Series 6mm Double Acting Pneumatic Air Cylinder Slide Table Stroke Adjustable
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: MXS 12-50
Payment & Shipping Terms:
Minimum Order Quantity: 3 piece
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 5000 Pieces Per month
Contact Now
Detailed Product Description
Bore Size: 6mm~25mm Motion Pattern: Double Action
Operating Pressure Range: 0.15~0.7MPa Cushion: Rubber Buffer
Ambient And Fluid Temperature: -10 ~ +60℃ (not Freezing) Fluid: Air
Piston Speed: 50~500mm/s Lubrication: Non-lube
High Light:

mxs double acting pneumatic air cylinder

,

6mm double acting pneumatic air cylinder

,

stroke adjustable double acting pneumatic cylinders



Slide Table Stroke Adjustable Double Acting Standard Pneumatic Air Cylinder

 MXS Series Compact slide table double acting stroke adjustable Pneumatic air cylinder Bore size 6mm-25mm e.g. MXS112-50 with rubber buffer and no need lubrication



Quick Detail:

* MXS slide table air cylinder SMC equivalent

* Optional with adjustable stroke device(0~5mm)

* Can be installed from three sides
* Small size and light weight.
* Double cylinder with 2 times output force.

* Bore size 6mm,8mm,12mm,16mm,20mm,25mm



Ordering Code
MXS 12 × 50



Series Code
MXS:Air Slide Table
Bore Size
6mm
8mm
12mm
16mm
20mm
25mm
  Stroke
10mm
20mm
30mm
40mm
50mm
75mm
100mm
125mm
150mm
Adjuster Option
Blank:Standard
AS:Adjuster on extension end
AT;Adjuster on retraction end
A:Adjuster on both end
BS:Absorber on extension end
(not available for Φ6)
BT: Absorber on retraction end
(not abailable for Φ6 )
B:Absorber on both ends
(not available for Φ6)

Function Option
Blank:Standard
F:With buffer
R: With end lock
(not available for Φ6)
P:Axial Piping Type
FR:With buffer and end lock

(not available for Φ6)
FP:With buffer and axial Piping Type



Specification
Model MXS 6 MXS 8 MXS12 MXS16 MXS20 MXS25
Bore (mm) 6*2
Equivalent Φ8
8*2
Equivalent Φ11
12*2
Equivalent Φ17
16*2
Equivalent Φ22
20*2
Equivalent Φ28
25*2
Equivalent Φ35
Fluid Compressed air
Action Pattern Double-acting
Maximum Operating Pressure 0.7 MPa
Minmum Operating Pressure 0.15 MPa
Ambient And Fluid Temperature -10~+60℃ (not freezing)
Piston Speed 50~500mm/s
Cushion Rubber buffer(standard)
Lubrication Non-lube
Port Size M3*0.5 M5*0.8 Rc 1/8



Standard Stroke
Model Standard stroke(mm)
MXS6 10,20,30,40,50
MXS8 10,20,30,40,50,75
MXS12 10,20,30,40,50,75,100
MXS16 10,20,30,40,50,75,100,125
MXS20 10,20,30,40,50,75,100,125,150
MXS25 10,20,30,40,50,75,100,125,150
