| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | VISO10I-22OVAC |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD20-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 20000 Pieces Per month |
| Coil Voltage: | 24V | Material: | Aluminum |
|---|---|---|---|
| Motion Pattern: | M5x0.8,G1/8,G1/4,G3/8 | Product Name: | Solenoid Valve |
| Pressure: | 0.2~1.0MPa | Type: | Two Position Five Way |
| High Light: | Pneumatic Solenoid Valve,Pneumatic Control Valve |
||

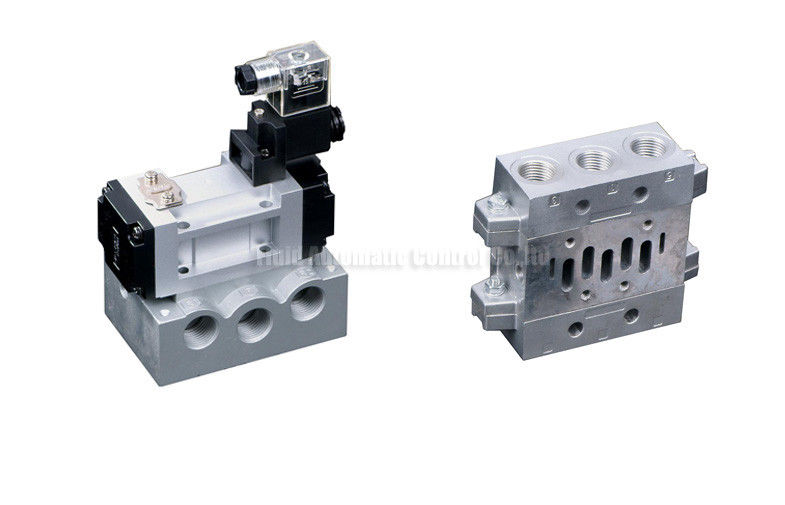

ISO Standard 24V Pilot Operated Pneumatic Solenoid Valve 2 Position 5 Way
ISO Standard Solenoid valve size 2 two position five way with manifold base large flow rate e.g VISO10I-220VAC YPC equvalent
Quick Detail:
* VISO series ISO2 Solenoid valve YPC interchangeable
* Aluminum material Body
* Pilot Operated,Inner Pilot type
* Large Aperture,big flow rate
* With Manifold for connecting
* Din connector and outlead wire electricity connecting for selectable
* Metal Button type Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
Applications:
VISO solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion
VISO valve can be used for big Bore size and long stroke cylinder,it supply big flow application.
Specifications:
|
ORDERING CODE |
|||||
|
VISO |
1 |
0 |
I |
AC220V |
W |
|
Type |
Function Type |
Return type |
Pilot type |
Voltage |
Electricity Connect Form |
|
VISO: ISO Solenoid valve size 2 |
1:Two Position Five way Single Coil |
0:None |
I:Internal Pilot |
AC220V:220VAC |
Blank:Standard Connector |
|
2:Two Position Five way Double Coil |
1:Air+Spring |
AC110V:110VAC |
LD:Brown Din Connector with Light Indicator |
||
|
3:Three Position Five way Center Closed |
2:Air |
E:External Pilot |
DC24V:24VDC |
LD1:White Din Connector With Light Indicator |
|
|
4:Three Position Five way Center Exhuasting |
3:Spring |
AC24V:24VAC |
W:Out-leading Wire |
||
|
5:Three Position Five way Center Pressure |
DC12V:12VDC |
||||
|
SPECIFICATION |
||
|
Series |
ISO VALVE |
|
|
Working Fluid |
Filtered Compressed Air |
|
|
Position And Way Numbers |
Two Position-Five Way |
Three Position-Five Way |
|
Working Pressure |
0.15~1.0MPa |
0.2~1.0MPa |
|
Effective Sectional Area(0.5MPa) |
65mm² |
50mm² |
|
Ambient&Fluid Temp |
5~60℃ |
|
|
Response Time(0.5MPa) |
35ms or Less |
45ms or Less |
|
Highest motion Frequency |
3 Cycle/Sec |
1 Cycle/Sec |
|
Lubrication |
Not required |
|
|
Manual Override |
Push Button Standard |
|
|
Insulation&Protection Class |
F Class IP65 |
|
|
Voltage Tolerance |
±10% |
|
|
Power consumption |
Holding: AC:5.5VA DC:2.5W |
|
Accessories:Manifold Base
Model no.VISO-6F
|
VISO-M |
6F |
|
|
Type |
Joint Base No |
|
|
VISO-M:ISO Size 2 Solenoid Valve Manifold |
1~20F:1~20 Joint base maximum for 1~20 valves.e.g 6F have 6 joint base for maximum 6 valves |
|
Pneumatic valve, ISO solenoid valve,Pilot Operated solenoid valve
