| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | PC8-02 |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD0.1-- |
| Packaging Details: | Boxes, Cartons,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 100000PCS Per Month |
| Product Name: | Push-in Pneumatic Fitting | Material: | Brass Nickle Plated |
|---|---|---|---|
| Type: | Branch Tee|elbow|run Tee|tee|traight | Working Pressure Range: | 0~10.2Kgf/cm²(1.0Mpa) |
| Negative Pressure: | -750mmHg(10Torr) | Pressure Resistance: | 15.3Kgf/cm²(1.5Mpa) |
| Applicable Tubing Type: | Nylon And Polyurethane | Operating Temperature: | 0~60℃ |
| High Light: | Air Tube Connector,Pneumatic Pipe Fitting,Elbow Type Push In Pneumatic Fitting |
||

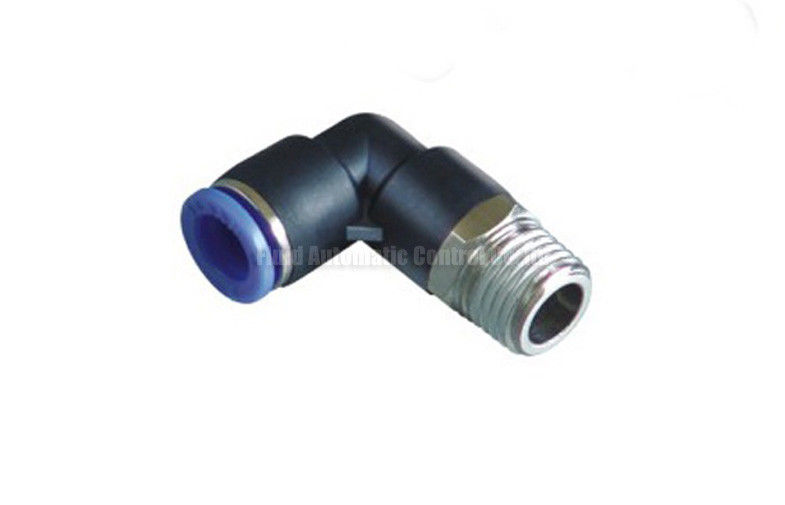

Push-in Pneumatic Fitting PC8-02 8mm Brass Elbow Type One Touch Fitting
One touch quick push-in fitting straight,elbow,tee,branch tee,plug,splicer,triple,banjo,reduction type,flow regulating type,swivel type,stop type,check type,bulkhead type,tube size 4mm~16mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric thread,e.g PC8-G02
Quick Detail:
* One touch quick push-in fitting
* Body material brass nickle plated
* Housing material PBT,white colour and black colour selectable
* Lock claw material stainless steel,tight and stable
* Round and oval sleeve for option,colour in black and blue selectable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* leak proof coated on thread to ensure good sealing peformance
* Threads available in G,PT,NPT,METRIC
* Tube size available metric 4,6,8,10,12,16 inch 5/32,3/16,1/4,5/16,3/8,1/2
* Straight,tee,branch tee,run tee,elbow,universal elbow(Banjo),plug,splicer,reduction,flow regulator,swivel type,triple type,thread extended type,bulkhead type,check type,stop type
Applications:
One touch two touch quick push-in fitting used widely in metallurgy,oil industrial,chemical,textile,aviation,mechanical automation,transporation,electronics,medicine equipment,teching equipment as airline connector
Specifications:
|
Specification |
|
|
Fluid Type |
Air.Vacuum |
|
Working Pressure Range |
0~10.2Kgf/cm²(1.0Mpa) |
|
Negative Pressure |
-750mmHg(10Torr) |
|
Pressure Resistance |
15.3Kgf/cm²(1.5Mpa) |
|
Operating Temperature |
0~60℃ |
|
Applicable Tubing type |
/Nylon And Polyurethane |
|
Tube Outer Dia |
||||||
|
(Metric Size) |
||||||
|
Code |
4 |
6 |
8 |
10 |
12 |
14 |
|
DIA |
Ø4 |
Ø6 |
Ø8 |
Ø10 |
Ø12 |
Ø14 |
|
(Inch Size) |
||||||
|
Code |
5/32 |
3/16 |
1/4 |
5/16 |
3/8 |
1/2 |
|
DIA |
Ø5/32 |
Ø3/16 |
Ø1/4 |
Ø5/16 |
Ø3/8 |
Ø1/2 |
|
Thread Type and size |
||||||
|
Taper Thread(R PT ) |
||||||
|
Code |
01 |
02 |
03 |
04 |
06 |
|
|
DIA |
R1/8 |
R1/4 |
R3/8 |
R1/2 |
R3/4 |
|
|
G Thread |
||||||
|
Code |
G01 |
G02 |
G03 |
G04 |
G06 |
|
|
DIA |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
|
|
NPT Thread |
||||||
|
Code |
N01 |
N02 |
N03 |
N04 |
N06 |
|
|
DIA |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
|
|
(Metric Size) |
||||||
|
Code |
M5 |
M6 |
M8 |
M10 |
|
|
|
DIA |
M5X0.8 |
M6X1 |
M8X1 |
M10X1.25 |
|
|
