Aluminum Pneumatic Flow Control Valve , G1/8" - G1" Air Shuttle Valve

Aluminum Pneumatic Flow Control Valve , G1/8" - G1" Air Shuttle Valve

Aluminum Pneumatic Flow Control Valve , G1/8" - G1" Air Shuttle Valve

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: ST-02

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD2--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Port Size: G1/8”~G1” Serie: ST Series
Applications: Logic Circuit Or Program Circuit Surface Treatment: Hardcoat Anodiz
Material: Aluminum Alloy Product Name: Shuttle Valve
Applications: Logic Circuit Or Program Circuit Surface Treatment: Hardcoat Anodiz



Aluminum Pneumatic Flow Control Valve , G1/8" - G1" Air Shuttle Valve

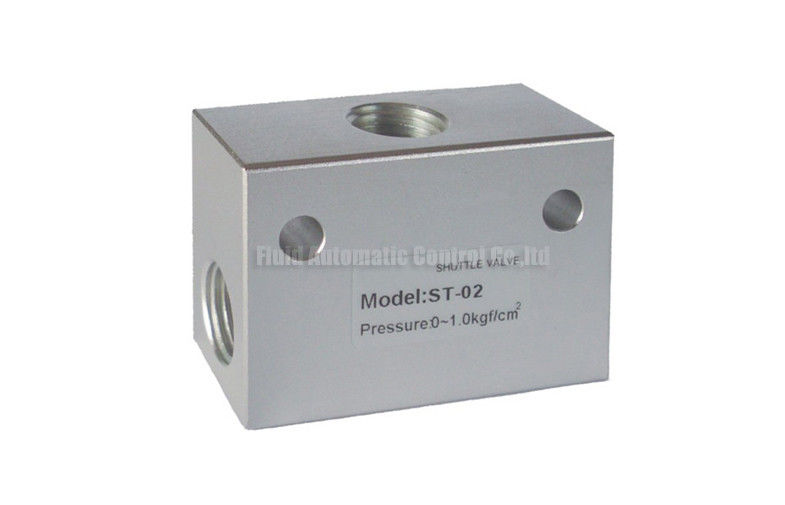

ST Series Shuttle Valve port size G1/8~G1 Aluminum material valve body e.g ST-02



Quick Detail:



* ST Series Shuttle Valve

* Body Material Aluminum Alloy

* Port Size G1/8”,G1/4”,G3/8,G1/2”,G3/4”,G1”

* Compact design,small volume

* Easy operation,sensitive of Respond

* Directly pipe joint mounting,easy and convenient

* Stable design,long serive life



Applications:



ST Series Shuttle valve function like two check valve combine together,it is widely use in the Logic circuit or program circuit,the air direction can be determined by selectable by pressure,when pressure differential Positive one port open and non-return,another port shut,when pressure differential negative,the action function will be reversed.



Specifications:



ST Series Shuttle valve

Body material aluminum alloy

Port Size G1/8”~G1”

Surface treatment hardcoat anodiz



Aluminum Pneumatic Flow Control Valve , G1/8" - G1" Air Shuttle Valve

Aluminum Pneumatic Flow Control Valve , G1/8" - G1" Air Shuttle Valve

Model/Symbol

A

B

C

D

E

F

G

ST-01

40

24

16

4.5

25

20.5

G1/8”

ST-02

50

35

22

5.5

35

25

G1/4”

ST-03

75

48

30

7

50

42

G3/8”

ST-04

75

48

30

7

50

42

G1/2”

ST-06

110

72

40

7

70

58

G3/4”

ST-08

110

72

40

7

70

58

G1”

Pneumatic Valve,Shuttle valve ,Flow control check valve
