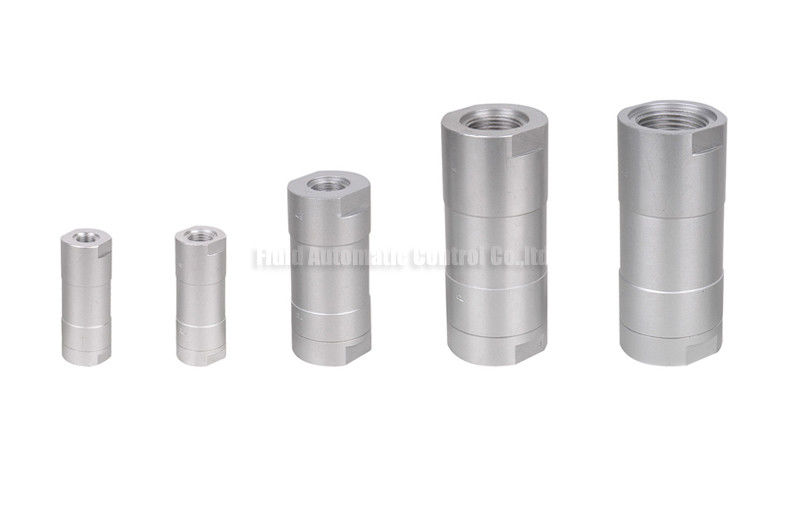

Aluminum Alloy Check Valve G1/8" - G1/2",Undirectional Valve

Aluminum Alloy Check Valve G1/8" - G1/2",Undirectional Valve

Aluminum Alloy Check Valve G1/8" - G1/2",Undirectional Valve

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: KA-08

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD2--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Port Size: G1/8”,G1/4”,G3/8,G1/2” Series: KA Series
Product Name: Check Valve Material: Aluminum Alloy
Working Pressure: 0.05~0.8MPa Operating Temperature: –5~60℃
Respond Time(Sec): 0.03



Aluminum Alloy 6 port Check Valve G1/8" - G1/2",Undirectional Valve

KA Series non-return one way check valve port size G1/8~G1/2 Aluminum Alloy Material e.g KA-08





Quick Detail:





* A Series Non-return one way valve

* Body aluminum alloy

* Port Size G1/8”,G1/4”,G3/8,G1/2”

* Compact design,small volume

* Easy operation,sensitive of Respond

* Directly pipe joint mounting,easy and convenient

*Stable design,long serive life



Applications:



KA series one way non-return valve used for protecting Pneumatic system to keep from working medium return when the in pressure lower than the out pressure,with KA series check valve,air flow direction will be one way to keep from air mixed to occur harm to system or damage to working components.



Specifications:



ORDERING CODE

KA

08

Type

Port Size

KA:KA Series Check Valve

06:G1/8"

08:G1/4"

10:G3/8"

15:G1/2"



SPECIFICATION

Model no

KA-06

KA-08

KA-10

KA-15

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Port Size

G1/8"

G1/4"

G3/8"

G1/2"

Respond Time(Sec)

0.03

Working Pressure

0.05~0.8MPa

Operating Temperature

–5~60℃



Aluminum Alloy Check Valve G1/8" - G1/2",Undirectional Valve

Aluminum Alloy Check Valve G1/8" - G1/2",Undirectional Valve

Model No

D

D2

S

L

a

a1

KA-06

G1/8(M10X1)

Ф24

21

64

7

7

KA-08

G1/4(M12X1.5)

Ф24

21

64

7

7

KA-10

G3/8(M16X1.5)

Ф38

35

82

9

9

KA-15

G1/2(M20X1.5)

Ф38

35

82

9

9

Pneumatic Valve,Check valve ,Flow control valve
