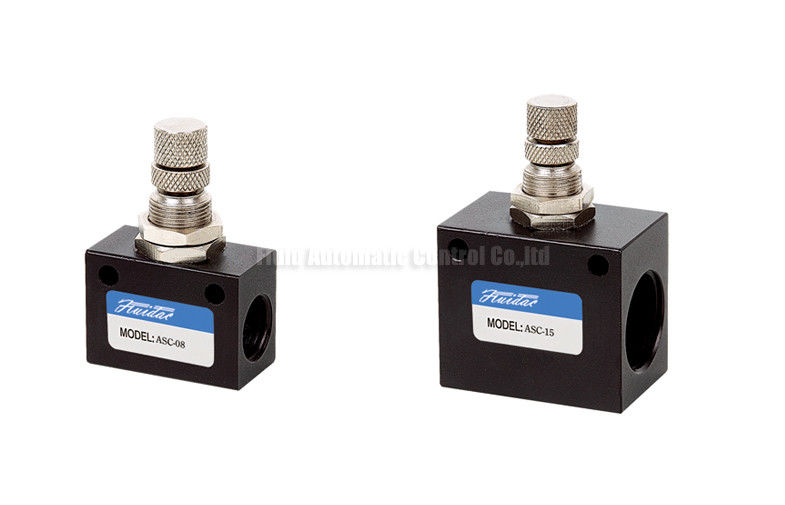

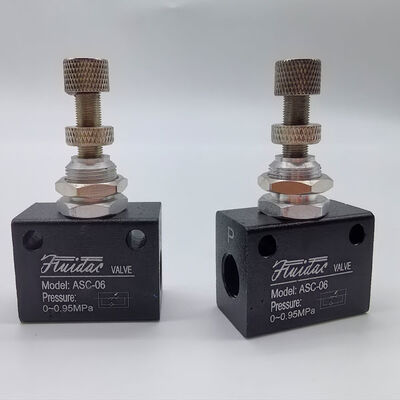

ASC Pneumatic Flow Control Valve G1/2" One Way Flow Regulator valve

ASC Pneumatic Flow Control Valve G1/2" One Way Flow Regulator valve

ASC Pneumatic Flow Control Valve G1/2" One Way Flow Regulator valve

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: ASC-08

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD2--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Port Size: G1/8 Material: Aluminum Alloy
Operating Temperature: 0~60℃ Product Name: Flow Control Throttle Check Valve
Working Medium: Compressed 40 Micron Filtered Air Working Pressure: 0~0.95MPa



ASC Pneumatic Flow Control Valve G1/2",One Way Flow Regulator Valve

ASC Series high accuracy flow control throttle check valve port size G1/8~G1/2 e.g ASC-08




Quick Detail:



* ASC Series flow control throttle check valve
* Body Material Aluminum Alloy
* Port Size G1/8”,G1/4”,G3/8,G1/2”
* Compact design,small volume,light weight
* Easy operation,sensitive of Respond
* High regulating accuracy
* Flow direction one way type
* Directly pipe joint mounting,easy and convenient
* Stable design,long serive life



Applications:



ASC Series flow control valve widely use in the pneumatic system to adjust the working flow rate to meet with the functional requirement of pneumatic system.
ASC series flow throttle valve use for control cylinder speed,system time delay,Lubricator low oil Volume,air cushion capacity of cylinder etc.



Specifications:




ORDERING CODE

ASC

08

Type

Port Size

KLA:KLA Series Flow Regulating check valve

06:G1/8

08:G1/4"

10:G3/8"

15:G1/2"



SPECIFICATION

Model no

ASC Series

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Port Size

G1/8"~G/12"

Working Pressure

0~0.95MPa

Operating Temperature

0~60℃


ASC Pneumatic Flow Control Valve G1/2" One Way Flow Regulator valve
ASC Pneumatic Flow Control Valve G1/2" One Way Flow Regulator valve

Model/Symbol

A

B

C

D

E

F

G

H

I

J

K

L

M

N

ASC-06

22

32

G1/8

22

27

4.3

49.7

56.5

M6×0.5

M12×0.75

12

18

26

8.6

ASC-08

26

36

G1/4

22

27

4.3

49.7

56.5

M6×0.5

M12×0.75

12

18

30

8.6

ASC-10

28

40

G3/8

25

30

4.3

52.7

59.5

M6×0.5

M12×0.75

13

22

40.5

10.2

ASC-15

28

40

G1/2

30

35

4.3

58.7

65.5

M6×0.5

M12×0.75

13.5

26

40.5

10.2

 Pneumatic Valve,Flow control valve ,Thottle check valve
