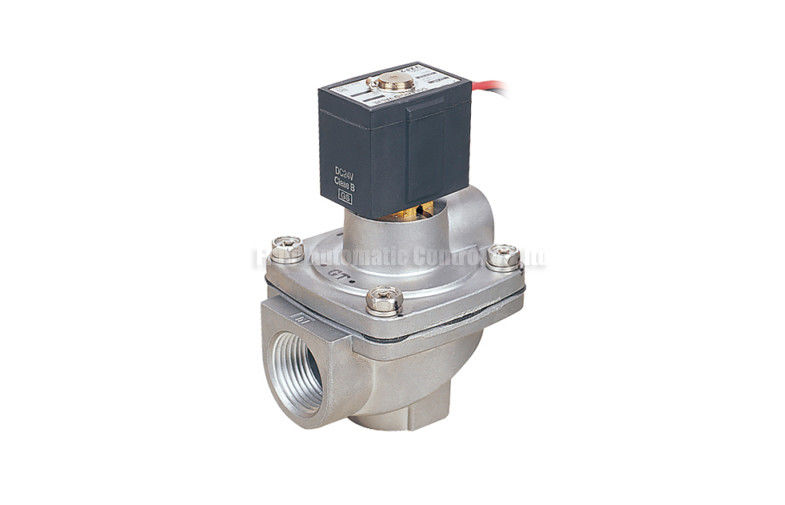

Aluminum Two Position Three Way Pulse Jet Valve , G1/2" Pilot Operated Valve

Aluminum Two Position Three Way Pulse Jet Valve , G1/2" Pilot Operated Valve

Aluminum Two Position Three Way Pulse Jet Valve , G1/2" Pilot Operated Valve

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: VX2120-08-AC220V

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD10--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 10000 Pieces Per month
Contact Now
Detailed Product Description
Port Size: G3/8”,G1” G1/2” Feature: Two Position Three Way
Material: Aluminum Product Name: Pulse Jet Valve
Voltage: 12V Application: Dust Removal Purification



Aluminum Two Position Three Way Pulse Jet Valve , G1/2" Pilot Operated Valve

VXF  Series pulse jet valve port size G3/4”~G1” e.g VXF2150-06-AC220V-W SMC interchangeable





Quick Detail:





* VXF Series solenoid pulse jet valve

* Two position Three way Diaphragm pilot type

* Port Size G3/8”,G1” G1/2”

* Seal NBR or VITON for option

* High flow rate,heavy duty

* Fast respond,low noise,low consumption

* Stable design,long serive life



Applications:



VXF series pulse jet valve used widely in Ventilation and dust removal purification of industrial bolier,Iron and steel industrial, metallurgy,foundry,chemical,building material,machinery,rubber industrial etc



Specifications:



ORDERING CODE

VXF2150

08

AC220V

W

Type

Port size

Voltage

Electricity Connect type

VXF2150:Valve Series for G3/4"

06:G3/4"

DC12V

W:Out-leading wire

DC24V

VXF2160:Valve Series For G1"

10:G1"

AC110V

AC36V

D:Din Connector

VXF2180:Valve Series For G1-1/2"

14:G1-1/2"

AC220V

AC380V



  Model

VXF2150-06

VXF2160-10

VXF2280-14

Port size

3/4”

1”

1-1/2"

Max.Operating Differential Pressure

1.0MPa

Min.Operating Differential Pressure

0.03

Section(mm)

20

27

40

Effective Area of Section

170

330

810

Cv Value

9.5

18.5

45

Exhaust Orifice

Rc(PT)1/4





  Model

A

B

C

D

E

F

G

H

I

J

K

L

P

VXF2150

33

40

85

32.5

36

66

25

103

110

20

23

30

3/4”

VXF2160

37

48

89

38

45

74

33.5

118

125

20

23

30

1”

VXF2280

28

68

81

58

110

110

62.5

174

184

23

25

35

1-1/2"



Solenoid pulse jet valve,pneumatic pulse jet valve,Diaphragm dust collector
