32mm~200mm ISO6431 Pneumatic Air Cylinder SI-40-50-PPV-A With Magnet and Air cushion

32mm~200mm ISO6431 Pneumatic Air Cylinder SI-40-50-PPV-A With Magnet and Air cushion

32mm~200mm  ISO6431 Pneumatic Air Cylinder SI-40-50-PPV-A With Magnet and Air cushion

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: SI-40-50-PPV-A

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD9-
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 10000 Pieces Per month
Contact Now
Detailed Product Description
Bore Size: 32mm-200mm Motion Pattern: Double Action
Operating Pressure Range: 0.1~1.0MPa Operating Speed: 50~800mm/s
Pressure Endurance: 1.5MPa Product Name: Pneumatic Air Cylinder
Working Medium: Filtered Compressed Air



32mm~200mm ISO6431 Pneumatic Air Cylinder SI-40-50-PPV-A With Magnet and Air cushion

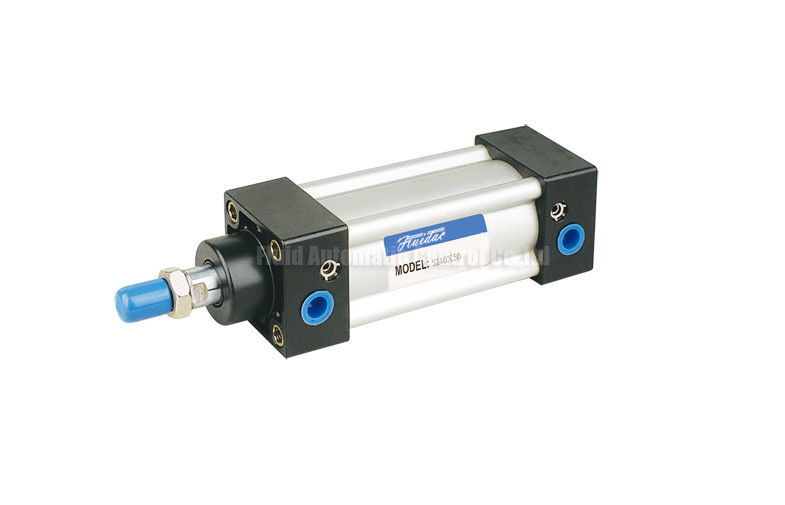

ISO15552/ISO6431 standard Mickey mouse barrel SI double acting Pneumatic air cylinder Bore size 32mm-200mm e.g. SI40-50-PPV-A  with magnet and adjustable air buffer Airtac crossover Tie-rod hidden design



Quick Detail:



* Airtac Equivalent, mounting size ISO6431/ISO15552 standard air cylinder

* Mickey mouse barrel design,cost effective

* tie-rod hidden design for corrosion-proof

* With magnet and air buffer adjustable,Easily control cylinder,smooth motion

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* Bore size(mm)32,40,50,63,80,100,125,160,200

* Cylinder kits,repair kits and accessories available



Specifications:



ORDERING CODE

SI

50

100

PPV

A

LB

ISO 6431/ISO 15552 Standard

Bore Size

Stroke

Air buffer both ends

With Magnet standard

Mounting Accessories

SI:Standard Cylinder

32:32mm

Blank:Basic type

40:40mm

LB:Foot mounting front and rear

50:50mm

FA:Front flange

SID:Double piston rod

63:63mm

FB:Rear flange

80:80mm

CA:Single earring

100:100mm

CB:Double earring

SIJ:Double piston rod stroke adjustable

125:125mm

TC:Middle turnion axial

160:160mm

YB:Rotation Clevis

200:200mm







SPECIFICATION

Bore size(mm)

32

40

50

63

80

100

125

160

200

working Medium

Filtered compressed air

Motion Pattern

Double action/Single action

Pressure Endurance

 1.5MPa

Operating pressure range

0.1~1.0MPa

Ambient  Temperature

 -5~70ºC

Buffer cushioning

Air adjustable buffer both ends

Operating  Speed

50~800mm/s

Buffer stroke

24mm

32mm

 Port size

G/18

G1/4

G1/4

G3/8

G3/8

G1/2

G1/2

G3/4

G3/4





32mm~200mm  ISO6431 Pneumatic Air Cylinder SI-40-50-PPV-A With Magnet and Air cushion



Bore size

A

B

C

D

E

F

G

H

I

J

K

L

N

O

P

Q

R

S

T

V

W

32

142

48

94

30

32

16

28

22

17

6

M10×1.25

M6

13.5

1/8

4

7.5

7

47

32.5

12

10

40

159

54

105

35

36

18

29

24

19

7

M12×1.25

M6

16

1/4

6

9.5

9

53

38

16

13

50

175

69

106

40

44

25

31

32

24

8

M16×1.5

M8

18.5

1/4

8.5

6.7

9

65

46.5

20

17

63

190

69

121

45

44

25

32

32

24

8

M16×1.5

M8

19

3/8

6

7.7

9

75

56.5

20

17

80

214

86

128

45

56

30

35

40

30

10

M20×1.5

M10

19

3/8

10

5

13.5

95

72

25

22

100

229

91

138

55

59

32

36

40

30

10

M20×1.5

M10

18

1/2

12.5

10

14.5

115

89

25

22

125

279

119

160

60

74

45

46

54

41

13.5

M27×2

M12

23

1/2

14

12

14

140

110

32

27

160

332

152

180

65

94

58

50

72

55

18

M36×2

M16

25

3/4

15

12

20

180

140

40

36

200

347

167

180

75

107

60

50

72

55

18

M36×2

M16

25

3/4

15

12

20

220

175

40

36



32mm~200mm  ISO6431 Pneumatic Air Cylinder SI-40-50-PPV-A With Magnet and Air cushion



Bore

size

A

B

C

D

E

F

G

H

I

J

K

L

N

O

P

Q

R

S

T

V

W

32

190

48

94

30

32

16

28

22

17

6

M10×1.25

M6

13.5

1/8

4

7.5

7

47

32.5

12

10

40

213

54

105

35

36

18

29

24

19

7

M12×1.25

M6

16

1/4

6

9.5

9

53

38

16

13

50

244

69

106

40

44

25

31

32

24

8

M16×1.5

M8

18.5

1/4

8.5

6.7

9

65

46.5

20

17

63

259

69

121

45

44

25

32

32

24

8

M16×1.5

M8

19

3/8

6

7.7

9

75

56.5

20

17

80

300

86

128

45

56

30

35

40

30

10

M20×1.5

M10

19

3/8

10

5

13.5

95

72

25

22

100

320

91

138

55

59

32

36

40

30

10

M20×1.5

M10

18

1/2

12.5

10

14.5

115

89

25

22

125

398

119

160

60

74

45

46

54

41

13.5

M27×2

M12

23

1/2

14

12

14

140

110

32

27

160

484

152

180

65

94

58

50

72

55

18

M36×2

M16

25

3/4

15

12

20

180

140

40

36

200

514

167

180

75

107

60

50

72

55

18

M36×2

M16

25

3/4

15

12

20

220

175

40

36

32mm~200mm  ISO6431 Pneumatic Air Cylinder SI-40-50-PPV-A With Magnet and Air cushion

Bore

size

A

B

C

D

E

F

G

H

I

J

K

L

N

O

P

Q

R

S

T

V

W

Z

32

187

48

94

30

32

16

28

22

17

6

M10×1.25

M6

13.5

1/8

4

7.5

7

47

32.5

12

10

21

40

207

54

105

35

36

18

29

24

19

7

M12×1.25

M6

16

1/4

6

9.5

9

53

38

16

13

21

50

233

69

106

40

44

25

31

32

24

8

M16×1.5

M8

18.5

1/4

8.5

6.7

9

65

46.5

20

17

23

63

250

69

121

45

44

25

32

32

24

8

M16×1.5

M8

19

3/8

6

7.7

9

75

56.5

20

17

23

80

286

86

128

45

56

30

35

40

30

10

M20×1.5

M10

19

3/8

10

5

13.5

95

72

25

22

29

100

308

91

138

55

59

32

36

40

30

10

M20×1.5

M10

18

1/2

12.5

10

14.5

115

89

25

22

29

125

373

119

160

60

74

45

46

54

41

13.5

M27×2

M12

23

1/2

14

12

14

140

110

32

27

35

160

448

152

180

65

94

58

50

72

55

18

M36×2

M16

25

3/4

15

12

20

180

140

40

36

40

200

472

167

180

75

107

60

50

72

55

18

M36×2

M16

25

3/4

15

12

20

220

175

40

36

40
