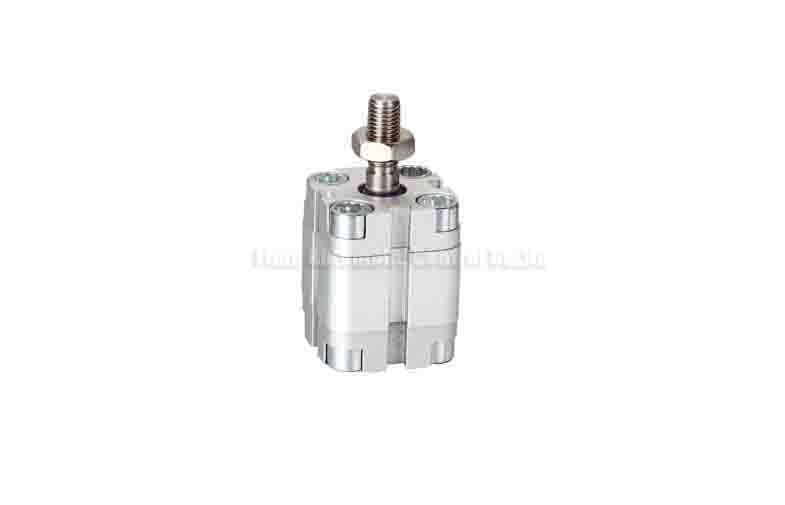

16mm~100mm ADVU Compact Pneumatic Air Cylinder With Magnet / Rubber Buffer

16mm~100mm ADVU Compact Pneumatic Air Cylinder With Magnet / Rubber Buffer

16mm~100mm ADVU Compact Pneumatic Air Cylinder With Magnet / Rubber Buffer

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: ADVU50-50-P-A

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD5-
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 10000 Pieces Per month
Contact Now
Detailed Product Description
Bore Size: 16mm-100mm Motion Pattern: Double Action
Operating Pressure Range: 0.1~1.0MPa Pressure Endurance: 1.5MPa
Product Name: Pneumatic Air Cylinder Working Medium: Filtered Compressed Air



16mm~100mm ADVU Compact Pneumatic Air Cylinder  With Magnet / Rubber Buffer

 FESTO interchange type compact ADVU double acting /single action Pneumatic air cylinder Bore size 16mm-100mm e.g. ADVU50-50-P-A with magnet and rubber buffer





Quick Detail:



* Festo interchange compact air cylinder

* Double acting,single action for option

* With slot on cylinder for mounting sensors

* With magnet and rubber cushion

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With self-lubricating bearing,lubrication free

* Bore size 16mm,20mm,25mm,32mm,40mm,50mm,63mm,80mm,100mm

* Cylinder kits,repair kits and accessories available



Specifications:



ORDERING CODE

ADVU

50

50

P

A

F

ADVU:

Bore Size

Stroke

Rubber Buffer

With Magnet

F:Piston rod end Female thread

16:16mm

Double action standard

20:20mm

25:25mm

AEVU:

32:32mm

40:40mm

Single action

50:50mm

Blank:Without Magnet

M:Piston rod end male thread

63:63mm

ADVUD:

80:80MM

Double piston rod

100:100MM



SPECIFICATION

Bore size(mm)

16

20

25

32

40

50

63

80

100

working Medium

Filtered compressed air

Motion Pattern

Double action/Single action

Pressure Endurance

 1.5MPa

Operating pressure range

0.1~1.0MPa

Ambient  Temperature

 -20~80ºC

Buffer cushioning

Rubber Buffer

Piston rod thread Female

M4

M5

M5

M6

M6

M8

M8

M10

M12

Piston rod thread Male

M8

M10X1.25

M10X1.25

M10X1.25

M10X1.25

M12X1.25

M12X1.25

M16X1.5

M20X1.5

 Port size

M5

M5

M5

G1/8

G1/8

G1/8

G1/8

G1/8

G1/4



16mm~100mm ADVU Compact Pneumatic Air Cylinder With Magnet / Rubber Buffer

Bore size

BG

D1Φ

E

EE

H

L2

L3

L4

MMΦ

PL

RT

T2

TG

ZJ

1

16

18.5

6

29

M5

1

38

3

16

8

8

M4

4

18

42.5

7

20

18.5

6

36

M5

1.5

38

4

18

10

8

M5

4

22

42.5

9

25

18.5

6

40

M5

1.5

39.5

4

18

10

8

M5

4

26

45

9

32

21.5

6

50

G1/8

2

44.5

5

20

12

8

M6

4

32

50.5

10

40

21.5

6

60

G1/8

2.5

45.5

5

20

12

8

M6

4

42

52

10

50

22

6

68

G1/8

3

45.5

6

20

16

8

M8

4

50

53

13

63

24.5

8

87

G1/8

4

50

8

25

16

8

M10

4

62

57.5

13

80

27.5

8

107

G1/8

4

56

8

25

20

8.5

M10

4

82

64

17

100

32.5

8

128

G1/4

5

66.5

8

25

35

10.5

M10

4

103

76.5

22

16mm~100mm ADVU Compact Pneumatic Air Cylinder With Magnet / Rubber Buffer

Pneumatic cylinder,Air cylinder, Linear actuator,Gas cylinder,Compact Pneumatic  cylinder
