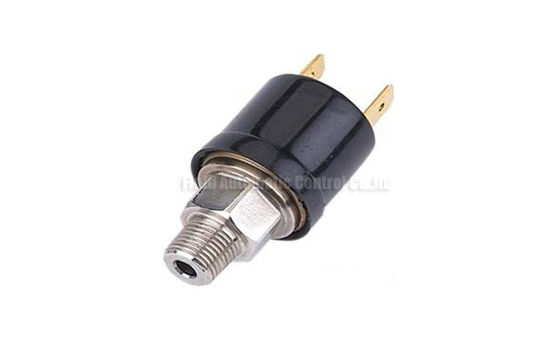

Stainless Steel Pressure Switches 45bar SPST-NC Switch For Refrigeration System

Stainless Steel Pressure Switches 45bar SPST-NC Switch For Refrigeration System

    • Stainless Steel Pressure Switches 45bar SPST-NC Switch For Refrigeration System
  • Stainless Steel Pressure Switches 45bar SPST-NC Switch For Refrigeration System

    Product Details:

    Place of Origin: Ningbo China(Mainland)
    Brand Name: FLUIDAC or OEM
    Certification: ISO9001,CE
    Model Number: PC-1/4

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 piece
    Price: USD4--
    Packaging Details: Boxes, Cartons,Pallets
    Delivery Time: Within 20 days after receiving payment or deposit
    Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
    Supply Ability: 10000 Pieces Per month
    Contact Now
    Detailed Product Description
    Applications: Safety Controls / Air Conditioning Media: Air, Water, Motor Oils
    Operating Temperature Range: -30~80℃ Pressure Range: 0.2~45Bar
    Product Name: Air Pressure Switche Switch Type: SPST- NC, SPST-NO Auto Reset And
    High Light:

    Air Pressure Switch

    ,

    Pressure Controller



    Stainless Steel Pressure Switches 0.2-45bar SPST-NC Switch For Refrigeration System
    PC series brass or stainless steel material pressure switch with automatic pressure control or manual operating type,pressure range 0.2~45Bar,thread connection 1/8,1/4,3/8,1/2” G,NPT e.g PC-1/4



    Quick Detail:


    * PC series pressure switch
    * body material brass or stainless steel
    * pressure range 0.2~45Bar
    * working medium temperature -30~80℃
    * connection 1/8,1/4”G or NPT,7/16UNF,copper tube
    * compact design,small volume,easy for mounting
    * integrated with high pressure and low pressure enable to control high pressure and low price at same time
    * high precision,reliable
    * automatic or manual operating for option
    * wide range of pressure setting for various application
    * adapted international advance welding,outstanding sealing
    * stable design,long service life cycle


    Applications:


    Pressure controlling of Air, Water, Internal wiring of electric refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
    Typical Applications: safety controls / air conditioning / refrigeration
     .

    Specifications:


    Series No.

    PC Series

     Media

     Air, Water, motor oils, transmission oils, Hydrocarbon Media,  Refrigeration fluid

     Pressure Set Point

     actuation from 0.2 to 45 Bar

     Proof Pressure

    45 Bar

     Burst Pressure

    100 Bar

     Operating Temperature Range

    -30° C to ~ 80° C

     Switch Type

    SPST- NC, SPST-NO Auto reset and

    Manual reset

     Electric Rating

    120/240VAC, 375VA



    120VAC,5.8FLA-34.8LRA;240VAC,2.9FLA-15LRA

     24VAC/DC, 2A

     Dielectric Strength

    750 Vrms across open contacts

    1550 Vrms terminals to fitting

     Terminals

    1/4” blade, wire lead

     Life at Related Load

     100,000 cycles

    Connection

    1/8NPT, G1/8", 1/4NPT, G1/4",G3/8",3/8NPT,G1/2",1/2NPT 7/16-20 UNF, etc.

     Options

    various connector thread sizes; wire leads (potted & sealed); protective cover.


    Pressure switch,pressure controller,air conditionning pressure switch
