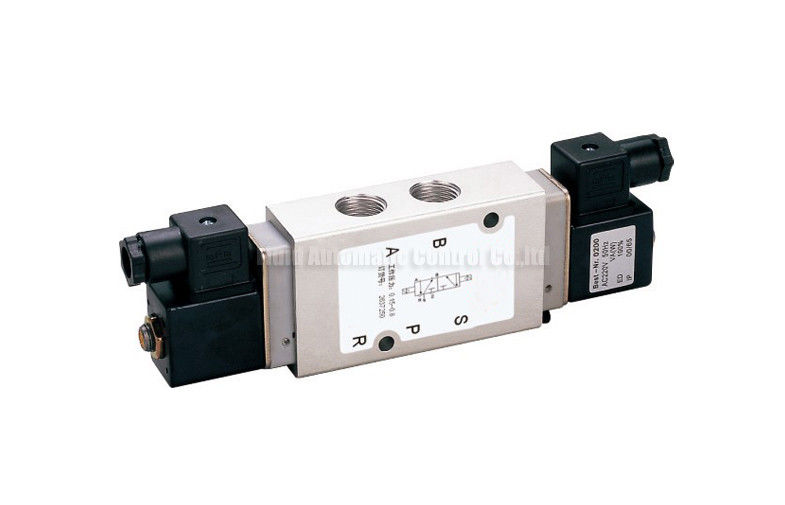

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: 2636000

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD3--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 100000 Pieces Per month
Contact Now
Detailed Product Description
Port Size: G1/8~G1/2 Type: 3/4/5 Way
Coil Voltage: 24VAC, 24VDC, 110VAC, 220VAC Material: Aluminum
Motion Pattern: Pilot Operated,Inner Pilot Product Name: Solenoid Valve



Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

25mm,30mm,35mm body width Herion type solenoid valve 3/2,4/2,5/2 Port size G1/8~G1/2 e.g 2636000,2630600,2637050,8020750,8020850





Quick Detail:



* 2630,263,802 series solenoid valve Herion Interchangeable

* Aluminum material Body width 25mm,30mm,35mm

* Pilot Operated,Inner Pilot type

* Two Position Three Way,Two Position Five Way,Two Position Four way available

* Pipe joint and Namur joint type for option

* Din connector and outlead wire electricity connecting for selectable

* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity

* IP65 class Electromagnetic Induction Coil,low consumption,long service life

* Mature products,cost effectively



Applications:



263,2630,802 series Herion type solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion



Specifications:



ORDERING CODE

802

0

750

B

Type

Action type and Initial State

Aperture Flow

Joint Pipe Form

802:Herion Type Two position Three Way Solenoid Valve

0:Single Coil Normal Closed

750:6mm

Blank:Pipe Joint type

1:Double Coil Normal Closed

850:12mm

B:Namur Type

2:Normal Open

2630

60

0

B

Type

Action type

Exhuasting Form

Blank:Pipe Joint type

2630:Herion type Two Position Four Way Solenoid valve

60:Single Coil

0:Direct exhausting

B:Namur Type

70:Double Coil

1:Underplate Guide exhausting

263

6000

B







Type

Action type  and Aperture flow

Joint Pipe Form



263:Herion type Two Position Five  Way Solenoid valve

6000:Single Coil and 6mm Aperture

B:Namur Type

6200:Double coil and 6mm Aperture

7050:Single Coil and 12mm Aperture

B:Namur Type

7250:Double Coil and 12mm Aperture





SPECIFICATION

Model no

8020750

8022750

8021750

8020850

8022850

2630600

2636000

2636200

2637050

2637250

Working Medium

Compressed 40 Micron Filtered Air

Position And Way Numbers

Two Position

Three Way

Two Postion

Four Way

Two Position

Five Way

Effective Sectional Area

10mm²(CV=0.56)

40mm²(CV=2.23)

4mm²(CV=0.23)

10mm²(CV=0.56)

40mm²(CV=2.23)

Port Size

G1/4"

G1/2"

G1/8"

G1/4"

G1/2"

Motion Pattern

Inner Pilot Operated

Working Pressure

0.15~1.0MPa

Max.Pressure Resistance

1.2MPa

Operating Temperature

5~50℃

Voltage Tolerance

±10%

Insulation&

Protection Class

F Class IP65

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"

Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" - G1/2"
