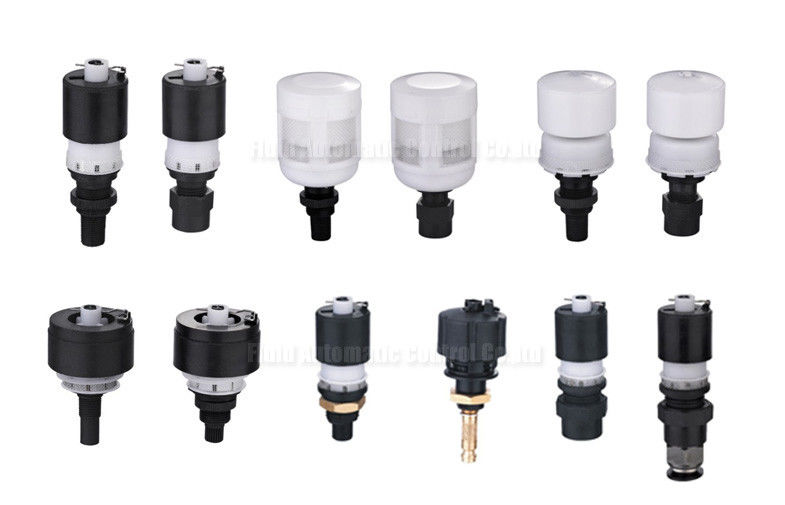

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: ADV-F-GW12-01

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD4--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Working Pressure: 0.2~0.8MPa Material: Reinforced Plastic
Product Name: Auto Drainer Application: FESTO,SMC,AIRTAC, ASCO,etc
Filter Precison: 5Micron~40Micron Outlet Drainage Diamter: 10mm,12mm,14mm,15.5mm,16mm,17mm,18mm





Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

ADV Series automatic drainer for Air filter of FESTO,SMC,AIRTAC,ASCO,NORGEN,ATLAS,MINDMAN etc plastic body material Drainage connection G1/8” or Ø10 push-in type lever type e.g ADV-F-GW12-01





Quick Detail:



* ADV Series automatic drainer

* Body material reinforced plastic

* For application For air filter of FESTO,SMC,AIRTAC, ASCO, NORGEN, ATLAS,MINDMAN et

* Operating pressure0.2~0.8MPa

* High filter precison from 5Micron~40Micron

* Connecting to water cup outlet drainage Diamter 10mm,12mm,14mm,15.5mm,16mm,17mm,18mm

* Drainage outlet G1/8 Threaded type or Push-in connect type for option

* Normal open drainage status

* Stable design ,long service life cycle



Applications:



This product installed at bottom of water cup serves as a drainer for air filters of high-pressure air source system and functions to divert water for the whole pipeline system.
It is generally used for the equipment inconvenient for manual
discharge of water or comparatively high frequency of water discharge
such as the low spots of pipeline,freezing type air drier and the water
deposit place of air chamber etc.

ADV series especially use in the high place or narrow place or some hazard or toxic gas place where out of reach of human manual operation



Specifications:





ORDERING CODE

ADV

F

G

W

12

01

Type

Type Application

Drainage type

Drainage Outlet

Connection

Connecting water cup

Outlet Diameter

Port Size

ADV:Plastic Series Automatic Drainer

F:

For FESTO Air Filter

G:LEVER Type

W:

Male Thread Connection

10:10mm

01:G1/8"

S:

For SMC Air Filter

12:12mm

N:

For NORGEN Air  Filter

N:

Female Thread Connection

14:14mm

AS

:For ASCO Air  Filter

15.5:15.5mm

10:Ø10 O.D Tube

AT:

For ATLAS Air  Filter

16:16mm

A:

For Airtac Air  Filter

K:

Quick Push-in Connection

17:17mm

M:

For Mindman Air  Filter

18:18mm



SPECIFICATION



1,Working Medium:Compressed Air

2,Ambient and Fluid Temperature:5-60℃

3,Operating Pressure:0.2~0.8Mpa

4,Body material:Reinforce plastic

5,Drainage outlet connection:Thread type or Quick push-in type

6:Drainage outlet connection size:G1/8” or Ø10 O.D Tube

7,Thread type:Male thread or Female thread

8,Drainage type:Lever Type

9,Connecting to water cup outlet Diameter: 10mm, 12mm, 14mm, 15.5mm, 16mm, 17mm,18mm

10,Drainage motion:Fully automatic type



ADV-F



Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

ADV-S

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

ADV-N And ADV-AT

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

ADV-A

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

ADV-AS And ADV-M

Pneumatic Components Lever type Automatic Drainer For Air Filter Water Drainer

Air Filter Automatic drainer,automatic drainer, automatic discharger
