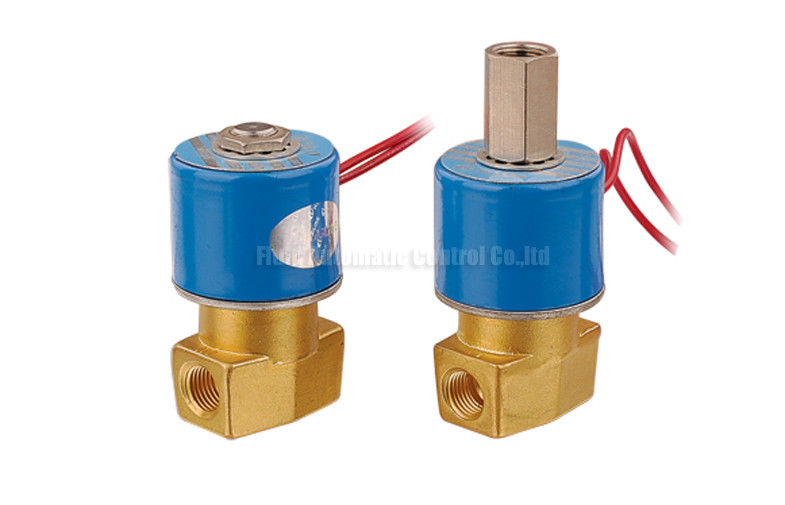

2 Way Pneumatic Solenoid Valve BV Series , 12 Volt Pneumatic Valve

2 Way Pneumatic Solenoid Valve BV Series , 12 Volt Pneumatic Valve

    • 2 Way Pneumatic Solenoid Valve BV Series , 12 Volt Pneumatic Valve
  • 2 Way Pneumatic Solenoid Valve BV Series , 12 Volt Pneumatic Valve

    Product Details:

    Place of Origin: Ningbo China(Mainland)
    Brand Name: FLUIDAC or OEM
    Certification: ISO9001
    Model Number: BV-22-06-AC220V

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 piece
    Price: USD3--
    Packaging Details: Boxes, Cartons,Wooden cases,Pallets
    Delivery Time: Within 20 days after receiving payment or deposit
    Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
    Supply Ability: 10000 Pieces Per month
    Contact Now
    Detailed Product Description
    Size: G1/8 Body Material: Brass
    Motion Pattern: Direct Acting Product Name: Solenoid Valve
    Type: Two Position Two Way Working Medium: Air, Water
    Size: G1/8"
    High Light:

    Pneumatic Valve

    ,

    Water Solenoid Valve



    2 Way Pneumatic Solenoid Valve BV Series , 12 Volt Pneumatic Valve

    BV Series two position two way,two position three way solenoida valve Port size G1/8” G1/4” e.g BV-22-06-AC220V





    Quick Detail:



    * BV series solenoid valve

    * Two position two way or two position three way slectable

    * Port Size G1/8”,G1/4”

    * Seal NBR or VITON for option

    * Fast respond,low noise,low consumption

    * Stable design,long serive life



    Applications:



    BV series two position two way solenoid acting as on and off switch function automatically for its working system by the involving of power electricity magnetic.

    BV series widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.

    BV series Two position three way use for direction change in Pneumatic system.



    Specifications:



    ORDERING CODE

    BV

    23

    06

    AC220V

    Type

    Position and Way Number

    Port Size

    Voltage

    BV:BV Series Solenoid valve

    22:Two Position Two Way

    06:G1/8"

    DC12V

    DC24V

    AC110V

    23:Two Position Three Way

    08:G1/4"

    AC36V

    AC220V

    AC380V



      Model

    BV22-06

    BV22-08

    BV23-06

    BV23-08

    Working Medium

       Air,   Water,  Oil

    Aperture of Flow Rate(mm)

    1.6

    2.4

    3.2

    4.0

    1.6

    CV Value

    0.10

    0.21

    0.33

    0.43

    0.10

    Port Size

    G1/8”

    G1/4”

    G1/8”

    G1/4”

    Working pressure Range(Mpa)

    0~1.5

    0~1.0

    0~0.7

    0~0.5

    0~0.9

    Voltage Tolerance

    ±10%

    Seal Material

    NBR OR VITON



    2 Way Pneumatic Solenoid Valve BV Series , 12 Volt Pneumatic Valve 0

    Pneumatic Valve,Solenoid valve,Brass valve
