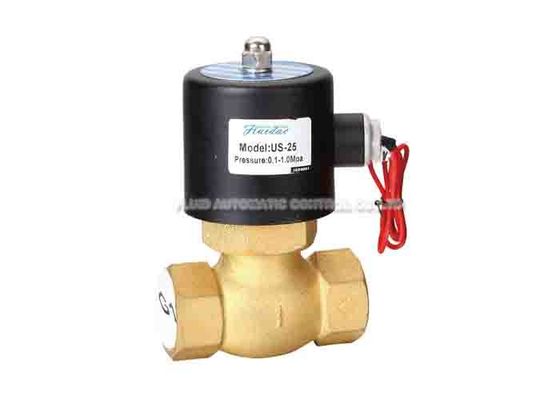

High Temperature 1.5MPa 2 Way Pneumatic Solenoid Valve With PTFE Seal For Steam

High Temperature 1.5MPa 2 Way Pneumatic Solenoid Valve With PTFE Seal For Steam

High Temperature 1.5MPa 2 Way Pneumatic Solenoid Valve With PTFE Seal For Steam

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: 2L170-15-AC110V

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD10--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 10000 Pieces Per month
Contact Now
Detailed Product Description
Series: 2L Series Port Size: G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”
Aperture Of Flow Rate: 17mm,22mm,30mm,50mm Body Material: Brass
Motion Pattern: Guide Type Product Name: 2 Way Pneumatic Solenoid Valve
Type: Two Position Two Way Voltage: DC12V|AC220V|AC380V|DC24V
Working Medium: Air|Water|Steam



High Temperature 1.5Mpa 2 Way Pneumatic Solenoid Valve With PTFE Seal For Steam

Orifice size 17mm,22mm,30mm,50mm 2L series High temperature up to 180℃ solenoid valve direct acting body material brass port size G3/8"-G2"





Quick Detail:



* 2L Series high temperature solenoid valve flow aperture size 17mm,22mm,30mm,50mm

* Two position two way directly acting

* Body material brass

* High temperature endurance up to 180℃

* Port Size G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”

* Seal with PTFE

* Fast respond,low noise,low consumption

* Stable design,long serive life





Applications:





2L series two position two way solenoid acting as on and off switch function automatically for its working system by the involving of power electricity magnetic.

2L series widely use in the Pneumatic,water and oil circuit system to connect through or turn off the serving system.

2L series valve use for high temperature working environment especially use for steam, with PTFE seal,good peformance in Temperature endurance



Specifications:



ORDERING CODE

2L

170

15

AC220V

Type

Aperture Flow Rate

Port size

Voltage

2L:2L Series High temperature Solenoid valve

170:17mm

10:G3/8"

DC12V

200:22mm

15:G1/2"

DC24V

20:G3/4"

AC36V

300:30mm

25:G1"

AC110V

35:G1-1/4"

AC220V

500:50mm

40:G1-1/2"

AC380V

50:G2"

AC24V



Model

2L170-10

2L170-15

2L170-20

2L200-25

2L300-35

2L300-40

2L500-50



Working Medium

Air,Water,Steam



Motion Pattern

Guide Type



Type

Normal Close Type



Aperture of Flow Rate(mm)

17

22

30

50



CV Value

4.8

12

20

48



Joint Pipe Bore

3/8″

1/2″

3/4″

1″

1 1/4″

1 1/2″

2″



Operation Fluid Viscosity

20 CST(Below)



Working-pressure MPa

Air,Water,Steam: 0.1~1.5MPa



Max. Pressure Resistance MPa

1.5MPa




Operating Temperature ℃

-5 ~ 80℃



Voltage Range

±10%



Material of Body

Brass



Material of Oil Seal

PTFE





High Temperature 1.5MPa 2 Way Pneumatic Solenoid Valve With PTFE Seal For Steam

Model

A

B

C

D

K

2L160-10

125

42

146

82

G3/8″

2L160-15

125

42

146

82

G1/2″

2L200-20

125

42

146

82

G3/4″

2L250-25

136

52

162

90.5

G1″

2L350-35

148

74

185

111

G1 1/4″

2L400-40

148

74

185

111

G1 1/2″

2L500-50

176

86

223

163

G2″
