| Place of Origin: | Ningbo China(Mainland) |
| Brand Name: | FLUIDAC or OEM |
| Certification: | ISO9001 |
| Model Number: | AZFC100-04B |
| Minimum Order Quantity: | 5 piece |
|---|---|
| Price: | USD3-- |
| Packaging Details: | Boxes, Cartons,Wooden cases,Pallets |
| Delivery Time: | Within 20 days after receiving payment or deposit |
| Payment Terms: | TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal |
| Supply Ability: | 10000 Pieces Per month |
| Flow Rate: | 10/20/30 | Application: | Automotive Industrial |
|---|---|---|---|
| Product Name: | Vacuum Filter | Pipe O.D: | 4mm,6mm,8mm |
| Prseeure Range: | -100Kpa-0Kpa | Filter Precision: | 10um |
| High Light: | Festo Vacuum Pad,Miniature Vacuum Pump |
||

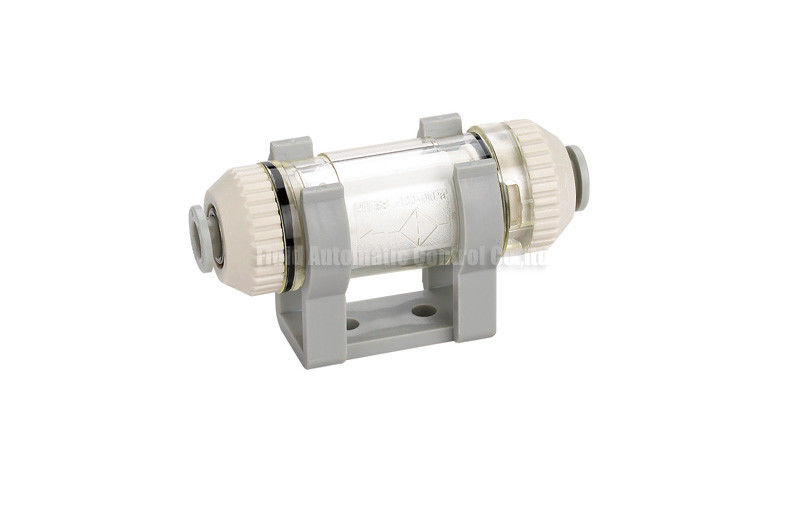

-100 ~ 0Kpa In Line Type Vacuum Filter With Rapid Push-in Connector For Plastic Tubing
AZFC series in line type vacuum filter quick push-in connecting,tube O.D 4mm,6mm,8mm,operating pressure -100~0Kpa,filtra
Quick Detail:
* AZFC in line type vacuum filter
* compact design,light weight,flexible application
* easy for assembling and disassembling structure
* push-in fitting for convenient connecting
* high filtration degree
* filter element replaceable,spare parts available
* bracket mounting attached
* stable design,long service life
Applications:
AZFC Series in line vacuum filter used widely in automotive industrial,chemical industrial,glass manufacturing,automation system mechanical,electronics,packing system, printing, plastic, robot automation system etc
Specifications:
| Model | ZFC100-04B | ZFC100-06B | ZFC200-06B | ZFC200-08B |
| Pipe O.D(mm) | φ4 | φ6 | φ6 | φ8 |
| Flow Rate/min | 10 | 20 | 30 | 50 |
| Media | Air,Nitrogen | |||
| Pressure Range | -100~ 0kpPa | |||
| Filter Precision | 10 μm | |||
| Ambient temp. | 0~60° (not freezing) | |||
| Filter element pressure tolerance differnet | 0.15MPa | |||
Vacuum component, vacuum filter,in line vacuum filter
