Home ProductsSolenoid Operated Directional Control Valve

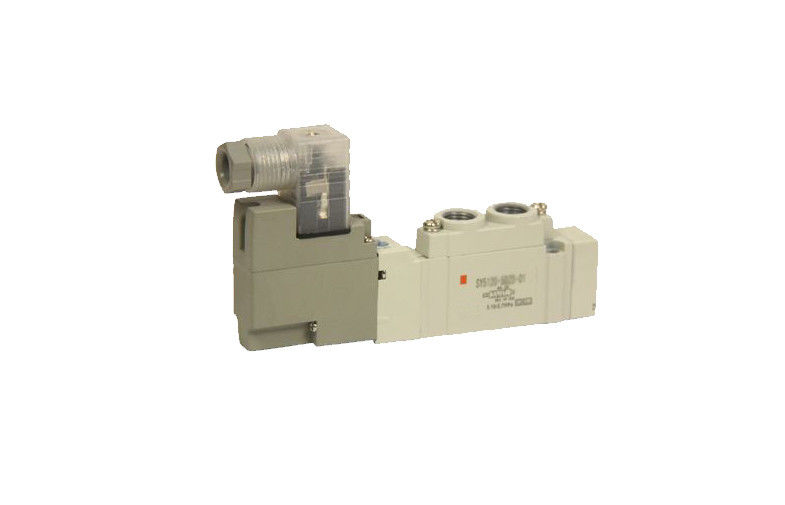

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: SY5120-1/8-220VAC-L

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD8--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 10000 Pieces Per month
Contact Now
Detailed Product Description



Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector  For Dust-proof

SMC type SY series Solenoid valve two position five way Din Connector type port isze M5,G1/8,G1/4,G3/8 e.g SY5120-1/8-220VAC-L





Quick Detail:



* SY series solenoid valve SMC interchangeable

* Aluminum alloy valve body

* Two position Five way

* Motion pattern Inner pilot operated

* Port size M5x0.8,G1/8,G1/4,G3/8

* Compact design small volume

* High working frequency up to 50cycle/Sec

* Fast respond,low consumption



Applications:



SY Series solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion



Specifications:

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof

ORDERING CODE

SY5

120

 1/4

AC220V

L

Type

Function type

Port size

Voltage

Electricity Connect

SY3:SY3000 Series SMC type Solenoid valve

120:Two Position Five Way Single coil

M5:M5x0.8

AC220V:220VAC

L:Wire outleading

SY5:SY5000 Series SMC type Solenoid Valve

220:Two Position Five way Double coil

1/8:G1/8"

DC24V:24VDC

SY7:SY7000 Series SMC type Solenoid Valve

320:Two Position Five Way Double coil Center Close

1/4:G1/4"

AC110V:110VAC

S:Socket Type

SY9:S7000 Series SMC type Solenoid Valve

420:Two Position Five Way Double coil Center Exhuasting

3/8:G3/8"

DC12V:12VDC

520:Two Position Five Way Double coil Center Pressure





SPECIFICATION

Model no

SY Series

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Position And Way Numbers

Two Position-Five Way

Motion Pattern

Inner Pilot Operated

Port Size(Main body)

M5x0.8   G1/8 G1/4 G3/8

Pressure Endurance

1.05MPa

Working Pressure

0.15~0.8MPa

Operating Temperature

5~60℃

Voltage Tolerance

±10%

Power Consumption

AC:4.5VA DC:3.0W

Protection Class&Insulation

F Class IP65

Maximum Working Frequency

50cycle/Sec

Minimum Actuating time

0.05Sec

Lubrication

Not Required



SY3120

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof

SY5120

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof

SY7120

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof

Pilot Operated Directional Control Valve SY3120,SY5120 With Din Connector For Dust-proof



 Pneumatic Valve, Solenoid Valve,SY solenoid valve
