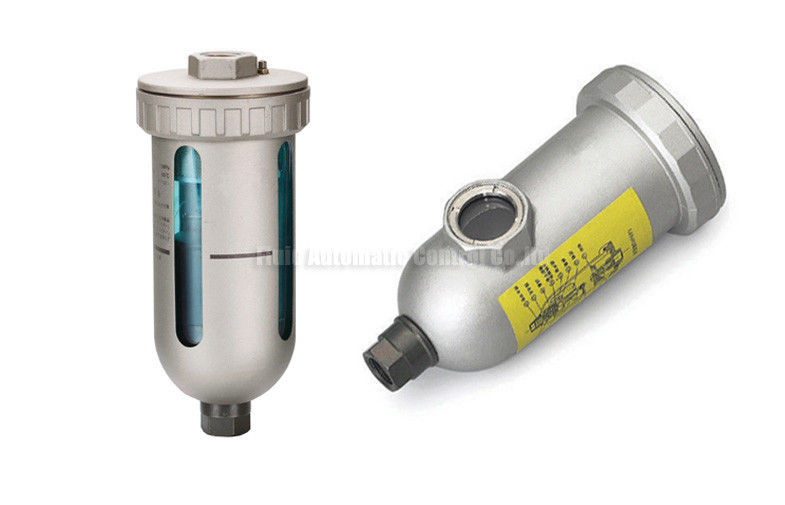

Aluminum Automatic Drainer 0.15MPa - 2MPa For Pneumatic Automation System

Aluminum Automatic Drainer 0.15MPa - 2MPa For Pneumatic Automation System

Aluminum Automatic Drainer 0.15MPa - 2MPa For Pneumatic Automation System

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: MHAD402-04

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD5--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Drain Status: Normal Open Type Guard Material: Iron,Aluminum
Working Pressure: MAD402 0.15~1.0Mpa/MHAD402 0.15~2.0Mpa Port Size: G1/4”,G3/8”,G1/2”
Material: Aluminum Die-casting Body Material Product Name: Automatic Drainer





Aluminum Automatic Drainer 0.15MPa - 2MPa For Pneumatic Automation system

M402 Series metal automatic drainer including MAD402 and MHAD402 high presure up to 2.0Mpa operating pressure,Port size G1/4”,G3/8,G1/2” e.g MHAD402-04





Quick Detail:



* M402 Series metal automatic drainer

* Body material aluminum die-casting

* Guard material MAD402 Iron material,MHAD Aluminum die-casting

* Operating pressure MAD402 0.15~1.0Mpa

* Operating pressure MHAD402 0.15~2.0Mpa

* Pipe mounting,flexible application

* Port size G1/4”,G3/8”,G1/2”

* Normal open drainage status

* Stable design ,long service life cycle



Applications:



This product installed at bottom of water cup serves as a drainer for air filters of high-pressure air source system and functions to divert water for the whole pipeline system.
It is generally used for the equipment inconvenient for manual
discharge of water or comparatively high frequency of water discharge
such as the low spots of pipeline,freezing type air drier and the water
deposit place of air chamber etc.

MAD series especially use in the high place or narrow place or some hazard or toxic gas place where out of reach of human manual operation.

MHAD also can be use in the high pressure pneumatic system due to good performance in pressure-resistance.



Specifications:



MAD402

Model

MAD402-02

MAD402-03

MAD402-04

Ensured Pressure Resistance

1.5MPa

Operating Pressure

0.15MPa-1.00MPa

Ambient and Fluid Temperature

5-60℃

Port Size

G1/4"

G3/8"

G1/2"

Drain Bore

G1/8"

Drain Status

Normal Open type

Working Medium

Compressed Air



Aluminum Automatic Drainer 0.15MPa - 2MPa For Pneumatic Automation System

MHAD402

Model

SAH402-02

SAH402-03

SAH402-04

Ensured Pressure Resistance

2.5MPa

Operating Pressure

0.15MPa-2.00MPa

Ambient and Fluid Temperature

5-60℃

Port Size

G1/4"

G3/8"

G1/2"

Drain Bore

G1/8"

G1/4"

G3/8"

Drain Status

Normal Open type

Working Medium

Compressed Air

Aluminum Automatic Drainer 0.15MPa - 2MPa For Pneumatic Automation System

High pressure Automatic drainer,auto drainer,auto discharger
