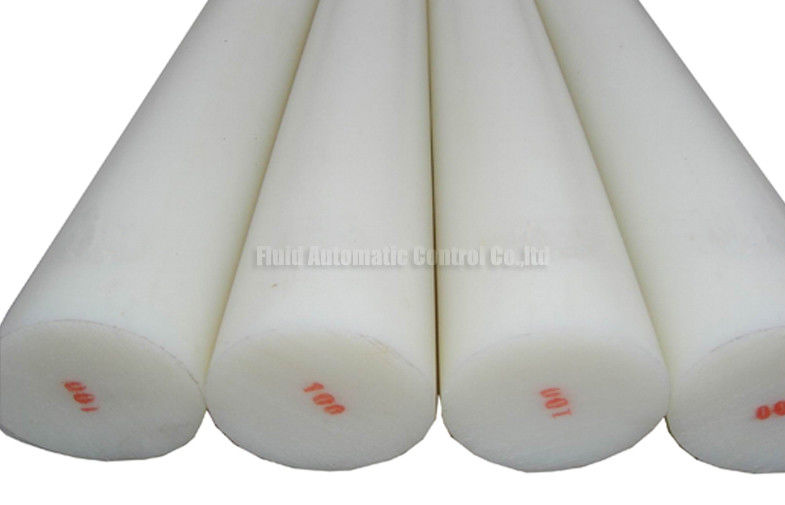

8mm - 200m Nature Colour Solid Bar Rod PA/PP/POM/ PVC / PTFE / PE Material

8mm - 200m Nature Colour Solid Bar Rod PA/PP/POM/ PVC / PTFE / PE Material

  • 8mm - 200m Nature Colour Solid Bar Rod PA/PP/POM/ PVC / PTFE / PE Material
8mm - 200m Nature Colour Solid Bar Rod PA/PP/POM/ PVC / PTFE / PE Material
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: PA6B-100-1-N
Payment & Shipping Terms:
Minimum Order Quantity: 10KG
Price: USD4--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 80000 Meters Per month
Contact Now
Detailed Product Description
Product Material: Solid Bar Rod Material: PA6,PA66,PA1010,PP,PE,POM,PVC,PTFE
Applications: Gears,couplings,impeller Pumps,oil Gasket Colours: Nature Colour
Bar Diameter: 8~200mm Length: 1M/PCS,2M/PCS,3M/PCS,4M/PCS,5M/PCS
High Light:

Air Tube

,

Pneumatic Plastic Pipe



8m - 200mm Nature Colour Solid Bar Rod PA/PP/POM/PVC / PTFE / PE Material

PA6,PA66,PA1010,PP,POM,PVC,PTFE,PE Material solid bar rod Dia.8~200mm, length 1~5Meters/PCS,e.g PA6B-100-1-N




Quick Detail:



* PA6,PA66,PA1010,PP,PE,POM,PVC,PTFE material solid bar
* Bar Diameter:8~200mm
* Length in 1M/PCS,2M/PCS,3M/PCS,4M/PCS,5M/PCS
* Colour standard nature colour
* Conform to ROHS environment protection requirement
* Good toughness,wear-resistance,oil-resistance
* Anti-vibrating,good bending strength,good tensile strength
* Low absorbency,size stability
* Non-toxic,tastless

Tag:NYLON BAR,PTFE ROD,PA ROD



Applications:



PA,PP,POM,PE,PVC,PTFE material Bar(Rod) engineering plastic used widely to replace steel,Iron,brass etc metal material,applicable in the occasions of wear-resistance parts,transmission parts,appliance parts,Vehicles parts,Chemical machanical parts  like bearings, gears,couplings, cam, impeller pumps, fan blades, oil gasket, valve parts, a variety of bush etc



Specifications:




PA6B

100

1

N

Type

Bar Diameter

Meters/PC

Colours

PA6B:  PA6 Material Bar(Rod)

8mm~200mm

1M

N:Nature

PA66B: PA66 Material Bar(Rod)

PA1010: PA1010 Material Bar(Rod)

2M

B:Black

PARB:Nylon Roughness surface Bar(Rod)

PPB:PP Material Bar

3M

O:Orange

POMB:POM Material Bar

PVCB:PVC Material Bar

4M

GN:Green

PTFEB:PTFE Material Bar

GY:GREY

PEB:PE Material Bar

5M




SPECIFICATION-PA6B




Bar: diameter (Ø8-200) Length: 1,000

Features: with decay, light weight, low noise, self-lubricating properties, contained in low light conditions, can be realized without lubrication oil, the density of small, light weight, copper was only 1 / 8, is the resistance of copper The 6-fold, and low noise, small coefficient of friction, the only alloy of Pap 1 / 3, the ability of the weak acid and weak base corrosion, mechanical properties and stability, cutting processing.

Disadvantages: water fast speed, strength and rigidity with the increase in the temperature lower.

Uses: widely used in the manufacture of a variety of industrial machinery, instruments, electrical components, such as bearings, gears, couplings, cam, impeller pumps, fan blades, oil gasket, valve parts, a variety of bush, and so on.

1 The appearance of physical properties: was milky white translucent, without mechanical impurities

Density

g/cm3

ASTM D-792

1.14

Shrinkage

1/8¡å,Dry



0.012

Flame retardant

1.5mm

UL 94

V-2

Humidity

Saturation

ASTM D570

9.50%

2 Mechanical Properties

Yield to tensile strength

23¡æ,Dry

ASTM D-638

79

Bending strength

23¡æ,Dry

ASTM D-795

110

Elongation at break

23¡æ,Dry

ASTM D-638

55

Rockwell hardness

Dry

¡¡

119

IZOD notched impact strength

23¡æ,Dry

ASTM D-256

60

3 Hot Properties

Heat distortion temperature

1.80Mpa,Dry

ASTM D-648

65¡æ

Melting Point

Dry

ASTM D-3418

220¡æ

Linear expansion coefficient

Dry

ASTM E-831

0.83¡Á10-4

4 Electrical Properties

Volume resistivity

¡¡

ASTM D-257

>1013

Dielectric strength

1.5mm,Dry

ASTM D-149

22
