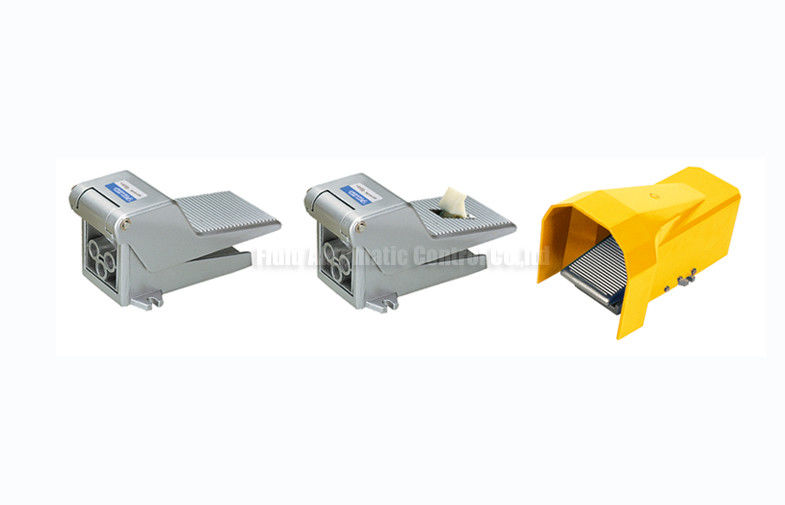

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover

  • G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover
G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: 4F210-08LG
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: USD8--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Body Material: Aluminum Alloy Function Type: 2 Position 5 Way
Motion Pattern: Direct Acting Port Size: G1/4
Product: Foot Paddle Valve Working Pressure: 0.15~0.9MPa
High Light:

Pneumatic Valve

,

Directional Control Valve

,

G1/4 Five Way Foot Pedal Valve





G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover

4F Series foot Paddle valve manual operated two position Five way port size G1/4 e.g 4F210-08LG with protect cover and Lock type





Quick Detail:



* 4F series Foot Paddle valve

* Two position Five Way

* With Lock type and Protect Cover type for option

* Easy operation,sensitive of Respond

* Stable design,long serive life





Applications:



4F series foot paddle valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover 0

Specifications:



ORDERING CODE

4F

210

08

L

Type

Body Code

Port Size

Type

4F:4F Series Two Position Five Way Foot Paddle valve

210:4F series Foot Paddle Valve

08:G1/4"

Blank:Standard Type

L:With Lock

G:With Protect Cover

LG:With Lock And Cover





SPECIFICATION

Model no

4F Series

Working Medium

Compressed 40 Micron Filtered Air

Body Material

Aluminum Alloy

Position And Way Numbers

Two Position-Five Way

Port Size

G1/4"

Motion Pattern

Direct Acting

Working Pressure

0.15~0.9MPa

Operating Temperature

0~60℃



4F210-08

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover 1

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover 2

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover 3

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover 4

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover 5

4F210-08G

G1/4" Direct Acting Pneumatic Foot Pedal Valve With Protect Cover 6

Pneumatic Valve,Foot Valve ,Manual Operated valve
