SC Tie-rod Pneumatic Air Cylinder , Linear Actuator Cylinder

SC Tie-rod Pneumatic Air Cylinder , Linear Actuator Cylinder

SC Tie-rod Pneumatic Air Cylinder , Linear Actuator Cylinder

Product Details:

Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: SC50-100-S-CA

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: USD5-
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 10000 Pieces Per month
Contact Now
Detailed Product Description
Bore Size: 32mm-200mm Motion Pattern: Tie-rod Double Acting
Operating Pressure Range: 0.1~1.0MPa Operating Speed: 50~800mm/s
Pressure Endurance: 1.5MPa Product Name: Pneumatic Air Cylinder
Working Medium: Filtered Compressed Air





SC Tie-rod Pneumatic Air Cylinder , Linear Actuator Cylinder

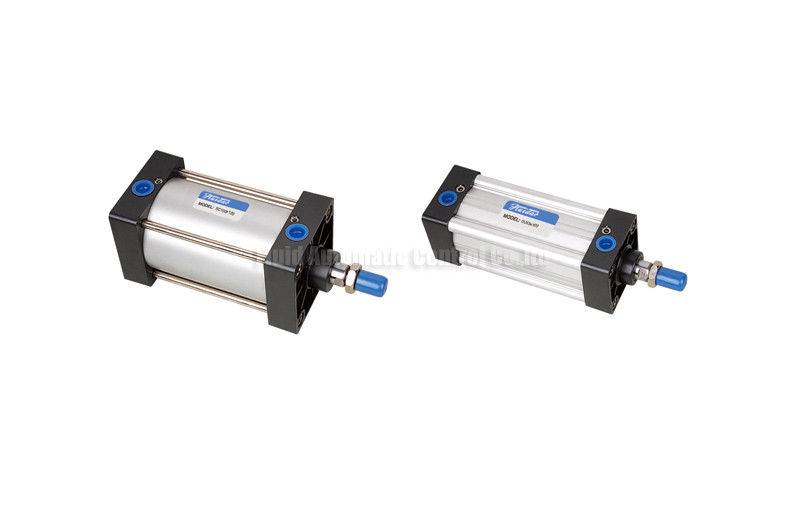

Airtac type round barrel with tie-rod double acting Pneumatic air cylinder Bore size 32mm-200mm e.g. SC50-100-S-CA  with magnet and adjustable air buffer #45steel chrome-plated piston rod





Quick Detail:





* Airtac interchange,Economical design,favorable price.

* SC Tie-rod stable design for heavy duty application

* End cover piston rod lock type available

* SU tie-rod hidden design for corrosion-proof

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* Bore size(mm)32,40,50,63,80,100,125,160,200,250,300,320,400

* Cylinder kits,repair kits and accessories available





Specifications:



ORDERING CODE

SC

50

100

25

S

LB

SC:Tie-rod standard type

Bore Size

Stroke

SCJ adjustable stroke

S:With Magnet

Mounting Accessories

32:32mm

Blank:Basic type

SU:Tie-rod hidden type

40:40mm

LB:Foot mounting front and rear

50:50mm

FA:Front flange

SCD:Double action      double piston rod

63:63mm

FB:Rear flange

80:80mm

SUJ adjustable stroke

Blank: Without magnet

CA:Single earring

100:100mm

CB:Double earring

SCJ:Double piston rod  stroke adjustable

125:125mm

TC:Middle turnion axial

160:160mm



200:200mm







SPECIFICATION

Bore size(mm)

32

40

50

63

80

100

125

160

200

working Medium

Filtered compressed air

Motion Pattern

Double action

Pressure Endurance

 1.5MPa

Operating pressure range

0.1~1.0MPa

Ambient  Temperature

 -5~70ºC

Buffer cushioning

Air adjustable buffer both ends

Operating  Speed

50~800mm/s

Buffer stroke

20

26mm

45mm

 Port size

G/18

G1/4

G1/4

G3/8

G3/8

G1/2

G1/2

G3/4

G3/4



SC Tie-rod Pneumatic Air Cylinder , Linear Actuator Cylinder



Bore size

A

A1

A2

B

C

D

E

F

G

H

I

J

K

32

140

187

182

47

93

28

32

15

27.5

22

17

6

M10×1.25

40

142

191

185

48

93

32

34

15

27.5

24

17

7

M12×1.25

50

150

207

196

57

93

38

42

15

27.5

32

23

8

M16×1.5

63

153

210

199

57

96

38

42

15

27.5

32

23

8

M16×1.5

80

183

258

243

75

108

47

54

21

33

40

26

10

M20×1.5

100

183

258

243

75

108

47

54

21

33

40

26

10

M20×1.5

125

226

/

/

104

122

55

70

34

33

54

40

10

M27×2

160

275

/

/

123

152

62

91

32

40

72

55

18

M36×2

200

331

/

/

167

166

80

112

55

40

72

55

18

M36×2

Bore size

L

M

N

O

P

Q

R

S

T

V

W

Z

32

M6×1

9.5

13.5

G1/8

3.5

7.5

7

45

33

12

12

21

40

M6×1

9.5

1.5

G1/4

6

8.2

9

50

37

16

14

21

50

M6×1

9.5

13.5

G1/4

8.5

8.2

9

62

47

20

17

23

63

M8×1.25

9.5

13.5

G3/8

7

8.2

8.5

75

56

20

17

23

80

M10×1.5

11.5

16.5

G3/8

10

9.5

14

94

70

25

22

29

100

M10×1.5

11.5

16.5

G1/2

11

9.5

14

112

84

25

22

29

125

M12×1.75

15.5

16.5

G1/2

/

/

/

140

110

32

27

/

160

M16×2

17.5

25

G1/2

/

/

/

180

140

40

36

/

200

M16×2

17.5

25

G3/4

/

/

/

220

175

40

36

/
