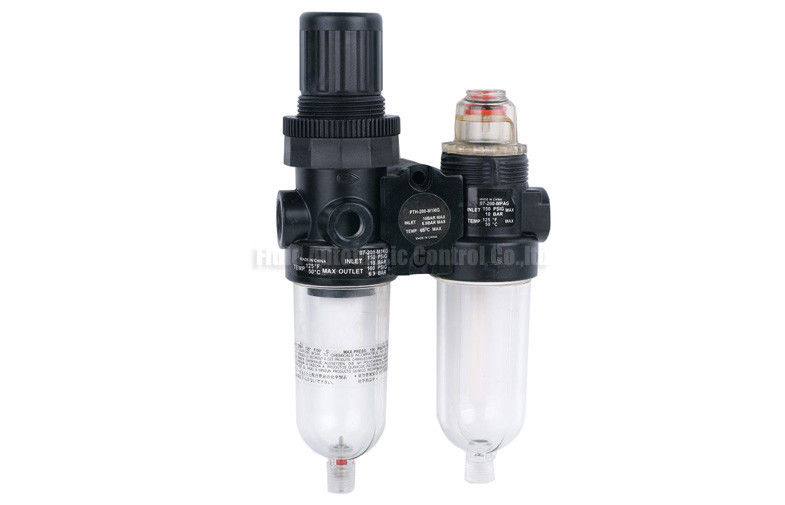

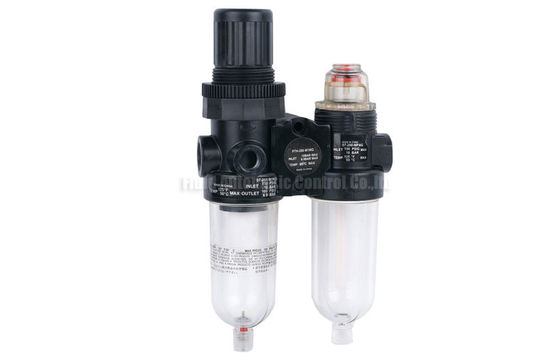

Norgen Type Air Filter Regulator

Norgen Type Air Filter Regulator

  • Norgen Type Air Filter Regulator
Norgen Type Air Filter Regulator
Product Details:
Place of Origin: Ningbo China(Mainland)
Brand Name: FLUIDAC or OEM
Certification: ISO9001
Model Number: NR07-02
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: USD2--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability: 20000 Pieces Per month
Contact Now
Detailed Product Description
Filtration Fineness: 40µ Working Pressure: 0.15~0.85 MPa
Working Temperature: -20~50℃ Port Size: N07 G1/8”,G1/4”.N72 G1/4”,G3/8”
Material: *Zinc Alloy Body Material Mounting Type: Pipe Mounting Or Bracket Support Mounting
Product Name: Air Filter Regulator
High Light:

Air Preparation Equipment Unit

,

Air Line Service Equipment

,

G3/8" Air Filter Regulator





Norgen Type G3/8"  Air Filter Regulator With Automatic Drainer

N Series Norgen type air service units including filter,regulator,lubricator and the combination group,port size G1/8”~G3/8” e.g NR07-02





Quick Detail:



* N Series air service units Norgen interchangeable

* Zinc alloy body material

* Modular design,different combination for flexible application

* Port size N07 Series G1/8”,G1/4”

* Port Size N72 Series G1/4”,G3/8”

* Pressure range adjustable 0.15~0.85MPa

* Filter fineness 40 Micron standard

* N72 Series with automatic drainer for option

 * Stable design, long service life cycle





Applications:



N series air service units installing between the air compressor and Pneumatic system equipment,close to pneumatic system equipment.

N series air preparation units including FR&L(Filter regulator and Lubricator),FR(Filter Regulator),F(Filter), R(Regulator), L(Lubricator).

N Series Air service units can maintain steady of the pneumatic system pressure by air regulator,avoid the sudden change of air source pressure to do harm to the pneumatic system components. Filter can be clean the air source,separate the water and other impurity from the air source,thus improve the qaulity of air medium effectly.Lubricator supply lubricant to the pneumatic system to keep system working smooth,significantly extend the service life cycle of pneumatic system components.



Specifications:



ORDERING CODE

NP1H/PTH

02

Type

Port Size

NP1H/PH:N07 Norgen Series Filter Regulator And Lubricator Two Combination Group

01:G1/8"

NFR07:N07 Norgen Series Filter Regulator

NF07:N07 Norgen Series Air Filter

NR07:N07 Norgen Series Air Regulator

02:G1/4"

NL07:N07 Norgen Series Air Lubricator



ORDERING CODE

NFC72

03

Type

Port Size

NFC72:N72 Norgen Series Filter Regulator And Lubricator Two Combination Group

02:G1/4"

NFR72:N72  Norgen Series Filter Regulator

NF72:N72 Norgen Series Air Filter

NR72:N72 Norgen Series Air Regulator

03:G3/8"

NL72:N72 Norgen Series Air Lubricator



SPECIFICATION



1,Working Medium:Air source

2,Body material:Zinc Alloy

3,Filter bowl and Lubricator bowl material:PC

4,Filter element material:Brass or plastic

5,Seal Material:NBR

6,Adjustabing knob:POM

7,Working pressure:0.15~0.85 MPa standard

8,Working Temperature:-20~50℃

9,Filtration fineness:40µ

10,Mounting type: Pipe mounting or bracket support mounting

11,Lubricator type:Oil volume adjustable during working

12,Port size:N07 G1/8”,G1/4”.N72 G1/4”,G3/8”

13,Drainage model: Semi-automatic drainer,N72 series Automatic optional

14,Design type:Modular



NP1H

Norgen Type Air Filter Regulator 0

Norgen Type Air Filter Regulator 1

NPTH

Norgen Type Air Filter Regulator 2

Norgen Type Air Filter Regulator 3

NR07

Norgen Type Air Filter Regulator 4

NFC72

Norgen Type Air Filter Regulator 5

Norgen Type Air Filter Regulator 6

Air preparation equipment units,air source treatment units,air-line service units
